SAP Knowledge Base Article - Public

1219409 - Suppressed or hidden section shrink in the design mode of the report in Crystal Reports

Symptom

  • Section shrink when suppressed.
  • Unable to edit sections of the report, since it is shrinked, and cannot be resized.
  • Section name disappears when suppressing or hiding the section in Crystal Reports.
  • How to avoid shrinking a suppressed or hidden section in Crystal Reports, and display it with a shade of gray instead?

Environment

  • SAP Crystal Reports 2013
  • SAP Crystal Reports 2016
  • SAP Crystal Reports 2020

Reproducing the Issue

  1. In Crystal Reports, create a report off any data source, or open an existing report.
  2. In the "design" mode, hide or suppress a section.

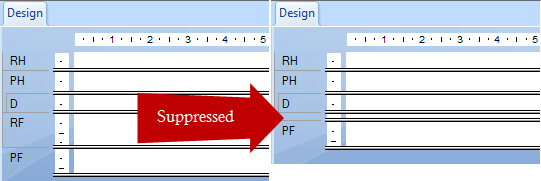

    Notice the section name disappears and the section shrink.

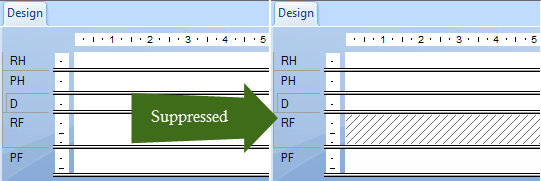

    Instead of being grayed out like the following screenshot:



Cause

  • The Crystal Reports Layout option: "Show Hidden Sections" is unchecked, and this is why it is shrinking the section name.

Resolution

  • To display the suppressed or hidden section in the design view of a report in Crystal Reports, check the Layout option: "Show Hidden Sections"

    1. In Crystal Reports, under the menu "File", select "Options..."

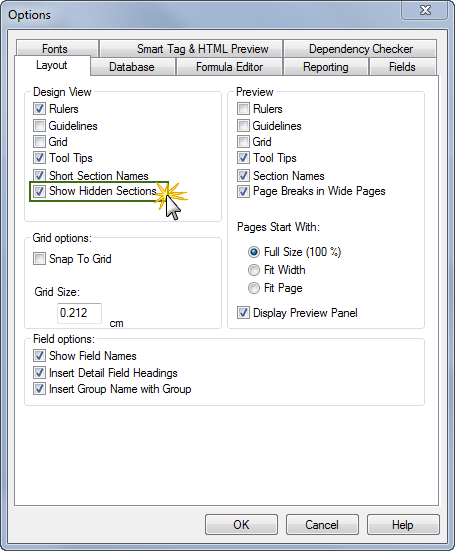

    2. In the "Options" window, under the tab "Layout", check the option: "Show Hidden Sections", and click "OK"


      Now, it will display the hidden or suppressed sections in the design view of the report.

Keywords

CR, suppress, hidden, section, disappear, collapse, gray out, unavailable , KBA , BI-RA-CR , Crystal Reports designer or Business View Manager , Problem

Product

SAP Crystal Reports 2013 ; SAP Crystal Reports 2016 ; SAP Crystal Reports 2020
