1682603 - Code128 UCC-SSCC Barcode does not display in Crystal Reports 2008

Crystal Reports preview displays an empty  box instead of a barcode

Crystal Reports 2008

Azalea 128 barcode Toolset

1. Create a formula with at least 17 numeric characters
2. Place the formula in Report Header
3. Right-click the formula and select "change to Barcode"

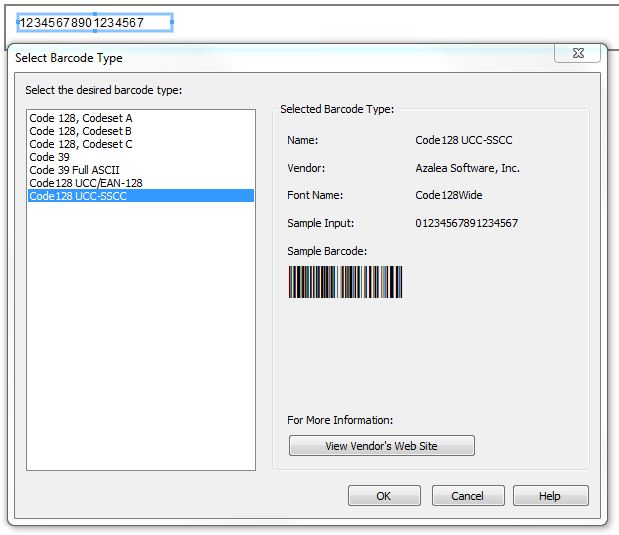

4. Select Code 128 UCC-SSCC (See screenshot below)
5. Click OK

It is a regression of the Azalea Barcode engine version 6.0 (u25azalea.dll)

1. Navigate to the following location:

C:\Program Files\Business Objects\BusinessObjects Enterprise 12.0\win32_x86 for 32 bit Windows

or

C:\Program Files (x86)\Business Objects\BusinessObjects Enterprise 12.0\win32_x86 for 64 bit Windows

1. Rename the file u25azalea.dll to u25azalea.old
2. Unzip this SAP Note attachment.
3. Copy the unzipped u25azalea.dll to the same location.
4. Restart Crystal Reports

http://www.azalea.com/code-128/crystal-reports/

font, barcode 128, blank, incorrect  , KBA , BI-RA-CR , Crystal Reports designer or Business View Manager , Problem
