1976367 - Edit Join Expression shows incorrect data types for columns - ESP Studio

• When using the Studio Visual editor to add or edit a join expression, the editor incorrectly displays the data type for all columns as integer.

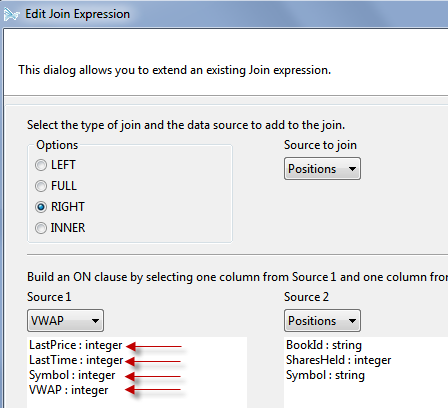

• For example, follow the first seven steps in Creating a Join as a Simple Query from the SAP Sybase Event Stream Processor 5.1 SP04 -> Getting Started Guide -> Building a Simple Project. When double-clicking the second join element to open the Edit Join Expression dialog, the data types for all of the columns from the VWAP window are incorrectly displayed as integer (see the red arrows in the screenshot below):

• Instead, the data types for these columns should be correctly displayed as follows:
• LastPrice: float.
• LastTime: date.
• Symbol: string.
• VWAP: float.

SAP Sybase Event Stream Processor 5.1 SP04 (and above, until the issue is fixed).

KBA , BC-SYB-ESP , Sybase ESP (Event Stream Processor) , Problem
