2002903 - Some objects fail with No SAX Parser is available error during UMT migration

• During migration with the upgrade management tool (UMT), some of the objects, mostly seen of the type " universe connections " fail with an "No SAX Parser is available" error.
• While several other objects in the same batch migrate successfully from the BOE XI 3.1 system to BI 4.0 SP6 system, universe connections seem to fail with this error
• The issue is seen to occurs on one of the BI servers running the UMT while it seems to be working on another BI server.

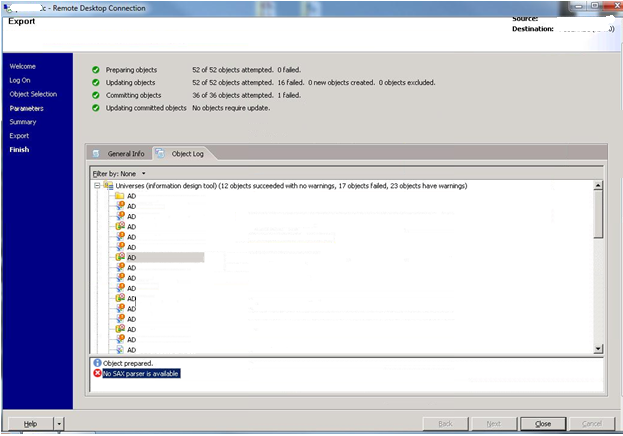

• The object log simply indicates the failure detail as "No SAX parser is available" as shown in the snapshot below -


• The UMT traces indicate the following error for each failure -

  com.crystaldecisions.xml.serialization.XMLObjectSerializer||No SAX parser is available
  org.xml.sax.SAXException: Can't create default XMLReader; is system property org.xml.sax.driver set?
   at org.xml.sax.helpers.XMLReaderFactory.createXMLReader(XMLReaderFactory.java:156)
   at com.crystaldecisions.xml.serialization.XMLObjectSerializer.<init>(XMLObjectSerializer.java:101)
   at com.crystaldecisions.xml.serialization.XMLObjectSerializer.<init>(XMLObjectSerializer.java:65)
   at com.businessobjects.sdk.plugin.desktop.DataConnection.internal.DataConnection.getConnectionAttributesXMLString(DataConnection.java:88)
   at com.businessobjects.sdk.plugin.desktop.DataConnection.internal.DataConnection.prepareForSerialization(DataConnection.java:125)
   at com.crystaldecisions.sdk.occa.infostore.internal.InfoObject.writeReplace(InfoObject.java:2628)
   at sun.reflect.GeneratedMethodAccessor2.invoke(Unknown Source)
   at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:25)
   at java.lang.reflect.Method.invoke(Method.java:597)
   at java.io.ObjectStreamClass.invokeWriteReplace(ObjectStreamClass.java:1027)
   at java.io.ObjectOutputStream.writeObject0(ObjectOutputStream.java:1115)
   at java.io.ObjectOutputStream.writeObject(ObjectOutputStream.java:330)
   at com.businessobjects.sdk.biar.om.internal.db.ObjectRecord.toByteArray(ObjectRecord.java:361)
   at com.businessobjects.sdk.biar.om.internal.db.ObjectRecord.setObject(ObjectRecord.java:155)
   at com.businessobjects.sdk.biar.om.internal.db.AnnotatedObjectStore.newRecord(AnnotatedObjectStore.java:700)
   at com.businessobjects.sdk.biar.om.internal.db.AnnotatedObjectStore.newRecord(AnnotatedObjectStore.java:684)
   at com.businessobjects.sdk.biar.om.internal.ObjectManager.packRecord(ObjectManager.java:628)
   at com.businessobjects.sdk.biar.om.internal.ObjectManager.update(ObjectManager.java:548)
   at com.businessobjects.sdk.biar.om.internal.ObjectManagerAdaptor.update(ObjectManagerAdaptor.java:316)
   at com.businessobjects.sdk.plugin.desktop.common.internal.migration.MigrationDestination.update(MigrationDestination.java:122)
   at com.businessobjects.migration.engine.internal.MigrationEngine$WorkerFactory$Worker.performUpdate(MigrationEngine.java:801)
   at com.businessobjects.migration.engine.internal.MigrationEngine$WorkerFactory$Worker.performUpdate(MigrationEngine.java:687)
   at com.businessobjects.migration.engine.internal.MigrationEngine$WorkerFactory$Worker.performUpdate(MigrationEngine.java:677)
   at com.businessobjects.migration.engine.internal.scheduling.Scheduler$Engine.run(Scheduler.java:296)
   at java.util.concurrent.ThreadPoolExecutor$Worker.runTask(ThreadPoolExecutor.java:886)
   at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:908)
   at java.lang.Thread.run(Thread.java:662)
• The UMT generated .CSV file does not have any significant log entries on the failed objects

SAP BusinessObjects BI Platform 4 and above  [ Upgrade Management Tool ]
Windows Server 2008 R2

BI 4.0 4.1 4.x  3.1 UMT upgrade migration move universe conn connections error failure fail , KBA , BI-BIP-UMT , Upgrade management tool , BI-BIP-INS , Installation, Updates, Upgrade, Patching , Problem
