SAP Knowledge Base Article - Public

2224588 - Compa Ratio and/or Range Penetration not calculating, Conversion not setup or FTE is Initial


Compa Ratio and Range Penetration displays a warning message:

Error: Currency Conversion between ZZZ and YYY has not been setup - Please see an example in the image below:

"Image/data in this KBA is from SAP internal systems, sample data, or demo systems. Any resemblance to real data is purely coincidental."



Error: The key figures could not be calculated as the FTE is initial


  • Employee Central
  • EC
  • EC2.0
  • BizX

Reproducing the Issue

Navigating to compensation informaiton displays warning message instead of calculated Compa Ratio and/or Range Penetration


New logic released caused the system to take into account the FTE assigned to the employee even if it is not configured for calculations.

This can occur if the FTE field is set to view=none (not visible) or is not used for calculation ( value of 1)


A switch has been added to modify behavior.

If you don't want to see the error message and you want to have the Compa Ratio and Range Penetration calculated without the check for an FTE value, do the following:

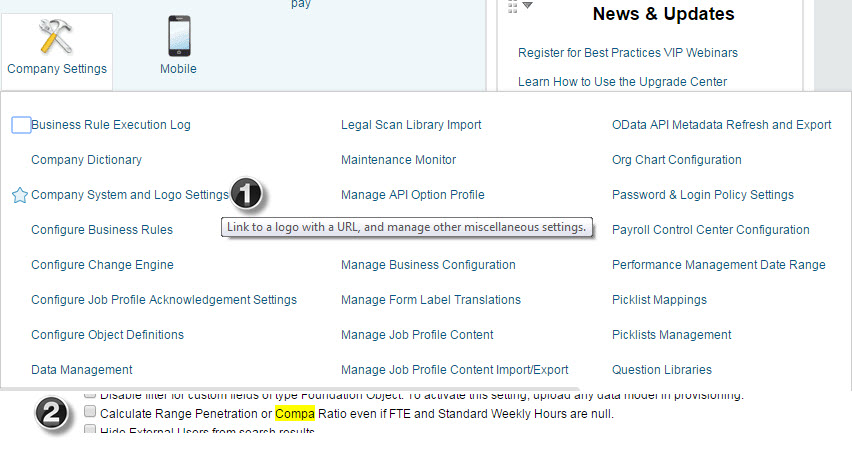

1. Navigate to Admin Center

2. Then Company System and Logo Settings

3. Now enable the flag "Calculate Range Penetration and Compa Ratio even if FTE is null"


Compa Ratio, Range Penetration, Currency conversion, Calculation , KBA , LOD-SF-EC-CMP-CAL , Calculated - Pay Comp Groups, Compa/ Range & Charts , Product Enhancement


SAP SuccessFactors HXM Core all versions
