2242275 - Connect failed: Wrong database ID or Database SID cannot be empty in SWPM or invalid database name

Case 1:

You want to install an Additional Application server to an existing SAP system running on a HANA database. During SWPM dialog phase, the Database ID is determined wrong but the according field cannot be changed leading to a subsequent failure in the connection to the database.
Sapinst throws an error: "Connect failed: Wrong database ID! Given: <wrong DBSID> Found: <correct DBSID>"

Case 2:

You want to perform a system refresh using a HANA backup of a different source system. During the target installation when it prepares to restore the backup, it fails stating

invalid database name <sid>

and as in Case 1, you see the incorrect DBSID and cannot edit it.

Case 3:

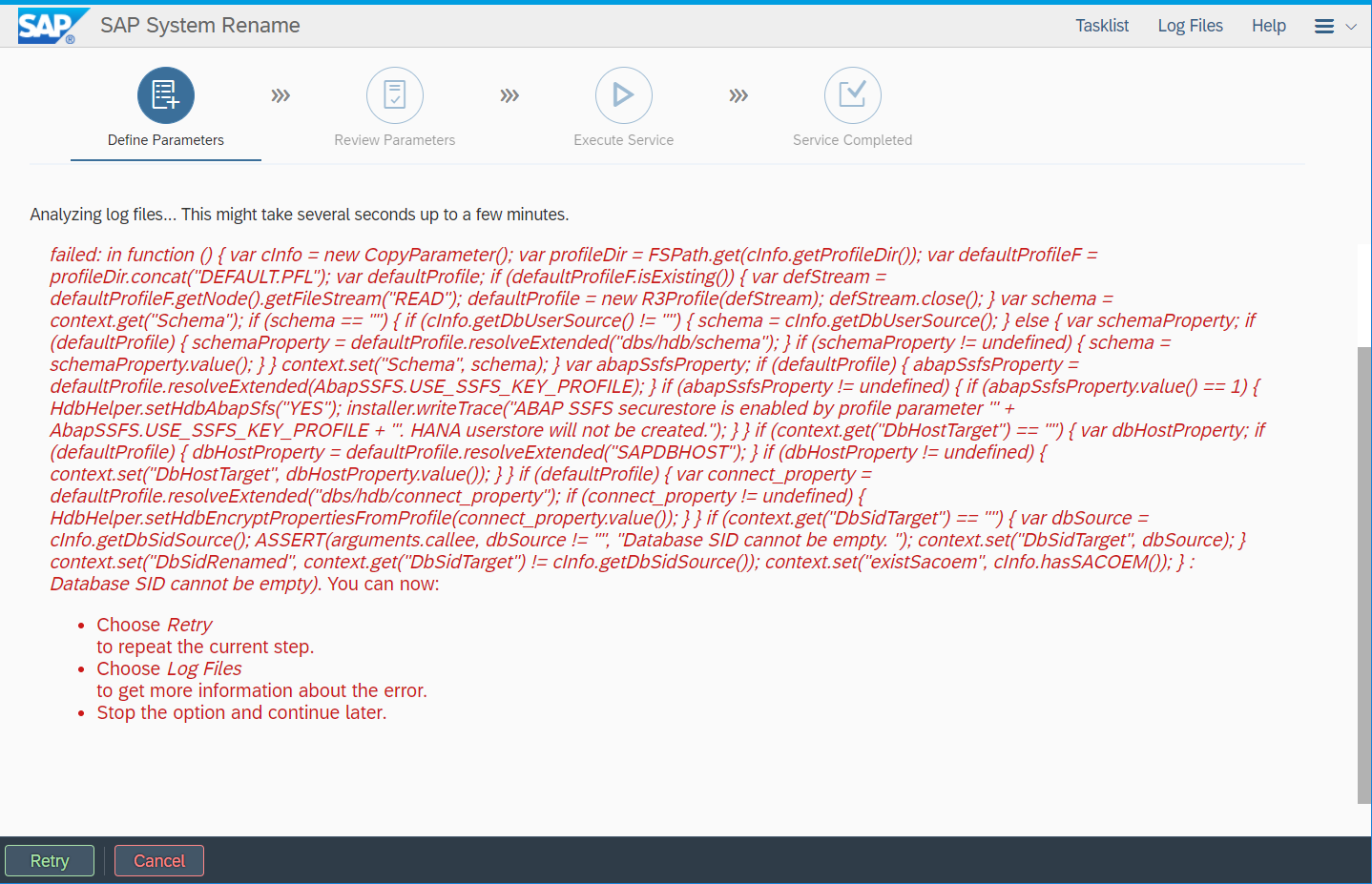

You want to rename an existing SAP system running on a HANA database. During SWPM Define parameters phase, you encounter an error:

"Database SID cannot be empty"

• Any Operating system
• SAP system based on SAP NetWeaver 7.1 and higher
• HANA Database
• The name of the SAP system (SID) is different to the name of the database HANA (DBSID)

j2ee, hdb, HANA, sapinst, SWPM, Database ID, Database SID, rename, empty , KBA , BC-INS-SWPM , Installation with Software Provisioning Manager , HAN-LM-INS-SAP , Installation of SAP Systems on HANA , BC-INS-SRN , System Rename Utility , Problem
