2255002 - Extractor Configuration (Web Service) fails with error: 'The host of endpoint URL ..... was not found.

After update the SAP Solution Manager 7.10 to SP14, there is a extractor called 'CONFIGURATION (WEB SERVICE)' for JAVA systems with release SAP Netweaver J2EE 7.0. The extractor CONFIGURATION (WEB SERVICE) then fails with error:

• Exception while accessing Web Service - cause: Service call exception, nested exception is: java.rmi.RemoteException: The host of endpoint URL <url_of_webservice> was not found. Check if the WS
• Exception while accessing Web Service - cause: Service call exception; nested exception is:  java.net.ConnectException: Connection refused: connect

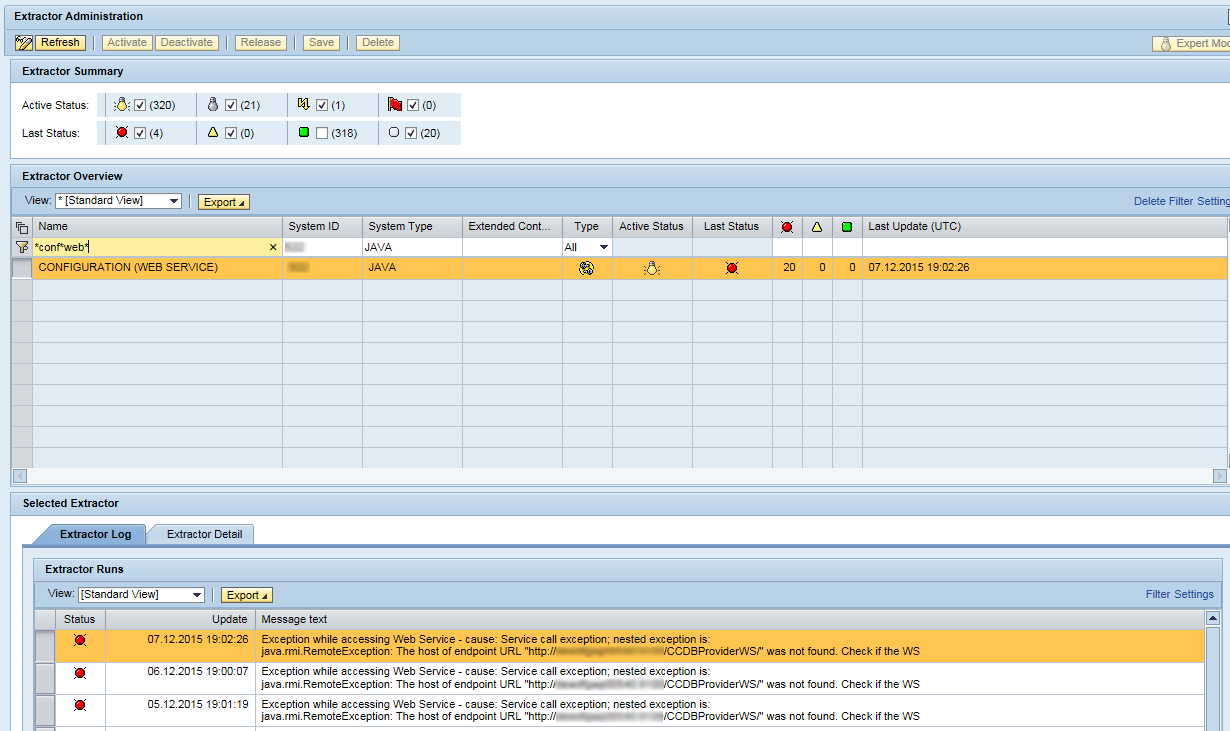

The following picture describes the issue:

• SAP Solution Manager 7.10 SP14
• SAP Solution Manager Diagnostics

CCDB WebService Protocol CCDB WebService Host CCDB WebService Port CCDB WebService Path CCDB WebService User CCDB WebService Password CCDB WebService Authentication Mode CCDBProviderWS CCDBProviderWSConf CONFIGURATION (WEB SERVICE) CONFIGURATION WEB SERVICE Call CCDB Provider WebService /CCDBProviderWS/CCDBProviderWSConf?style=document
Error Exception while accessing Web Service
[EXCEPTION]
java.rmi.RemoteException: Service call exception; nested exception is:
java.net.ConnectException: Connection refused (port 53000 to address 127.0.0.1 (LOOPBACK))
at com.sap.smd.agent.wsclients.ccdb.CCDBProviderWSConfBindingStub.getWebServiceStore(CCDBProviderWSConfBindingStub.java:85)
at com.sap.smd.agent.wsclients.ccdb.CCDBProviderWSConfBindingStub.getWebServiceStore(CCDBProviderWSConfBindingStub.java:94)
at com.sap.smd.agent.plugins.datacollector.ws.impl.WebServiceClientCCDBImpl.test(WebServiceClientCCDBImpl.java:176)
at com.sap.smd.agent.plugins.datacollector.ws.WebServiceCollect.<init>(WebServiceCollect.java:87)
at com.sap.smd.agent.plugins.datacollector.ws.WebServiceService.init(WebServiceService.java:57)
at com.sap.smd.agent.plugins.datacollector.ws.WebServiceServicep4_Skel.dispatch(WebServiceServicep4_Skel.java:98)
at com.sap.engine.services.rmi_p4.DispatchImpl._runInternal(DispatchImpl.java:337)
at com.sap.engine.services.rmi_p4.DispatchImpl._run(DispatchImpl.java:201)
at com.sap.engine.services.rmi_p4.DispatchImpl.run(DispatchImpl.java:728)
at java.lang.Thread.run(Thread.java:763)
Caused by: java.net.ConnectException: Connection refused (port 53000 to address 127.0.0.1 (LOOPBACK)) , KBA , SV-SMG-DIA-APP-CA , Change Analysis + Reporting, Configuration Validation, CCDB , SV-SMG-DIA-SRV-EFW , Extractor Framework , Problem
