2277223 - Maximal number of rfc connections reached in PI ESR

Symptom

  • When attempting to import an IDoc or RFC object in the Process Integration (PI) Enterprise Services Repository (ESR) the error below occurs:

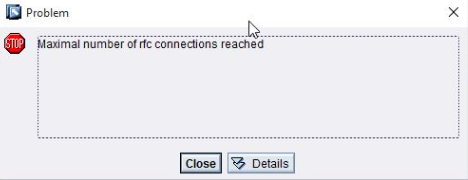

    Maximal number of rfc connections reached

    Maximal error.PNG

  • In the defaultTrace, an entry similar to below is visible:
    Error#1#/Applications/ExchangeInfrastructure/Repository#Plain###JCO-Exception during login to R/3 system (group=116, key=RFC_ERROR_RESOURCE)
    Thrown:
    com.sap.mw.jco.JCO$Exception: Maximal number of rfc connections reached
    at com.sap.mw.jco.MiddlewareJRfc.generateJCoException(MiddlewareJRfc.java:211)
    at com.sap.mw.jco.MiddlewareJRfc$Client.connect(MiddlewareJRfc.java:1295)
    at com.sap.mw.jco.JCO$Client.connect(JCO.java:3671)
    at com.sap.aii.upload.sap.SAPConnection.connect(SAPConnection.java:39)
    at com.sap.aii.upload.sap.SAPConnection.<init>(SAPConnection.java:65)
    at com.sap.aii.upload.sap.SAPUploadSource.<init>(SAPUploadSource.java:149)
    at com.sap.aii.ibrep.sbeans.upload.UploadServiceBean.connect(UploadServiceBean.java:45)
    at com.sap.aii.ibrep.sbeans.upload.UploadServiceBean.openSAPSource(UploadServiceBean.java:22)
    at com.sap.aii.ibrep.sbeans.upload.UploadServiceRemoteObjectImpl0_0.openSAPSource(UploadServiceRemoteObjectImpl0_0.java:210)
    at com.sap.aii.ibrep.sbeans.upload.UploadServiceRemoteObjectImpl0_0p4_Skel.dispatch(UploadServiceRemoteObjectImpl0_0p4_Skel.java:184)
    at com.sap.engine.services.rmi_p4.DispatchImpl._runInternal(DispatchImpl.java:217)
    at com.sap.engine.services.rmi_p4.DispatchImpl._run(DispatchImpl.java:167)
    at com.sap.engine.services.rmi_p4.server.P4SessionProcessor.request(P4SessionProcessor.java:157)
    at com.sap.engine.core.service630.context.cluster.session.ApplicationSessionMessageListener.process(ApplicationSessionMessageListener.java:55)
    at com.sap.engine.core.cluster.impl6.session.MessageRunner.run(MessageRunner.java:69)
    at com.sap.engine.core.thread.impl3.ActionObject.run(ActionObject.java:21)
    at java.security.AccessController.doPrivileged(Native Method)
    at com.sap.engine.core.thread.impl3.SingleThread.execute(SingleThread.java:184)
    at com.sap.engine.core.thread.impl3.SingleThread.run(SingleThread.java:161)
  • A similar error may also be visible in the dev_jrfc trace file


Read more...

Environment

  • SAP NetWeaver 7.0
  • SAP enhancement package 1 for SAP NetWeaver 7.0
  • SAP enhancement package 2 for SAP NetWeaver 7.0
  • SAP enhancement package 3 for SAP NetWeaver 7.0
  • SAP NetWeaver Process Integration 7.1
  • SAP enhancement package 1 for SAP NetWeaver Process Integration 7.1

Product

SAP NetWeaver 7.0 ; SAP NetWeaver Process Integration 7.1 ; SAP enhancement package 1 for SAP NetWeaver 7.0 ; SAP enhancement package 1 for SAP NetWeaver Process Integration 7.1 ; SAP enhancement package 2 for SAP NetWeaver 7.0 ; SAP enhancement package 3 for SAP NetWeaver 7.0

Keywords

Process Integration 7.0, PI 7.0, PI 7.01, PI 7.02, Process Integration 7.10, PI 7.10, Process Integration 7.11, PI 7.11, max no of 100 conversations exceeded, SM59, LCRSAPRFC, SAPSLDAPI, Java, RFC Providers , KBA , BC-XI-IBD , Integration Builder - Design , BC-MID-CON-JCO , Java-Connector , Problem
