2312762 - Design Studio login to clustered BI platform fails with 400 Bad Request errors

Using Design Studio 1.5/1/6 and login to the BI platform 4.1 SP7 cluster on a secure (SSL) loadbalanced deployment which comprises a loadbalancer and an IIS web server, the design studio login fails with below errors.

• The deployment comprises of clustered and distributed BI 4.1 SP7 environment with Tomcat web tier and fronted by IIS web server and a standard loadbalancer with SSL implemented.
• The server side backend processes are all running (Analysis Application designer) and CMC shows the design studio runtime.
• With Design Studio, login with https loadbalancer URL (https://loadbalancer_FQDN/dswsbobje/services/Session): Failed with below error -

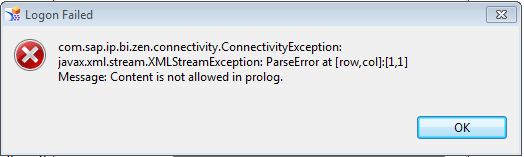

• com.sap.ip.bi.zen.connectivity.ConnectivityException: javax.xml.stream.XMLStreamException: ParseError at [row,col]:[1,1] Message: Content is not allowed in prolog.



• If you skip on error window and login the second time or if you login without SSL in loadbalancer (http://loadbalancer_FQDN/dswsbobje/services/Session), following error is thrown-

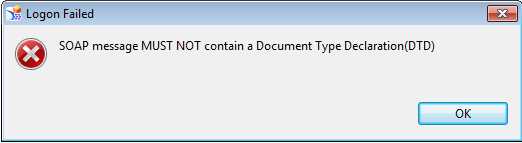

  com.sap.ip.bi.zen.connectivity.ConnectivityException: SOAP message MUST NOT contain a Document Type Declaration(DTD)



• The same errors as above are thrown by design studio if we Login using direct Tomcat server HTTP / HTTPS URLS which failed with same error as before.

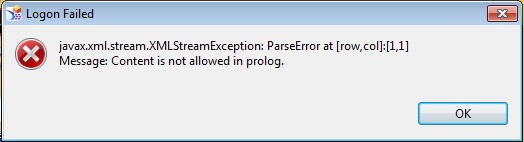

• After applying SAP Kbase 1985014 - Test Connection returns "Error: SOAP message MUST NOT contain a document Type Declaration(DTD)" in CR for Enterprise via HTTPS, error changed to below with https





• Using the same Design studio, we can login to another standalone environment which also uses a loadbalancer and IIS redirection.
• DS Support logs show following error details:
  com.sap.ip.bi.zen.connectivity.ConnectivityException: javax.xml.stream.XMLStreamException: ParseError at [row,col]:[1,1] Message: Content is not allowed in prolog.
  at com.sap.ip.bi.zen.backends.bip.BiPlatformSystem.createConnectivityException(BiPlatformSystem.java:879)
  at com.sap.ip.bi.zen.backends.bip.BiPlatformSystem.logon(BiPlatformSystem.java:564)
• HTTP traces using Fiddler or wireshar show following error :



  REQUEST from Design Studio

  POST /dswsbobje/services/BIPlatform HTTP/1.1
  Content-Type: text/xml; charset=UTF-8
  Cookie: JSESSIONID=xxxxxxxxxxxxxxxyyyyyyyyyyy; Path=/dswsbobje/; HttpOnly=null
  SOAPAction: "http://biplatform.dsws.businessobjects.com/2007/06/01/Get"
  User-Agent: Axis2
  Host: FQDN.of.host.com
  Transfer-Encoding: chunked

  60c
  <?xml version="1.0" encoding="UTF-8"?><soapenv:Envelope xmlns:soapenv=" http://schemas.xmlsoap.org/soap/envelope/"><soapenv:Body><Get xmlns="http://biplatform.dsws.businessobjects.com/2007/06/01"><SessionID xmlns="http://biplatform.dsws.businessobjects.com/2007/06/01">xxxxxxxxxxxxxxxxxyyyyyyyyyyyyyyyyyyyyyyyzzzzzzzzzzzzzzzzzzzzzzzzzzzz2CSI_TENANT_ID%3D0|en|America/Los_Angeles|ANALYSIS AAD 1.0 </SessionID><Path xmlns="http://biplatform.dsws.businessobjects.com/2007/06/01">query://{SELECT SI_NAME FROM CI_INFOOBJECTS WHERE SI_ID='23'}</Path><Options xmlns="http://biplatform.dsws.businessobjects.com/2007/06/01"><ExportDependencies xmlns="http://biplatform.dsws.businessobjects.com/2007/06/01">false</ExportDependencies></Options></Get></soapenv:Body></soapenv:Envelope>
  0


  Response from Server

  HTTP/1.1 400 Bad Request
  Content-Type: text/html
  Server: Microsoft-IIS/7.5
  X-Powered-By: ASP.NET
  Date: Tue, 26 Apr 2016 16:08:37 GMT
  Content-Length: 11

  Bad Request





Read more...

SAP BusinessObjects BI Platform 4.1 SP7
SAP Design Studio 1.6
Loadbalanced deployment with Apache Tomcat 7 Web tier.
IIS 7 - Tomcat 7 Redirector / AJP 1.3





SAP BusinessObjects Business Intelligence platform 4.0 ; SAP BusinessObjects Business Intelligence platform 4.1 ; SAP BusinessObjects Business Intelligence platform 4.2 ; SAP BusinessObjects Design Studio 1.5 ; SAP BusinessObjects Design Studio 1.6

Design studio BIP 400 Bad request IIS Tomcat redirect isapi redirect , KBA , bad_request , iis , design_studio , isapi , tomcat , ds , BI-RA-AD-BIP , Business Intelligence Platform Integration , BI-BIP-DEP , Webapp Deployment, Networking, Vulnerabilities, Webservices , Problem
