2347735 - How to generate QR Code in Crystal Reports for Enterprise? [VIDEO]


  • How to create QR code?
  • Does Crystal Reports for Enterprise support QR code?
  • How to convert numeric or text field that is added to a report to a QR code in Crystal Reports for Enterprise?
  • Note: Images and data in this SAP Knowledge Base Article is from SAP internal systems, sample data, or demo systems. Any resemblance to real data is purely coincidental.


  • SAP Crystal Reports for Enterprise 4.2
  • SAP Crystal Reports for Enterprise 4.3


  • Crystal Reports for Enterprise supports QR Code.
  • To create a QR code in Crystal Reports for Enterprise:
    1. In Crystal Reports for Enterprise, create a report based on any data source, or open a report.
    2. Right click on the field you want to convert to a QR Code, and select "Change to QRCode/Barcode"
    3. In the window "Change to QRCode/Barcode", for the option "Choose Format", select in the drop-down list the barcode: "QR Code"
    4. Check the option: "Can Grow".   ( This is to prevent the truncation of the barcode, if the size of the cell is too small. )
    5. Click "OK"
    6. Now, the field will display a QR Code.

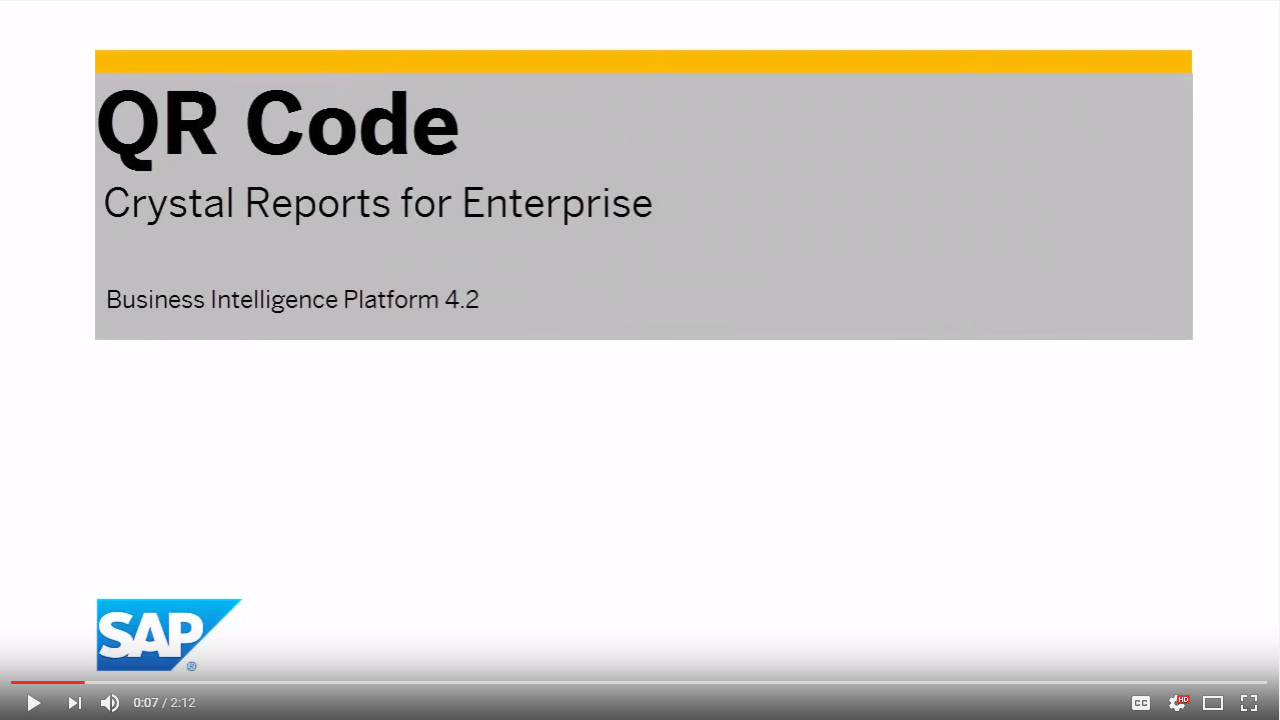

  • Please refer the video below for detailed steps:
