SAP Knowledge Base Article - Public

2394761 - Error: 'Logon failed. HY000:A connection attempt failed...' when attempting to connect to from Crystal Reports


  • Logon failed.
  • Unable to connect to Salesforce.
  • Failed to refresh a report based off

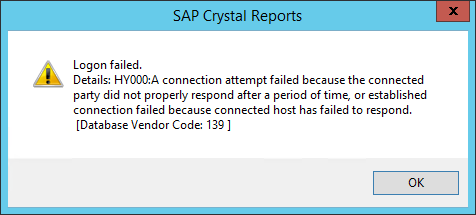

  • When attempting to logon to from Crystal Reports, it fails with the error:
       'Logon failed.
        Details: HY000:A connection attempt failed because the connected
        party did not properly respond after a period of time, or established
        connection failed because connected host has failed to respond.
        [Database Vendor Code: 139 ]'
      Sforce Error - 09.png
  • Note: Images and data in this SAP Knowledge Base Article is from SAP internal systems, sample data, or demo systems. Any resemblance to real data is purely coincidental.


  • SAP Crystal Reports 2013
  • SAP Crystal Reports 2016

Reproducing the Issue

  1. In Crystal Reports, create a new report.
  2. In the Database Expert window, double click on the Salesforce connection.
  3. Enter the user name and password.
    It fails to logon.


  • It fails because there is a Proxy configured on the network to connect to the Internet, and the proxy setting is not added to the connection.


  • To add the proxy setting to the connection for Crystal Reports:
    1. Navigate to the location of CRConfig.xml file, which is located by default at:
        C:\Program Files (x86)\SAP BusinessObjects\SAP BusinessObjects Enterprise XI 4.0\java\
    2. Open the CRConfig.xml file in text editor like Notepad.
    3. Add the following lines to the <SForce> section of the XML file, with your proxy settings:
           <ProxyAddress> Add the proxy name here </ProxyAddress>
           <ProxyPort> Add the proxy port number here </ProxyPort>
      Below is an example of how the xml file will look after adding the proxy setting for the connection,
      if the proxy name is: MyProxy, and the port number: 1234



CR, SForce , KBA , BI-RA-CR , Crystal Reports designer or Business View Manager , Problem


SAP Crystal Reports 2013 ; SAP Crystal Reports 2016
