SAP Knowledge Base Article - Preview

2419489 - HTTP 500 when Upload to SAP Support Portal on LMDB

Symptom

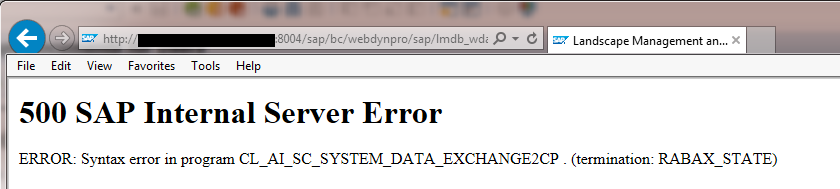

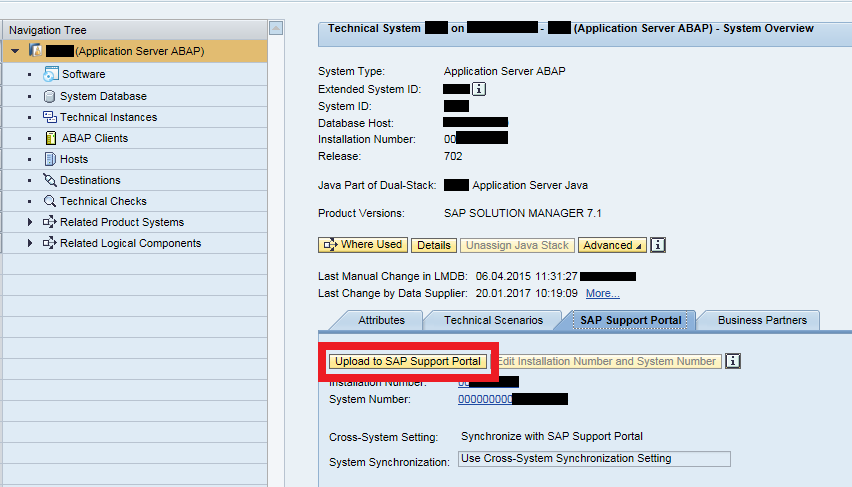

  • When manually uploading system data to SAP, HTTP500 error on class CL_AI_SC_SYSTEM_DATA_EXCHANGE2CP is displayed and system data is not updated on SAP:



500 SAP Internal Server Error
ERROR: Syntax error in program CL_AI_SC_SYSTEM_DATA_EXCHANGE2CP . (termination: RABAX_STATE)

  • A dump is issued and can be seen on ST22 with the following information:
Category               ABAP Programming Error
Runtime Errors         SYNTAX_ERROR
ABAP Program           CL_AI_SC_SYSTEM_DATA_EXCHANGE2CP
Application Component  SV-SMG-SVC

Short text
    Syntax error in program "CL_AI_SC_SYSTEM_DATA_EXCHANGE2CP ".

What happened?
    Error in the ABAP Application Program

    The current ABAP program "CL_LMDB_API_OSS_SYNC_OUTBOUND=CP" had to be
     terminated because it has
    come across a statement that unfortunately cannot be executed.

    The following syntax error occurred in program
     "CL_AI_SC_SYSTEM_DATA_EXCHANGE2CP " in include
     "CL_AI_SC_SYSTEM_DATA_EXCHANGE2CM005 " in
    line 70:
    "The data object "DATABASE-HOST" does not have a component called "MANU"
    "FACTURER"."

Error analysis
    The following syntax error was found in the program
     CL_AI_SC_SYSTEM_DATA_EXCHANGE2CP :
    "The data object "DATABASE-HOST" does not have a component called "MANU"
    "FACTURER"."

Information on where terminated
    Termination occurred in the ABAP program "CL_LMDB_API_OSS_SYNC_OUTBOUND=CP" -
     in "UPLOAD_SYSTEM_DATA_TO_OSS".
    The main program was "SAPMHTTP ".

    In the source code you have the termination point in line 21
    of the (Include) program "CL_LMDB_API_OSS_SYNC_OUTBOUND=CM003".

Source Code Extract (Source code has changed)
Line SourceCde
    1 METHOD upload_system_data_to_oss.
    2
    3  DATA: lo_oss_data_collector TYPE REF TO cl_lmdb_oss_data_collector.
    4  DATA: lo_oss_data_uploader  TYPE REF TO cl_ai_sc_system_data_exchange2.
    5
...
   20
>>>>>      CREATE OBJECT lo_oss_data_uploader.

Image/data in this KBA is from SAP internal systems, sample data, or demo systems. Any resemblance to real data is purely coincidental.


Read more...

Environment

SAP Solution Manager 7.1

Product

SAP Solution Manager 7.1

Keywords

SYNTAX_ERROR CL_AI_SC_SYSTEM_DATA_EXCHANGE2CP DATABASE-HOST CL_LMDB_OSS_SYSTEM_DATA_OBJ SEND_SYSTEM_DATA , KBA , SV-SMG-LDB , Landscape Management Database (LMDB) , SV-SMG-INS-CFG-SYP , System Preparation , Problem
