2442249 - Importing of MDF object file with special characters (Non-UTF-8 characters) is failing

Symptom

Importing of MDF object file with special characters (Non-UTF-8 characters), or importing MDF Object zip file (attachment import) is failing with either the following errors:

  • "An error has occurred while trying to process your request. If the problem persists, please contact our technical support."
  • "Full exception:com.successfactors.jobscheduler.ScheduledJobExecutionException: java.lang.IllegalArgumentException: MALFORMED"
  • Cannot find field: [OPERATOR] in object XXX...."
  • Failed to handle upload (error: 0).

Image/data in this KBA is from SAP internal systems, sample data, or demo systems. Any resemblance to real data is purely coincidental.

Environment

  • SAP SuccessFactors HXM Suite
  • Metadata Framework (MDF)

Reproducing the Issue

  1. Admin Center > Import and Export Data > Import Data;
  2. Choose the file > For example, the file name is Çrateur or have some accentuation;

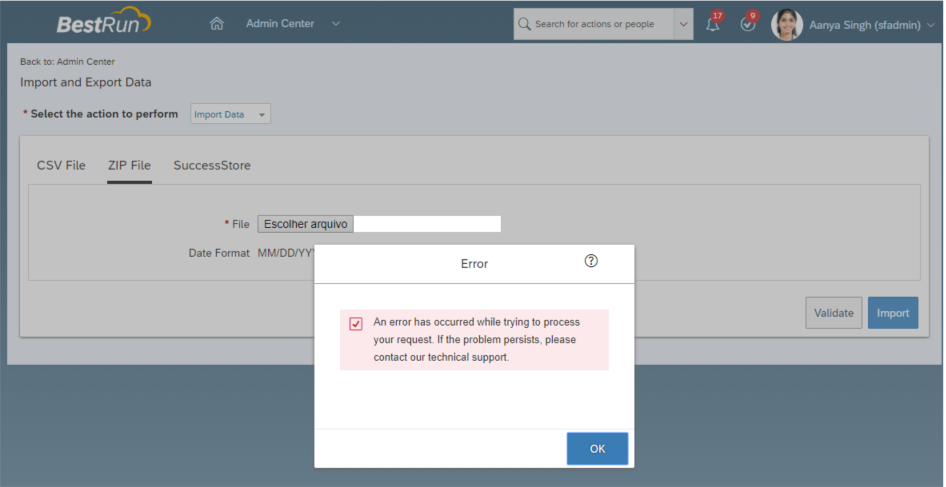

  3. Validate or import the file and you will get the error:

An error has occurred while trying to process your request. If the problem persists, please contact our technical support.


Cause

The file name has non UTF-8 encoding characters ( the zip file name or file name in the zip folder).

Resolution

Customer has to change the file name to UTF-8 encoding as per system design, only standard UFT-8 file name & file format could pass the import.

This need to be done in your local enviroment settings or use proper zip tool to make sure the file name is standard UTF-8 after compressing files.

Or, if customer is using Win10 system, there have a possible workaround could help set file name as UTF-8, please see below screenshot:

See Also

2277994 - How to Import Data for MDF Objects?

2257047 - Adding attachments on a MDF Object for attachment type field via Import
