2464944 - SUM throws java.lang.NullPointerException in BUILD-COMPONENT-LIST-UPG for CUSTOM components when migrate option is selected

Symptom

During upgrade or update SUM shows java.lang.NullPointerException error in step BUILD-COMPONENT-LIST-UPG for CUSTOM components when migrate option is selected

----Trouble Ticket Report------

An error occured during the execution of Build Component List for Upgrade of action configure.
Service com.sap.sdt.j2ee.services.servicesimpl.ModifyQueueService failed with the following message:

java.lang.NullPointerException

For more information, see the log file /soft/SUM_SPX/SUM/sdt/log/SUM/BUILD-COMPONENT-LIST-UPG_03.LOG

----SUM/sdt/log/SUM/BUILD-COMPONENT-LIST-UPG_03.LOG--------

Mar 27, 2017 1:47:46 PM [Info ]: Component with name BP_SRM, vendor sap.com, and release 7.02 has predecessor with the same name in start release.
Mar 27, 2017 1:47:46 PM [Info ]: Component with name BP_SRM and vendor sap.com is not part of any usage type and is deployed to update the existing component(s)
Mar 27, 2017 1:47:46 PM [Info ]: Component with name CRMAPP, vendor sap.com, and release 754 has predecessor with the same name in start release.
Mar 27, 2017 1:47:46 PM [Info ]: Component with name CRMAPP and vendor sap.com is not part of any usage type and is deployed to update the existing component(s)
Mar 27, 2017 1:47:46 PM [Info ]: Component with name CRMFND, vendor sap.com, and release 754 has predecessor with the same name in start release.
Mar 27, 2017 1:47:46 PM [Info ]: Component with name CRMFND and vendor sap.com is not part of any usage type and is deployed to update the existing component(s)
Mar 27, 2017 1:47:46 PM [Info ]: All Development components from SCA - JLOGVIEW, are in undeploy list.
Mar 27, 2017 1:47:46 PM [Info ]: All Development components from SCA - RTC, are in undeploy list.
Mar 27, 2017 1:47:46 PM [Info ]: All Development components from SCA - RTC-STREAM, are in undeploy list.
Mar 27, 2017 1:47:46 PM [Info ]: All Development components from SCA - VCBASE, are in undeploy list.
Mar 27, 2017 1:47:47 PM [Info ]: All Development components from SCA - VCFLEX, are in undeploy list.
Mar 27, 2017 1:47:47 PM [Info ]: Dialog eliminator ConfirmComponentsDialogEliminator does not allow to omit dialog ConfirmComponents
Mar 27, 2017 1:50:20 PM [Info ]: Component with name CUSTOM_COMPONENT1 and vendor custom.com is component without successor and has been configured for migration.
Mar 27, 2017 1:50:20 PM [Info ]: The component CUSTOM_COMPONENT1 is subject for par-war migration. Even though action 'migrate' was chosen, the inbox will be scanned for successor
Mar 27, 2017 1:50:20 PM [Info ]: Component with name CUSTOM_COMPONENT2 and vendor custom.com is component without successor and has been configured for migration.
Mar 27, 2017 1:50:20 PM [Info ]: The component CUSTOM_COMPONENT2 is subject for par-war migration. Even though action 'migrate' was chosen, the inbox will be scanned for successor
Mar 27, 2017 1:50:20 PM [Info ]: Component with name CUSTOM_COMPONENT3 and vendor custom.com is component without successor and has been configured for migration.
Mar 27, 2017 1:50:20 PM [Info ]: The component CUSTOM_COMPONENT3 is subject for par-war migration. Even though action 'migrate' was chosen, the inbox will be scanned for successor
Mar 27, 2017 1:50:20 PM [Info ]: Action 'remove' has been chosen for component with name BP_ERP4ESS, vendor sap.com and release 60.2.
Mar 27, 2017 1:50:20 PM [Info ]: Action 'remove' has been chosen for component with name BP_ERP4MSS, vendor sap.com and release 60.1.
Mar 27, 2017 1:50:20 PM [Info ]: Action 'remove' has been chosen for component with name CustomLogoffEar, vendor sap.com and release 0.
Mar 27, 2017 1:50:20 PM [Info ]: Action 'remove' has been chosen for component with name FileList, vendor sap.com and release 0.
Mar 27, 2017 1:50:20 PM [Info ]: Action 'remove' has been chosen for component with name PayTest, vendor sap.com and release 0.
Mar 27, 2017 1:50:20 PM [Info ]: Action 'remove' has been chosen for component with name UserSync_EAR, vendor sap.com and release 0.
Mar 27, 2017 1:50:20 PM [Info ]: Action 'remove' has been chosen for component with name tc~sec~diagtool~ear, vendor sap.com and release 0.
Mar 27, 2017 1:50:20 PM [Info ]: Action 'remove' has been chosen for component with name CAF-KM, vendor sap.com and release 7.02.
Mar 27, 2017 1:50:20 PM [Info ]: Action 'remove' has been chosen for component with name CAF-UM, vendor sap.com and release 7.02.
Mar 27, 2017 1:50:20 PM [Info ]: Action 'remove' has been chosen for component with name NET-PDK, vendor sap.com and release 7.02.
Mar 27, 2017 1:50:20 PM [Info ]: The component NET-PDK is subject for par-war migration. Even though action 'remove' was chosen, the inbox will be scanned for successor
Mar 27, 2017 1:50:20 PM [Info ]: Action 'remove' has been chosen for component with name RTC, vendor sap.com and release 7.02.
Mar 27, 2017 1:50:20 PM [Info ]: The component RTC is subject for par-war migration. Even though action 'remove' was chosen, the inbox will be scanned for successor
Mar 27, 2017 1:50:20 PM [Info ]: Action 'remove' has been chosen for component with name RTC-STREAM, vendor sap.com and release 7.02.
Mar 27, 2017 1:50:20 PM [Info ]: Action 'remove' has been chosen for component with name SAP-EU, vendor sap.com and release 7.02.
Mar 27, 2017 1:50:20 PM [Info ]: Action 'remove' has been chosen for component with name VCKITGP, vendor sap.com and release 7.02.
Mar 27, 2017 1:50:20 PM [Info ]: Action 'remove' has been chosen for component with name VCKITXX, vendor sap.com and release 7.02.
Mar 27, 2017 1:50:20 PM [Info ]: The list of target release components has been confirmed.
Mar 27, 2017 1:50:20 PM [Error ]: The following problem has occurred during step execution: java.lang.NullPointerException.

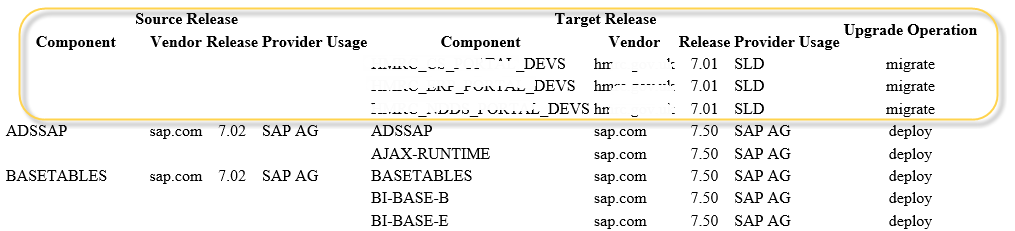

---------/SUM/sdt/log/SUM/ComponentList_03.htm---------

comp list.png

Increase the severity as per KBA 1838153 and check DETEC.TRC to find components as follows, you notice that when reading source information before migrating it returns null value

---------/SUM/sdt/trc/DETECT.TRC----------

Mar 27, 2017 1:50:20 PM [Info]: com.sap.sdt.slprotocol.impl.SLPPProtocolImpl.getMonitor(SLPPProtocolImpl.java:231) [Thread[SUMSLPServer-20 - /slp/processes/SUM4Java/monitor?_=1490618786718,5,main]]: Monitor resource: current step is:Current step: Build Component List for Upgrade
Mar 27, 2017 1:50:20 PM [Debug]: com.sap.sdt.j2ee.services.servicesimpl.ModifyQueueService [Thread[Thread-12,5,main]]: Processing software component with key custom.com CUSTOM_COMPONENT1.
Mar 27, 2017 1:50:20 PM [Debug]: com.sap.sdt.j2ee.services.servicesimpl.ModifyQueueService [Thread[Thread-12,5,main]]: Processing software component with name CUSTOM_COMPONENT1.
Mar 27, 2017 1:50:20 PM [Debug]: com.sap.sdt.j2ee.services.servicesimpl.ModifyQueueService [Thread[Thread-12,5,main]]: Processing software component with archive <null>.
Mar 27, 2017 1:50:20 PM [Debug]: com.sap.sdt.executor.status.StatusHandler [Thread[Thread-12,5,main]]: Entering method 'setStepState(Step step, Status.STATUS_STATE newState)'
Mar 27, 2017 1:50:20 PM [Debug]: com.sap.sdt.executor.status.StatusHandler [Thread[Thread-12,5,main]]: Entering method 'updateStatus(String statusId, Status.STATUS_STATE state)'
Mar 27, 2017 1:50:20 PM [Debug]: com.sap.sdt.executor.status.StatusHandler [Thread[Thread-12,5,main]]: Exiting method 'updateStatus(String statusId, Status.STATUS_STATE state)'
Mar 27, 2017 1:50:20 PM [Info]: com.sap.sdt.executor.status.StatusHandler.setStepState(StatusHandler.java:318) [Thread[Thread-12,5,main]]: Changed the execution state of Step build-component-list-upg from RUNNING to ABORTED.
Mar 27, 2017 1:50:20 PM [Debug]: com.sap.sdt.executor.status.StatusHandler [Thread[Thread-12,5,main]]: Exiting method 'setStepState(Step step, Status.STATUS_STATE newState)'
Mar 27, 2017 1:50:20 PM [Error]: com.sap.sdt.executor.step.StepExecutor.executeStep(StepExecutor.java:240) [Thread[Thread-12,5,main]]: The following problem has occurred during step execution: java.lang.reflect.InvocationTargetException.
Mar 27, 2017 1:50:20 PM [Error]: com.sap.sdt.executor.step.StepExecutor.executeStep(StepExecutor.java:243) [Thread[Thread-12,5,main]]: The following problem has occurred during step execution: java.lang.NullPointerException.
..
..
..

Mar 27, 2017 1:50:20 PM [Error]: com.sap.sdt.executor.module.ModuleExecutor.executeModule(ModuleExecutor.java:134) [Thread[Thread-12,5,main]]: A problem has occurred: com.sap.sdt.executor.exception.StepExecutionException: Problem while trying to execute operation on service build-component-list-upg. The following problem has occurred java.lang.reflect.InvocationTargetException. CSN Component BC-UPG-TLS-TLJ.
java.lang.NullPointerException
.
Mar 27, 2017 1:50:20 PM [Error]: com.sap.sdt.executor.module.ModuleExecutor [Thread[Thread-12,5,main]]: Problem while trying to execute operation on service build-component-list-upg. The following problem has occurred java.lang.reflect.InvocationTargetException. CSN Component BC-UPG-TLS-TLJ.
Mar 27, 2017 1:50:20 PM [Error]: com.sap.sdt.executor.module.ModuleExecutor [Thread[Thread-12,5,main]]: java.lang.NullPointerException
at java.io.File.<init>(File.java:287)
at com.sap.sdt.j2ee.services.servicesimpl.ModifyQueueService.handelMigratedSourseComponents(ModifyQueueService.java:622)
at com.sap.sdt.j2ee.services.servicesimpl.ModifyQueueService.getUpgradeComponents(ModifyQueueService.java:399)
at com.sap.sdt.j2ee.services.servicesimpl.ModifyQueueService.addUpgradeComponentsToQueueInternal(ModifyQueueService.java:160)
at com.sap.sdt.j2ee.services.servicesimpl.ModifyQueueService.addUpgradeComponentsToQueue(ModifyQueueService.java:145)
at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)

Environment

Update or upgrade for Netweaver 7.0x system

Product

SAP NetWeaver 2004 ; SAP NetWeaver 7.0 ; SAP enhancement package 1 for SAP NetWeaver 7.0 ; SAP enhancement package 2 for SAP NetWeaver 7.0 ; SAP enhancement package 3 for SAP NetWeaver 7.0

Keywords

Software update manager , undefined , deploy , remove , SDM , KBA , BC-UPG-TLS-TLJ , Upgrade tools for Java , BC-CTS-SDM , Software Delivery Manager for Java , Problem
