2469478 - Undefined data type Data Structure Column - SAP PD

Symptom

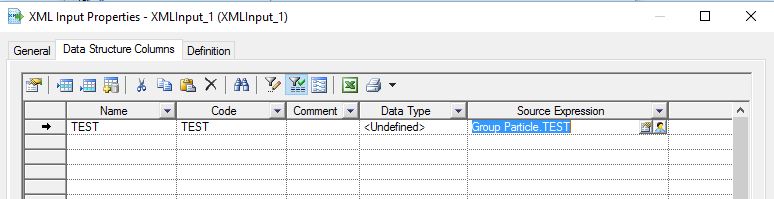

  • When reverse engineering an XML Schema Defintion file (XSD) into PowerDesigner, the datatype of an element is showing as undefined in the XML Input Properties.




  • The XSD file shows the datatype as follows:

        <xsd:element name="TEST">
             <xsd:simpleType>
                  <xsd:restriction base="xsd:string">
                       <xsd:length value="1"/>




Read more...

Environment

SAP PowerDesigner 16.6

Product

SAP PowerDesigner 16.6

Keywords

KBA , BC-SYB-PD , PowerDesigner , Product Enhancement
