2484343 - How to set the lowercase letters flag for a characteristic on BW monitoring tool

This issue occurs in BW on hana system.

You want to set the lowercase letters flag for a characteristic on BW monitoring tool, but from BW monitoring tool, you can not find the lowercase letters check box.

For example, You see the following errors when load data to an infoprovider:

No SID found for value 'ｱｲｳｴｵ' of characteristic ZOBJTEST
Message no. BRAIN070

Error when moving or checking the SID (see previous messages)
Message no. DBMAN343

Since single katakana is a kind of lowercase letters, so you want to set the flag for the characteristic ZOBJTEST to resolve the above error:

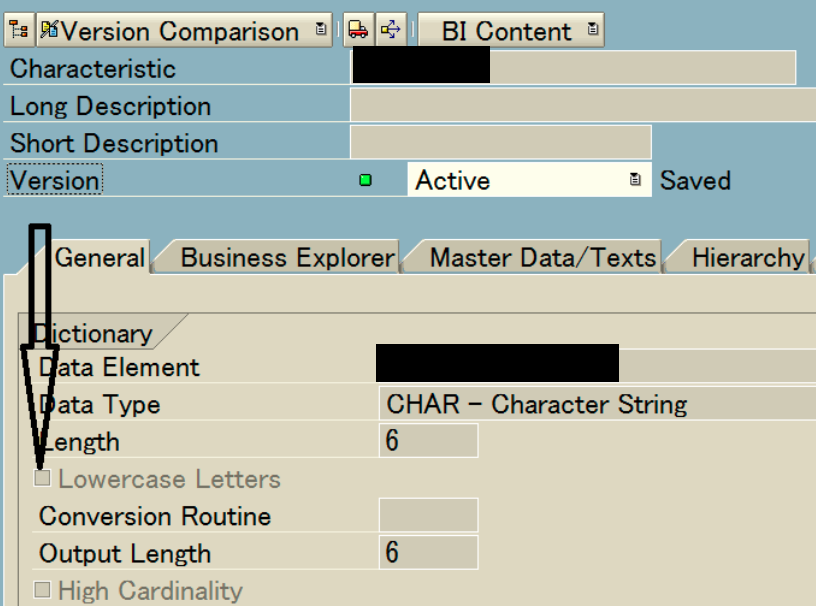

But you can not find the lowercase letters check box from BW monitoring tool.

Image/data in this KBA is from SAP internal systems, sample data, or demo systems. Any resemblance to real data is purely coincidental.

• SAP NetWeaver 7.5
• SAP BW/4HANA All Versions

Business Warehouse, BW, 7.5, 7.51 , KBA , BW-WHM-DBA-MD , Master Data , BW-WHM-DST-TRF , Transformation , BW-WHM-DBA-IOBJ , InfoObjects , BW-MT-IOBJ , InfoObject in BW Modeling Tools , Problem
