2505747 - HRIS Sync - HRIS Sync Job - Order in which Elements are Synchronized

Symptom

 This article is to assist and explain on HRIS sync job in regards of the order in which elements are sycnhronized.

"Image/data in this KBA is from SAP internal systems, sample data, or demo systems. Any resemblance to real data is purely coincidental."

Notes: The HRIS sync is based on users, its synced user after user. And for the same user, still it follows the below sync order.

Environment

Employee Central

Resolution

The HRIS Sync job will synchronize data from EC elements to EP fields in the following order (in the table view below - the sync runs in reverse order - from the BOTTOM TO TOP of the list)

phone->email->business address->comp>name(ect v1 only)->personal->person->generic objects->employment->job status->job relationships->job.

Please note that the order in which the sync runs cannot be changed/configured

Sync OrderHRIS Sync Job ElementEC hris-element id
12User info elements save for custom sync----
11Job Information Change syncjobInfo
10Manager change syncjobInfo (managerId)
9Status Change syncjobInfo (emplStatus)
8Employment Info syncemploymentInfo
7Generic Entity

homeAddress
nationalIdCard

6Person Info syncpersonInfo
5Personal Info syncpersonlInfo
4Salary change synccompInfo
3Business Address synccorporateAddress
2Email info syncemailInfo
1Phone info syncphoneInfo

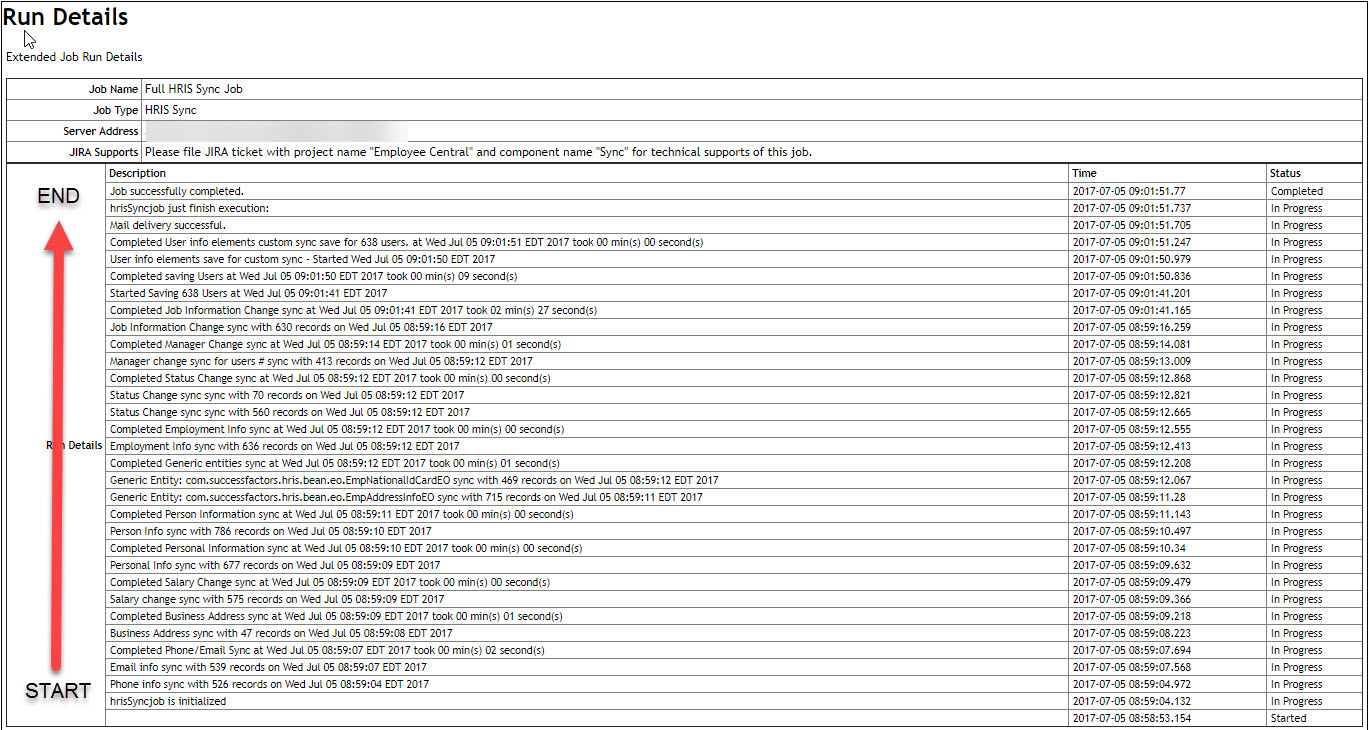

When you view the HRIS Sync job details in Provisioning > Monitor Jobs, you will notice that in the "Details" the job run details will expand upwards as the job runs (same order as the above table) -:




For more information can be found in the Employee Central Master implementation guide

See Also

2172427 - HRIS Sync - Data Synchronization From EC to EP - Hard Coded Sync Mappings
