SAP Knowledge Base Article - Preview

2529415 - Primary key indexes are not generated - SAP PD

Symptom

  • A Physical Data Model (PDM) targets Oracle.
  • The primary key constraints are generated.
  • The primary key indexes are not generated.

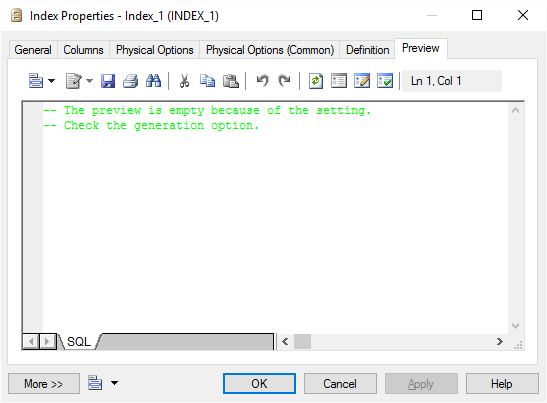

  • The Preview tab in the property sheet of the index displays:
    -- The preview is empty because of the setting.
    -- Check the generation option.

    KBA 2529415_1.png

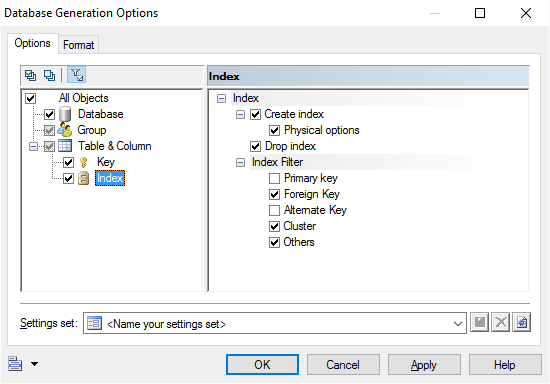

  • In the Database Generation dialog box, selecting the Create primary key check box for Keys deselects the Primary key option for Index Filter automatically, and vice versa.

    KBA 2529415_2.png     KBA 2529415_3.png

"Image/data in this KBA is from SAP internal systems, sample data, or demo systems. Any resemblance to real data is purely coincidental."


Read more...

Environment

  • SAP PowerDesigner (PD) 16.5
  • SAP PowerDesigner (PD) 16.6
  • Oracle DBMS

Product

SAP PowerDesigner 16.5 ; SAP PowerDesigner 16.6

Keywords

generation, sql, unique, ddl , KBA , BC-SYB-PD , PowerDesigner , Problem
