2530440 - How to configure DIR_PUT in AL11 for the upgrade directory

You need to set up DIR_PUT entry in transaction AL11 for your SAP system Upgrade or Update. This is a mandatory setup, otherwise errors will take place during the procedure, specially on the (background) batch jobs phases, like BATCHCHK phase.

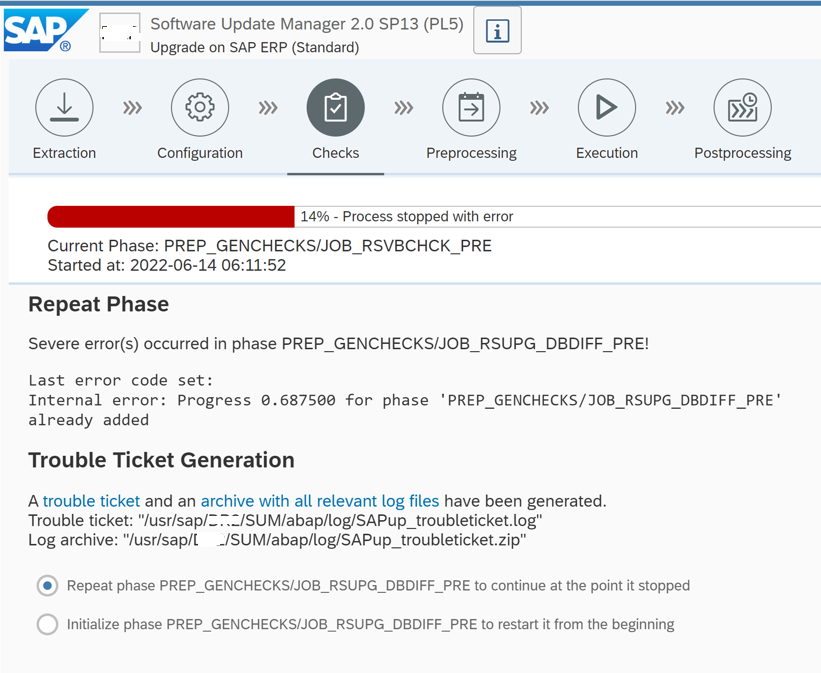

For example : you may encounter one of the following errors.

*********************************
Internal error: Progress 0.687500 for phase "PREP_GENCHECKS/JOB_RSUPG_DBDIFF_PRE" already added
*********************************

(or)

SAPupconsole.log contains below error during phase PREP_PRE_CHECK/SWITCHPARAM_UPGDIR

>> 2022/05/31 12:09:24  START OF PHASE PREP_PRE_CHECK/SWITCHPARAM_UPGDIR

The ABAP upgrade directory "/sapmnt/SUM/abap" and the value of the profile parameter
DIR_PUT="/usr/sap/put" are not the same!

Switching DIR_PUT to /sapmnt/SUM/abap.

<< 2022/05/31 12:09:34  END OF PHASE   PREP_PRE_CHECK/SWITCHPARAM_UPGDIR

1EETQ399 Last error code set is: RFC system S4P nr 02 function 'UPGRADE_SWITCH_DIR_PUT'
1EETQ399XRFC failed with code 5 key INTERNAL_ERROR:
1EETQ399X Number:000
1EETQ204 Upgrade phase "SWITCHPARAM_UPGDIR" aborted with severe errors ("20220531120934")

NetWeaver ABAP release independent

DIR_PUT, AL11, Security Error when accessing, CX_CRR_SYSTEM, Progress, "for phase", "already added", UPGRADE_SWITCH_DIR_PUT, INTERNAL_ERROR, SWITCHPARAM_UPGDIR, , KBA , BC-UPG-RDM , README: Upgrade Supplements , How To
