2580220 - How to find the Binding Path from Adobe Life Cycle Designer

You want to know how to find the binding path used for a particular field in a form template.

How to find the binding path from Adobe Life Cycle Designer?

1. Download the .XDP format of form template of the required document from the system.
2. Unzip the file downloaded.
3. Open the Adobe Life Cycle Designer.
4. Click on Open from the File option.
5. Browse and open the form template.

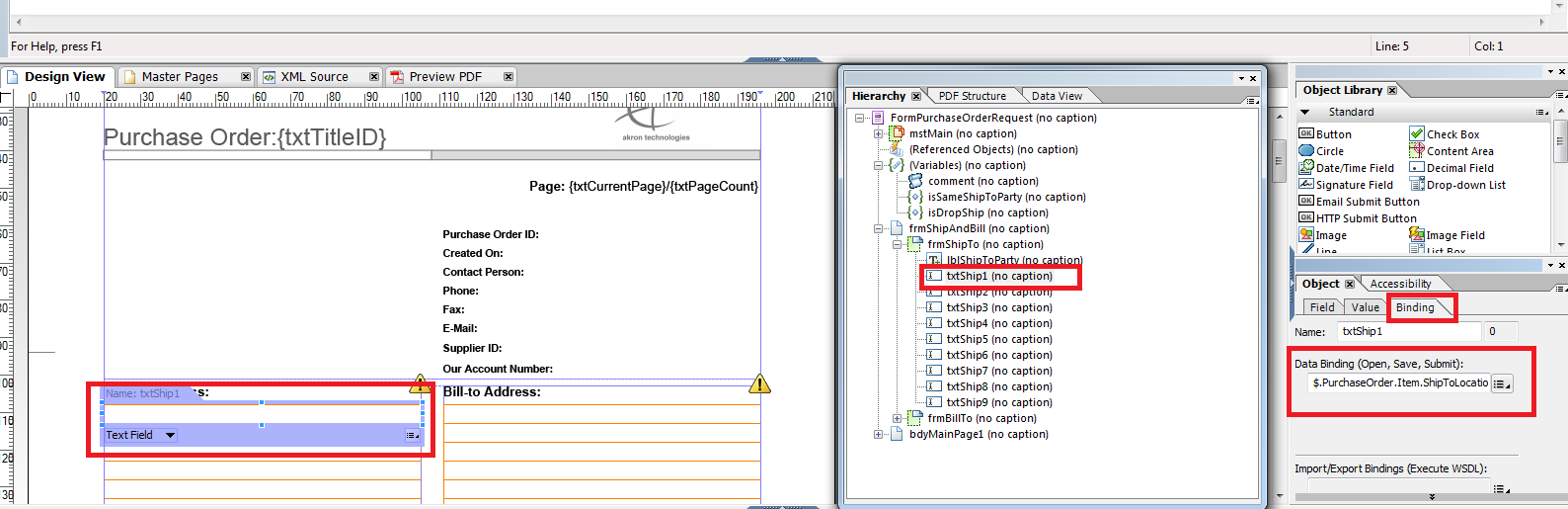

6. Select the Design View tab and double click on the required field which you want to know the binding path.

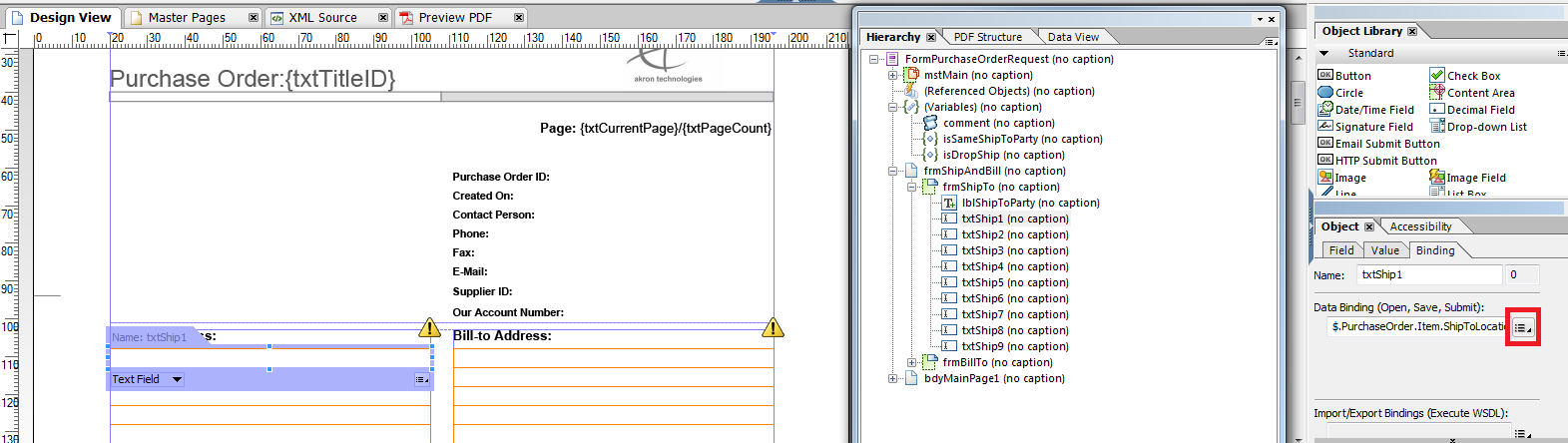

7. Select the tab Binding in the Object Library window.
8. You will be able to see the Name of the field and the current binding path of the field.

How to change the binding path?

1. Follow the same steps till step number 7.

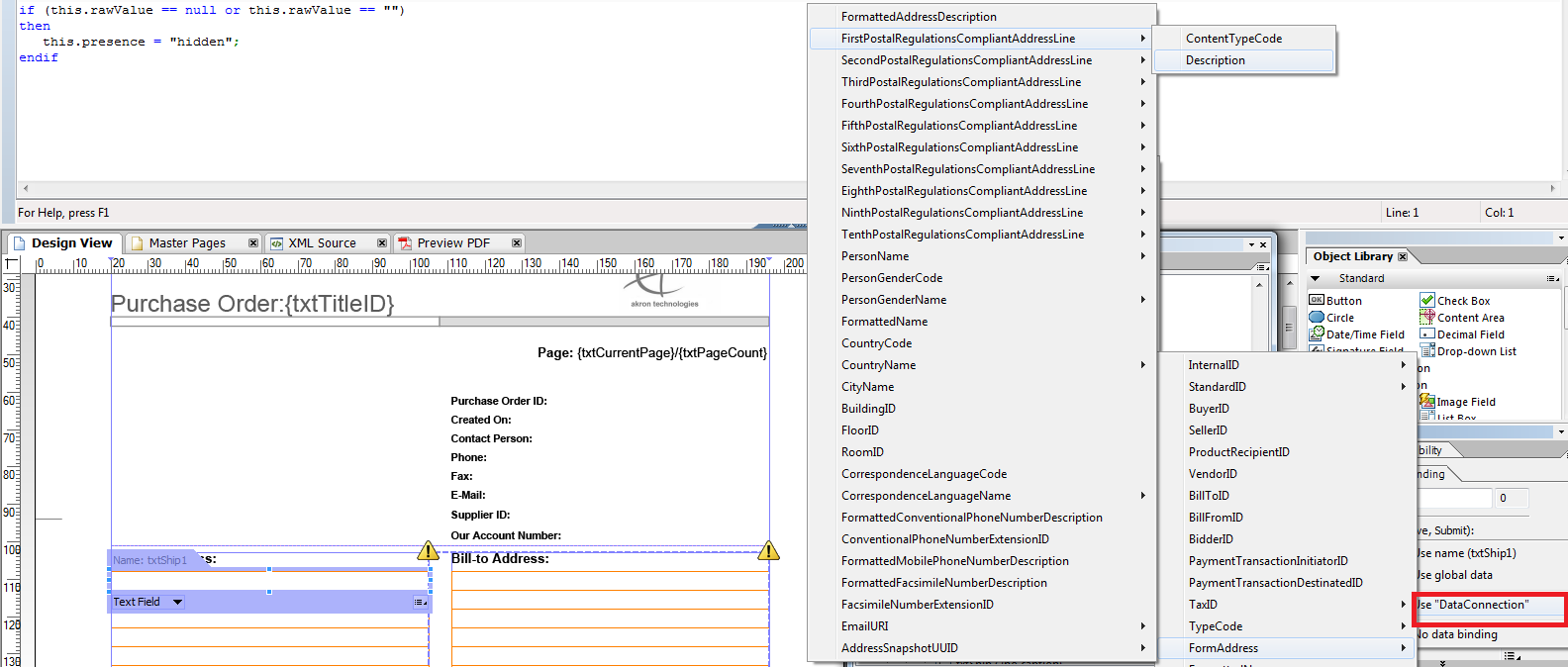

2. Click on the arrow button next to the binding path field.
3. Select Use “Data Connection”.
4. Navigate to the required field path and select the field which you required.
5. The new binding path will be applied.
