2599863 - Config tool stopped - An error has occurred during key migration - Could not create folder

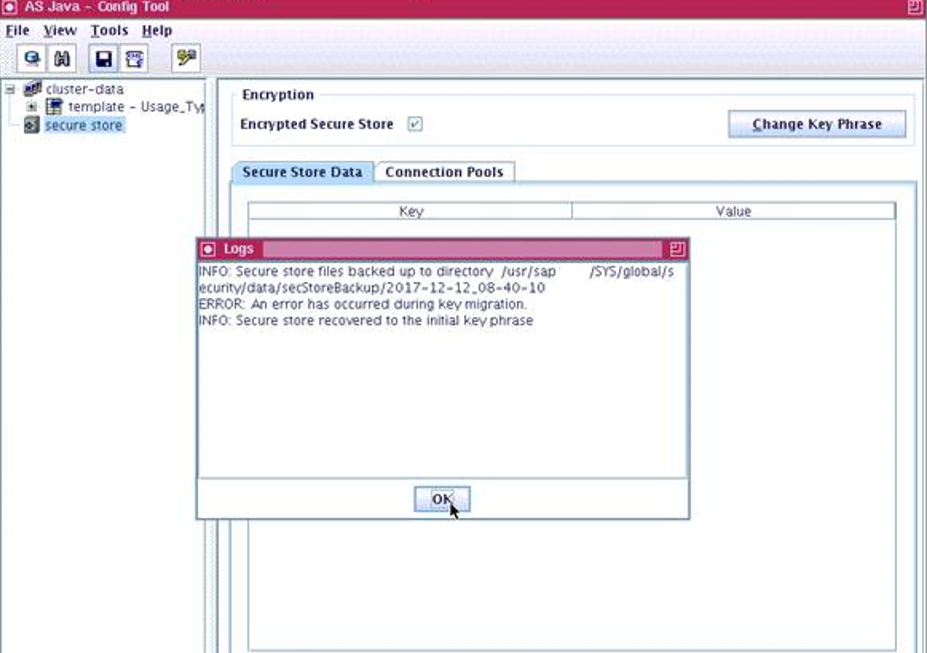

Config Tool is not able to open with old key phrase and it also can not be changed. The following error appears while saving the new password.

ERROR: An error has occurred during key migration.
INFO: Secure store recovered to the initial key phrase.

Additionally related errors can be seen in Config Tool log and trace files:

• In configtool.log:

Fatal: com.sap.ASJ.cft.000229 Config tool stoped due to fatal error. See trace file for more details.
Error details:
No X11 DISPLAY variable was set, but this program performed an operation which requires it.
Dec 18, 2017 8:51:36 AM Info: com.sap.<XXXXXX> The user agreed that AS Java is stopped
Dec 18, 2017 8:51:47 AM Info: com.sap.<XXXXXX> Secure store files backed up to directory /usr/sap//SYS/global/security/data/secStoreBackup
Dec 18, 2017 8:51:55 AM Error: com.sap.<XXXXXX> An error has occurred during key migration.
Error details: Error occurred: Error during reencryption. See stacktrace for details.
Dec 18, 2017 8:51:55 AM Info: com.sap.<XXXXXX> Secure store recovered to the initial key phrase
configtool.0.log: END

• In configtool.trc:

#Fatal#configtool#
com.sap.ASJ.cft.000229#BC-JAS-ADM-ADM-CFT#sap.com~tc~je~configtool#configtool#Thread[main,5,main]#Plain##
Config tool stoped due to fatal error. See trace file for more details.
java.awt.HeadlessException:
No X11 DISPLAY variable was set, but this program performed an operation which requires it.

#Error#configtool#
com.sap.ASJ.cft.000146#BC-JAS-ADM-ADM-CFT#sap.com~tc~je~configtoo###configtool##Thread[Thread-6,6,main]#Plain##
An error has occurred during key migration.
com.sap.engine.frame.core.configuration.ConfigurationException: Error occurred: Error during reencryption. See stacktrace for details.
[...]
Caused by: java.io.IOException: Could not create folder: ./temp/kernel/configuration/
[...]

SAP Netweaver for AS Java all versions using UNIX based operation systems

Keyphrase, Key phrase, Configtool, Config Tool, ConfigurationException, key migration, config tool fatal error , KBA , BC-JAS-ADM-ADM , Administration , BC-JAS-COR , Enterprise Runtime, Core J2EE Framework , BC-OP-AIX , IBM AIX , Problem
