2602794 - Fiori iview image not loading when Service URL specified


  • You have configured a Fiori Enterprise Portal iView to display an image instead of an icon by setting the Icon URI property
  • When you enter a value for the iView property Service URL, the image will not display. Instead the image is replaced with the data extracted from the Service URL.

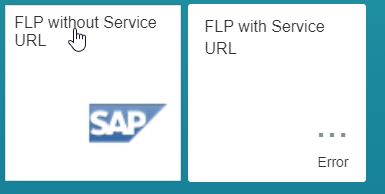

  • This behaviour is demonstrated below:
  • The issue does not occur when Image Type is set to Icon, and an Icon resource is specified under the SAPUI5 Icon property



  • SAP NetWeaver Application Server for Java 7.3x and higher releases
  • FLP@EP


SAP NetWeaver 7.4 ; SAP NetWeaver 7.5 ; SAP enhancement package 1 for SAP NetWeaver 7.3


flp, portal, iviews, ui5, url, uri, pcd, icons, gateway, services, fes, r3, abap, tile, tyles, dynamic, content, count, filter, data, datas , KBA , EP-PIN-NAV-FFP , Fiori Framework Page , EP-PIN-AI , Application Integration , CA-UI5-COR , Core and Runtime , EP-PIN-PRT , Portal Runtime , CA-UI2-INT-FE , Please use CA-FLP-FE-COR , Problem
