SAP Knowledge Base Article - Preview

2635958 - Fiori Launchpad initial access from SAP Portal fails - users need to click Refresh button


  • There is an issue with users trying to access the Fiori Launchpad from SAP external portals
  • When accessing the Fiori Launchpad ("My Launchpad") tab from the external SAP Enterprise portal, users cannot access the Fiori Launchpad initially

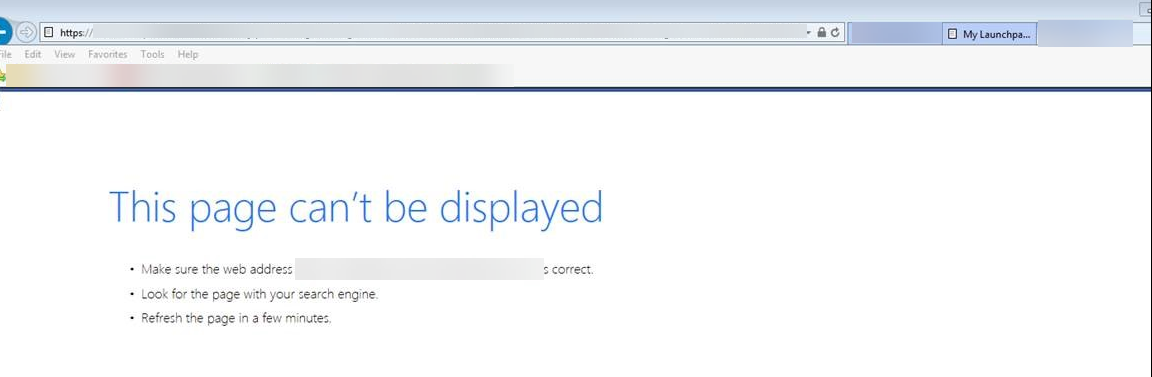

    • The users get a "this page can't be displayed" error in IE11

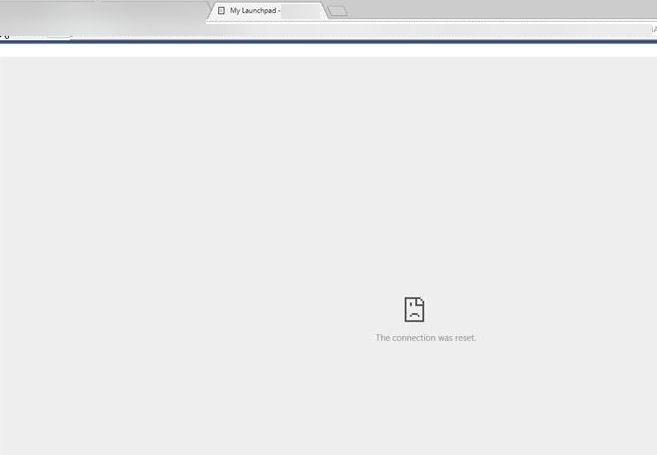

    • Or an unhappy face "the connection was reset" error in Google Chrome

    • At this point, if the user hits the browser's refresh key, then the Fiori Launchpad loads good or ok
    • Once the user has access to the Launchpad, the user will have no issues being able to access the launchpad again during the same session
  • The business unit would like to fix this initial error so that the admin team do not need to have to instruct users to hit refresh all the time as a workaround
  • Users and business unit cleared the browsers and UI5 caches and seeing the same issue
  • When tracing via an HTTP watch trace, an error "ERROR_INTERNET_CONNECTION_RESET" is logged when connection dies with the "This page cannot can't be displayed"
    • HWL file HW3001 - The request returned an HTTP status code failure or caused an internal browser error. Failing request may prevent a web page functioning correctly and caused performance problem
  • Error only occurs when the external portal system is accessed through F5 - Reverse Proxy



  • F5 Reverse Proxy
  • SAP NetWeaver Gateway 7.40


SAP NetWeaver 7.4


"SAP Portal fails with Fiori Launchpad","Fiori Launchpad requires a refresh to work","Fiori Browser refresh","IE This page can't be displayed Fiori","My Fiori Launchpad Connection reset","users cannot access portal to Fiori", "F5 IRule Fiori", "Chrome The connection was reset Fiori Launchpad" , KBA , CA-FE-FLP-EU , Please use CA-FLP-FE-UI , Problem
