SAP Knowledge Base Article - Public

2656978 - How To Add Fields To A Custom Section


After creating a new custom Section you find no fields available when trying to add them via Adapt.


SAP Hybris Cloud for Customer

Reproducing the Issue

  1. Go to the workcenter view where you want to add the new section.
  2. Click Adapt -> Edit Master Layout.
  3. Hover over an existing section until the tool menu appears.
  4. Click the plus icon.
  5. Click Add section.
  6. In the new window, click Add Section.

Add Section_1.jpg

  1. Name the section.
  2. Apply.
  3. Within the section you do not have any fields available to be added when clicking the plus icon and Add Fields.


To support KUT fields, there has to be pane container.

In the new section, to add KUT fields, these must be created in the object header and then moved into the new section useing drag and drop.

When you move standard fields from the header, these fields will be removed from header and no longer available in the header.

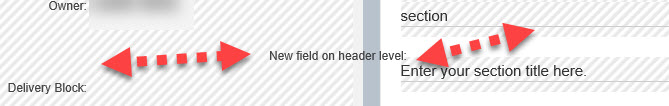

Create KUT fields on header level of the object as needed.

Move the fields into the section via drag and drop.


See Also

SAP Administration Guide > Extensibility


KUT fields, no fields available, new section, custom, Adapt, Edit Master Layout , KBA , AP-RC-CU , Key User Custom Objects , AP-RC-UIF-FLX , Page Layout & Key User Configuration , Problem


SAP Cloud for Customer add-ins all versions ; SAP Cloud for Customer core applications all versions
