2667371 - HANA throws out of memory dump while accessing backup catalog

Symptom

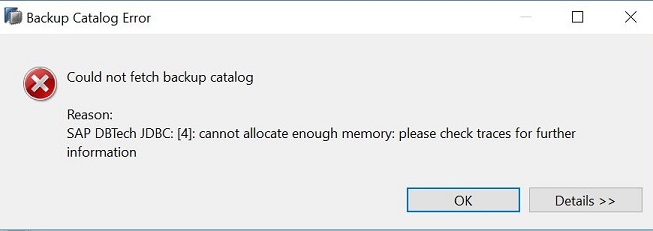

The following error occurs when opening the Backup Catalog:

'SAP DBTech JDBC [4]: cannot allocate enough memory'

KBA material.PNG



Additionally, the indexserver trace file shows out of memory dumps with one of the following heap allocators as the top memory consumer:

Top "M_HEAP_MEMORY" allocators (component, name, size). Ordered descending by exclusive_size_in_use.
1: System: Pool/BackupRecoveryAllocator XX.XXgb (xxxxxxxxxxb)

Top "M_HEAP_MEMORY" allocators (component, name, size). Ordered descending by exclusive_size_in_use.
1: Monitoring & Statistical Data: Pool/RowEngine/MonitorView/StatisticsMonitors/M_DEV_BACKUP_CATALOG_LOG XX.XXgb (xxxxxxxxxxb)



Entries in the backup.log are observed:

ERROR   LOGBCKUP state of service: nameserver, hostname:<port>, volume: 1, previous allocation failed

Image/data in this KBA is from SAP internal systems, sample data, or demo systems. Any resemblance to real data is purely coincidental.


Read more...

Environment

  • SAP HANA, platform edition 1.0
  • SAP HANA, platform edition 2.0

Product

SAP HANA 1.0, platform edition ; SAP HANA, platform edition 2.0

Keywords

backup, HANA, oom, memory, catalog, housekeeping, dump, cannot allocate enough memory, M_DEV_BACKUP_CATALOG_LOG, backup catalog , KBA , HAN-DB-BAC , SAP HANA Backup & Recovery , Problem
