2712601 - When Fiori is enabled, the Calibration page do not render appropriately when users zoom the browser to more than 100%

• The Fiori action icon (three dots) is falling over the associate name and is not visible when if the browser page was changed to more than 100%.
• The search results in the people's tab is not visible if the browser page was changed to more than 100%.

"Image/data in this KBA is from SAP internal systems, sample data, or demo systems. Any resemblance to real data is purely coincidental."

Calibration

Issue #1 Fiori action icon (three dots)

1. Go to Calibration Tab.
2. Open a calibration session.
3. Make sure that browser is at 100%.
4. Go to the Bin view tab.

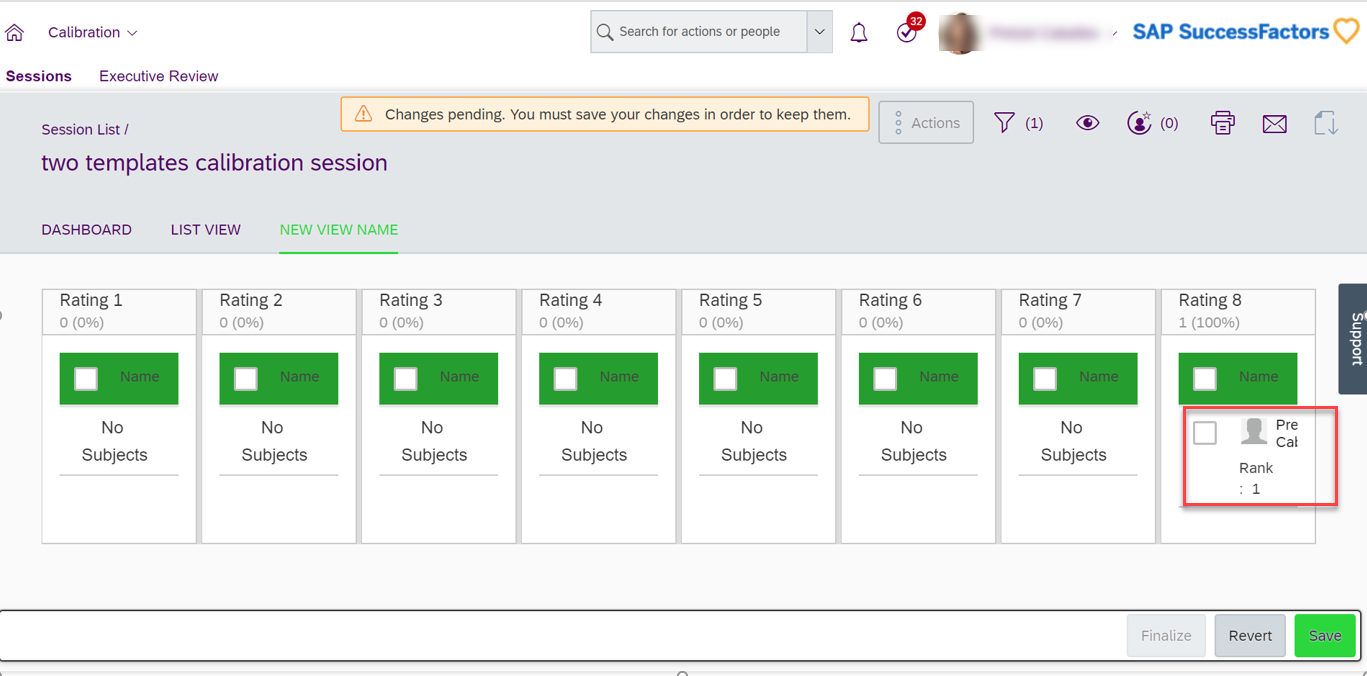

5. Now, change the browser to 150%. Notice that the Fiori action icon (three dots) is falling over the subject name and is not visible.

Issue #2 People Tab

1. Go to Manage Calibration Session.
2. Open a calibration session
3. Make sure that browser is at 100%
4. Go to “People Tab"
5. Search for any user.

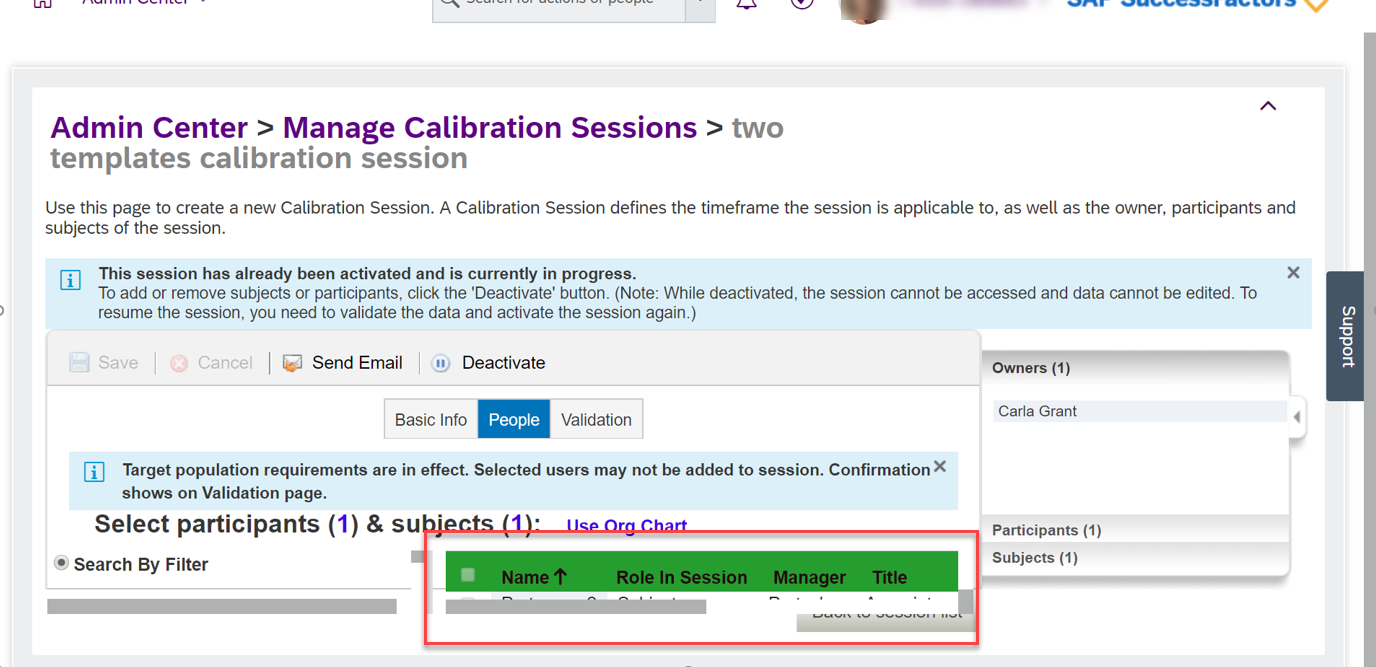

6. Now, change the browser to 175%. The search results shrinks in a way that you are unable to add subjects/participants. It is important that this page renders appropriately when users zoomed the browser.

This is an expected behavior. Engineering introduced a new function called the "splitter bar" so that user can resize each bin and everything will be accessible like in the old UI.

Issue #1 Fiori action icon (three dots)

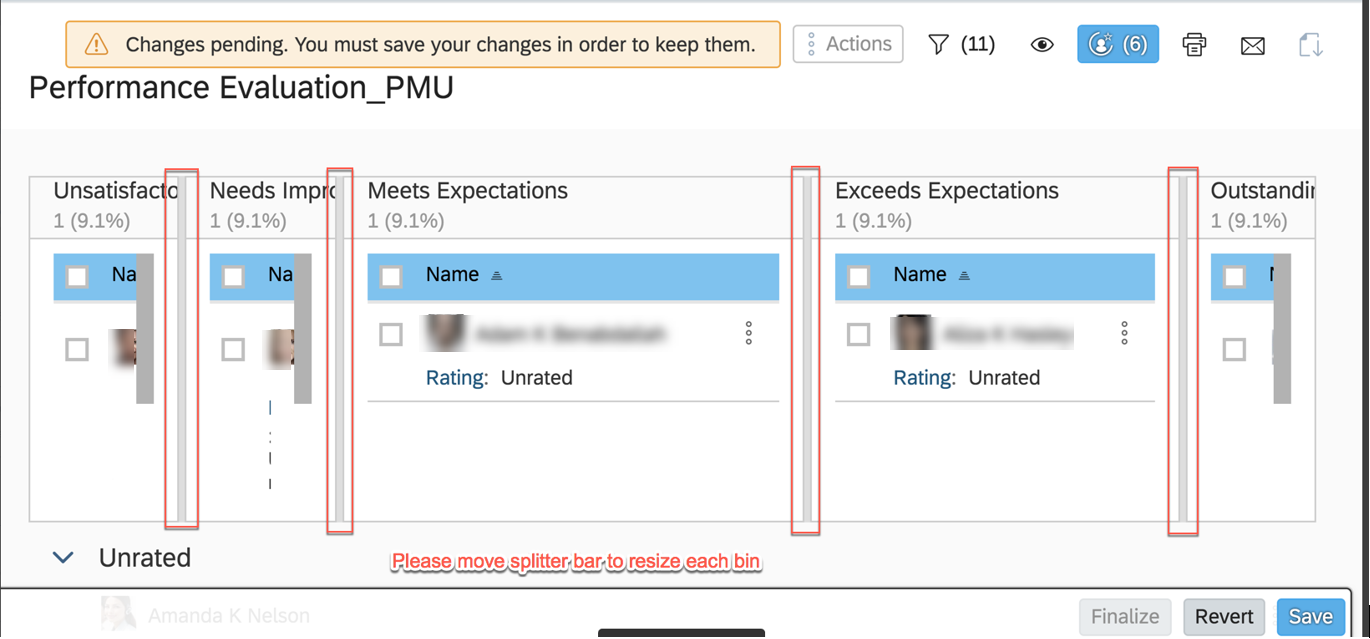

The user needs to move the splitter bar to resize each bin so that the action icon will be visible if the user increases the page to more than 100%

 Issue #2 People Tab

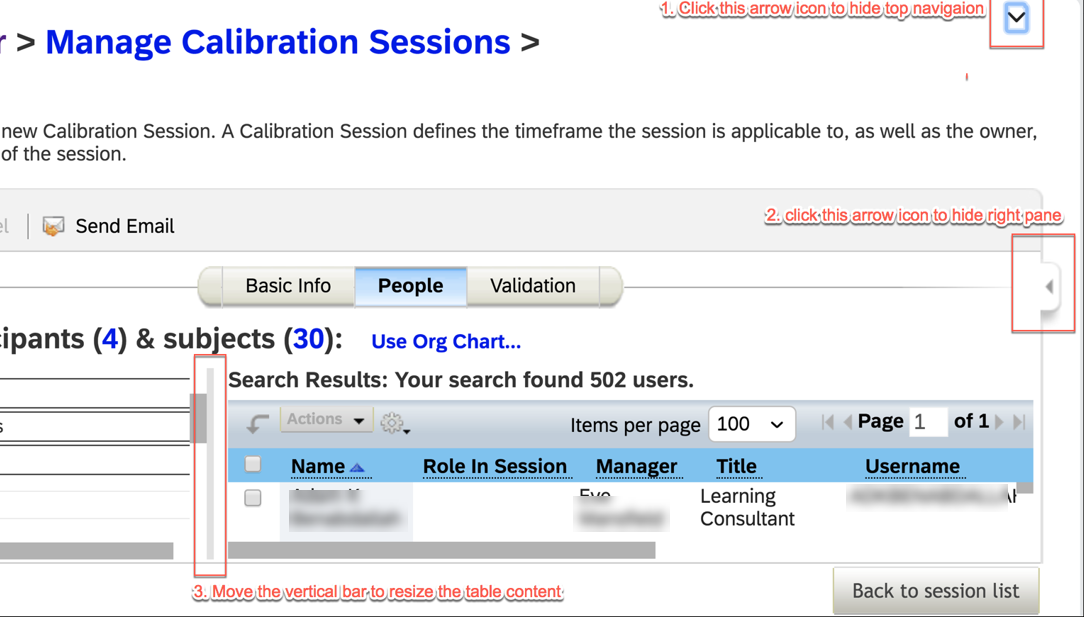

1. Click the arrow icon on the upper right corner to hide top navigation.
2. Click the arrow icon on the right side to hide right pane.
3. Move the vertical bar to resize the table content.
