2764266 - How to get Network Trace and Console Logs

Symptom

In case of random exceptions or unexpected behaviour, SAP support might request for console and network traces from chrome browser for further analysis.

Environment

  • SAP Analytics Cloud
  • SAP Business ByDesign
  • SAP Cloud for Customer
  • SAP Business Technology Platform

Resolution

The detailed steps to capture console and network logs are explained below:

Steps to take traces:

  1. Logon to system using Chrome browser.
  2. Click on Settings -> More Tools-> Developer Tools. (Or using Keyboard, click on Fn + F12)
  3. Developer tools get lauched.
  4. Dock to seperate window.
  5. Navigate to Console.
  6. Clear off old logs. ( The button on top left that is a circle with a line through it )
  7. Click on Network tab.

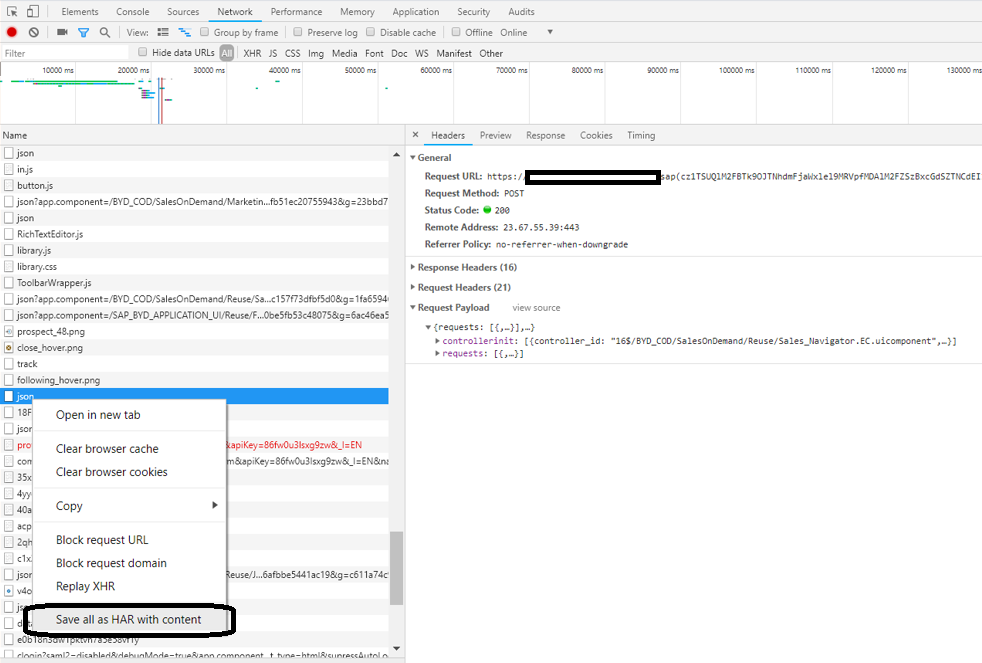

Network Trace:

  1. Navigate to screens and perform normal Business activties.
  2. Once dump or unexpected behaviour is noticed, navigate back to network trace.
  3. Click the download button, Export HAR, to download, and save the file to your computer.



  4. Zip and attach the HAR file.

Console Logs:

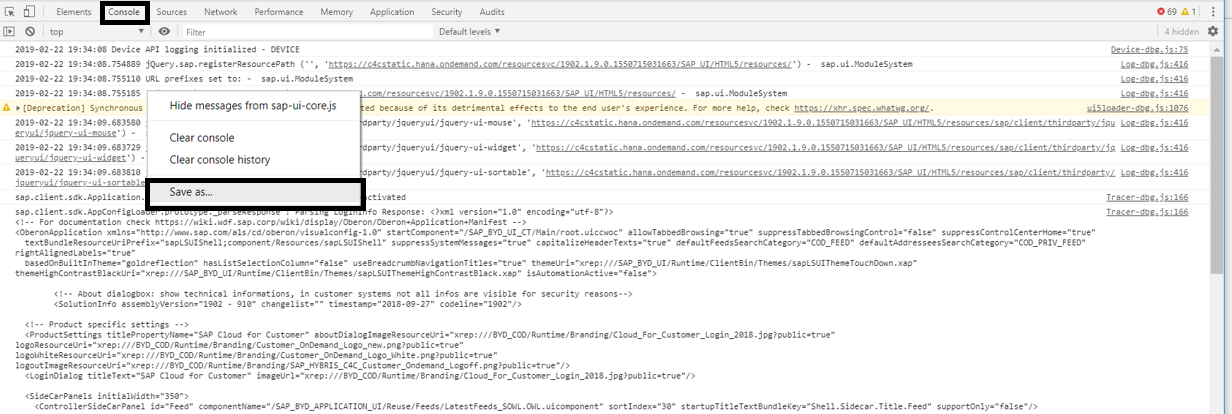

  1. Then Navigate to console tab.
  2. Right click and click on Save as.
  3. Save file with .log extension.


  4. Taking and attaching a screenshot would be helpful.

See Also

Generating a HAR file for troubleshooting

Keywords

Console logs, Console, Chrome, Developer tools, HAR , KBA , get console.log from sap kba , netowrk trace , console logs , AP-RC-UIF-RT , UI Framework Runtime , LOD-ANA-DES , Story Design & Visualizations , LOD-ANA-ADM , SAC Administration , How To

Product

SAP Analytics Cloud 1.0 ; SAP Business ByDesign all versions ; SAP Cloud for Customer add-ins 1905 ; SAP Cloud for Customer core applications all versions
