2774864 - "Failed to call SAP Analytics Cloud Agent..." or "Please verify your configuration settings..." error when checking the datasource configuration in SAP Analytics Cloud (SAC)

Symptom

  • When you click the Check Configuration button (System > Administration > Datasource Configuration", you get one of the following errors:
    • "Failed to call SAP Analytics Cloud Agent. Please contact your administrator to ensure that SAP Analytics Cloud Agent is running, configured correctly, and is reachable from the SAP Cloud Platform Cloud Connector"
    • "Please verify your configuration settings to ensure all entered values are correct. If verified, please contact SAP Support regarding the configuration issue."
  • All import connections using same location do not work
  • The following error message could be observed from Chrome Network trace (HAR file)
    • Request URL: https://<SAC FQDN>/sap/fpa/services/rest/v1/locations/<location ID>/agent/version?&tenant=<...>
    • Response:

      {"message":"Please verify the SAP Cloud Platform Cloud Connector connection status under the SAP Cloud Platform account that is linked to your SAP Analytics Cloud system; and check the Cloud Connector logs to see if the network firewall is blocking access to the Cloud Platform.  If connected, please contact SAP Support regarding backend connectivity issue. HTTP Status: 503, Action: Check version","stack":"","errorDetails":[{"messageId":"CALL_CLOUD_AGENT_SERVICE_FAILED_HCP_503","message":"Please verify the SAP Cloud Platform Cloud Connector connection status under the SAP Cloud Platform account that is linked to your SAP Analytics Cloud system; and check the Cloud Connector logs to see if the network firewall is blocking access to the Cloud Platform.  If connected, please contact SAP Support regarding backend connectivity issue. HTTP Status: 503, Action: Check version","bUIMessage":false,"bWarning":false}],"status":500,"bUIMsg":false,"bWarning":false}

  • No traffic is observed between SAP Analytics Cloud (SAC) and the SAP Cloud Platform (SAP CP) Cloud Connector and no related information is recorded in the SCC traffic trace file

"Image/data in this KBA is from SAP internal systems, sample data, or demo systems. Any resemblance to real data is purely coincidental."

Environment

SAP Analytics Cloud

Reproducing the Issue

  1. Configure the SAP Analytics Cloud Agent.
  2. Notice the error.

Cause

  • The "Location ID" value in SAP Analytics Cloud does not match the Location ID of the corresponding subaccount configured in the SAP CP Cloud Connector.
  • In SAP CP Cloud Connector version 2.9.0 or higher, the location ID is used to route information and therefore you can connect multiple cloud connectors to a single subaccount. If you do not specify any value for <Location ID>, the default is used (Default Location), which represents the behavior of previous SAP CP Cloud Connector versions.
  • The location ID must be unique per subaccount and should be an identifier that can be used in a URI. To route requests to a SAP CP Cloud Connector with a location ID, the location ID must be configured in the respective destination.
  • The Location ID is configurable in the SAP Analytics Cloud system.

Resolution

  • Ensure the value of the Location ID specified in SAC matches with the corresponding subaccount configured in the SAP CP Cloud Connector.

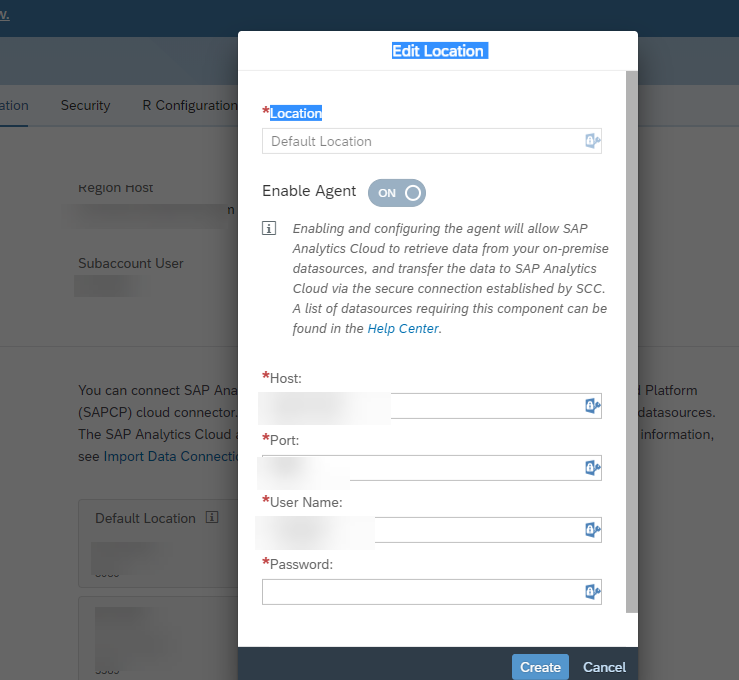

    • GO to SAP Analytics Cloud > System > Administration > Datasource Configuration > On-premise datasource > Edit Location:
      CC Location ID.png

    • SAP CP Cloud Connector:
      CC Location ID 2.png
