SAP Knowledge Base Article - Public

2777120 - Fields 'Production/inspection memo' and 'Page Format' not displayed in the Product Master

Symptom

  • The fields 'Production/inspection memo' and 'Page Format' are not displayed for a Product in the Create  / Change / Display App ( MM01 , MM02 , MM03 )
  • The fields 'Production/inspection memo' and 'Page Format' (  MARA-FERTH and MARA-FORMT ) display for some materials and not others
  • The app 'Export Master Data - Product ' allows to include the field   'Production/inspection memo' and 'Page Format' (  MARA-FERTH and MARA-FORMT ) for extraction but these fields are missing in the Product Master


Environment

  • Master Data
  • SAP S/4HANA, Cloud Edition

Reproducing the Issue

  1. Access The Fiori Launchpad .
  2. Open the App "Display Material"
  3. Input Material number
  4. press Enter.
  5. select Basic Data 1 and Basic Data 2 views

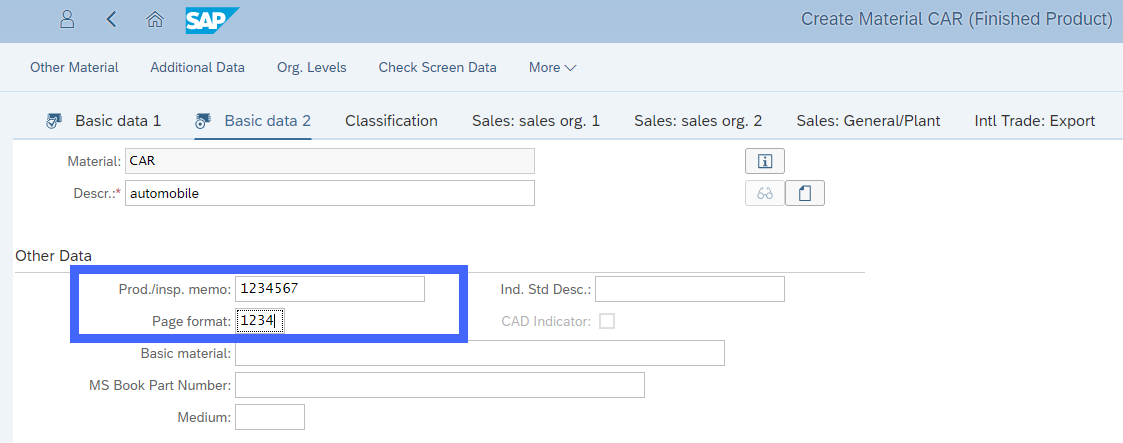

  6. Navigate to Basic Data 2 view
  7. Fields under "Other Data" are missing

Cause

The Material / Product Type which are not  of type ROH or DIEN  has the customizing flag 'Internal Purchase Orders' as 0 'No internal purchase orders allowed'

This sets the fields 'Production/inspection memo' and 'Page Format' as Hidden for the Material

  1. Open the App 'Manage your Solution'
  2. Click on 'Configure Your Solution'
  3. Search for the SSCUI ' Configure Product Types' 100306
  4. Click on the Configure button
  5. Select the Material Type to which the material belongs
  6. The field 'Internal Purchase Orders' is set as 0


The Material Types  ROH Raw materials and DIEN Service have the field selection customizing as Hidden in S4HANA Cloud which will hide these fields regardless of changes in the SSCU Configure Product Types' 100306

Resolution

 System works as Designed.

See Also

Export Master Data

Display Material

Keywords

'Raw Materials ' , Services , Spare Parts , "field reference" , 'Field sel. group' , F , 15 OMSR , OMS9 , 'Screen Reference: Product Type' , KBA , LO-MD-MM , Material Master , LO-MD-FIO-MM , Fiori UI for Product Master , Problem

Product

SAP S/4HANA Cloud Public Edition all versions ; SAP S/4HANA Cloud all versions
