SAP Knowledge Base Article - Public

2832442 - Custom Fine-Tuning Activity List Item Field is displayed with Leading Zeros


You have configured an Object Value Selector(OVS) on your Custom Fine-Tuning Activity and expect the selection to be displayed as a number, however leading zeros are appended to the number upon selection like shown in the below screenshot.


Field A,B and C refer to the custom fields defined in the Business Configuration Object.


  • SAP Hybris Cloud For Customer
  • SAP Cloud Applications Studio

Reproducing the Issue


You have created a custom PDI solution that contains a Business Adaption Catalog along with the:

  • Business Configuration Object
  • Business Configuration Set
  • Business Configuration View

Steps to reproduce the issue:

  1. Go to the Business Configuration Work Center.
  2. Go the Implementation Projects View.
  3. Open the Activity List for the Current Project.
  4. Navigate to your custom fine-tuning activity and open it.
  5. Open the OVS in your fine-tuning activity and select the value.
  6. The value is displayed with leading zeros in the fine-tuning activity list.


This is caused by the UI Designer>DataModel properties being incorrectly set.


Adjust the following properties in the DataModel & Designer tabs of the UI Designer:

  1. Change the CCTS Type to "identifier" for the affected field of the Business Configuration View as shown in the screenshot below.

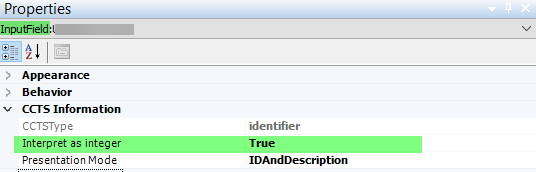

  1. Change the "Interpret as integer" property to "True" for the OVS Field as shown in the screenshot below.


See Also

PDI, BC, BCO, Business Configuration, Fine-Tuning, UI Designer, Custom


KBA , AP-RC-UIF , C4C UI Framework , Problem


SAP Cloud Applications Studio all versions ; SAP Cloud for Customer add-ins all versions ; SAP Cloud for Customer core applications all versions
