2860724 - Custom field is not upsertable for ODATA API using EmpEmployment Entity - SuccessFactors HXM Suite

Symptom

When creating a custom field for EmpEmployment entity and performed an upsert request resulted the following error message:

"Property customString20 is not upsertable. Please check the property setting in Admin Center > OData API Data Dictionary or the entity metadata"

Image/data in this KBA is from SAP internal systems, sample data, or demo systems. Any resemblance to real data is purely coincidental.

Environment

  • SAP SuccessFactors HXM Suite
    • OData API

Reproducing the Issue

1. Go Manage Business Configuration

2. Under Employee central, select employmentInfo

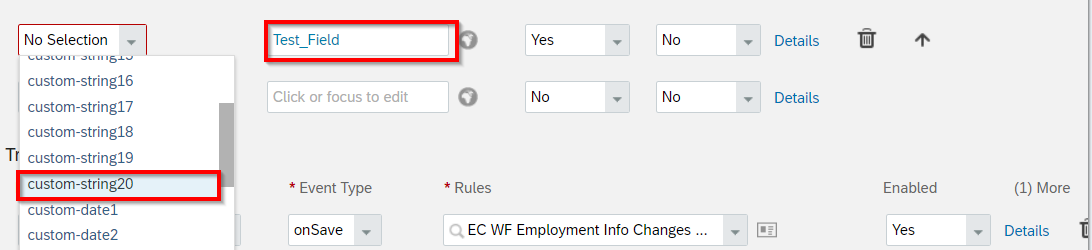

3. Create a new custom field by selecting a custom string in the drop down and choose custom-string20


4. Provide a label of your custom-string20

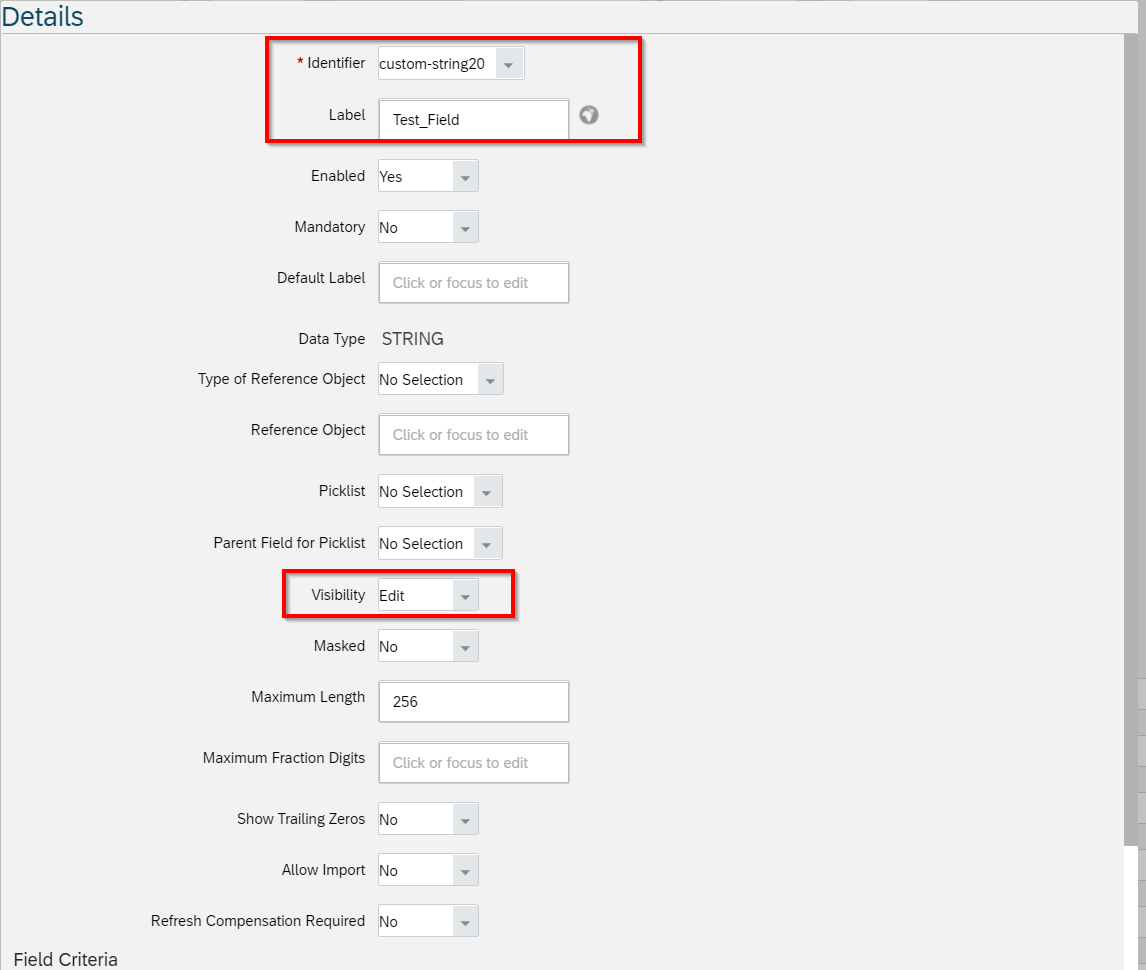

5. Select Details

6.Change the Visibility option to Edit


7. Save configuration


8. Refresh ODATA Metadata > Follow KBA 2171588 - OData API Metadata Refresh and Export


9. Perform Upsert Request

Cause

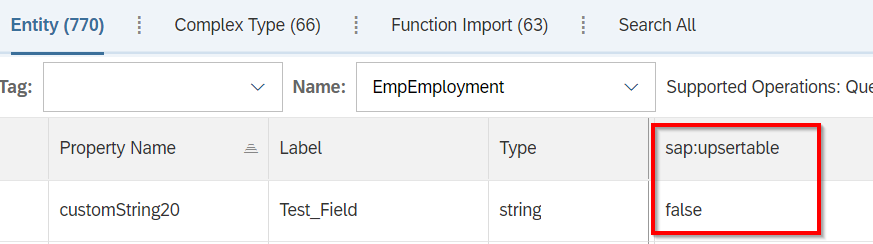

The created custom field value for sap: upsertable is set to false, even if the visibility functionality is set to Edit.


The reason behind this behavior is explained in this KBA 2467879 - To add custom field in termination portlet


In which there is a certain range of custom string allowable for employment info list.

In the given KBA, below are the range for custom string allowable for Employment Info list:

CUSTOM STRING

custom-string1–15
customstring21–80

Resolution

Create a custom string between the following range for Employment Info list as described  in KBA 2467879 - To add custom field in termination portlet

CUSTOM STRING

custom-string1–15
customstring21–80

From Manage Business Configuration:

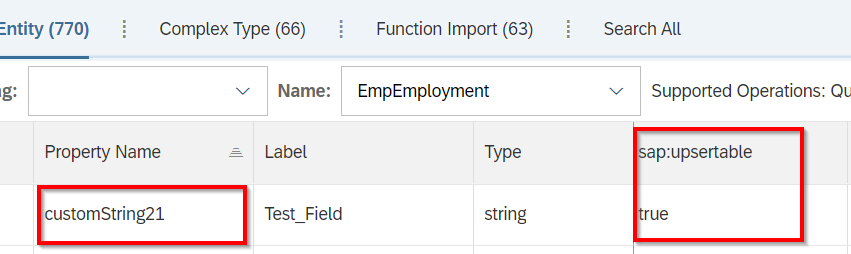

ODATA API data Dictionary:

sap:upsertable = true


Please, note that this solution is applicable for custom fields only. Standard fields may not have the upsertable attribute changed.
