2885351 - iXBRL - validation fails for "dei:EntityIncorporationStateCountryCode"

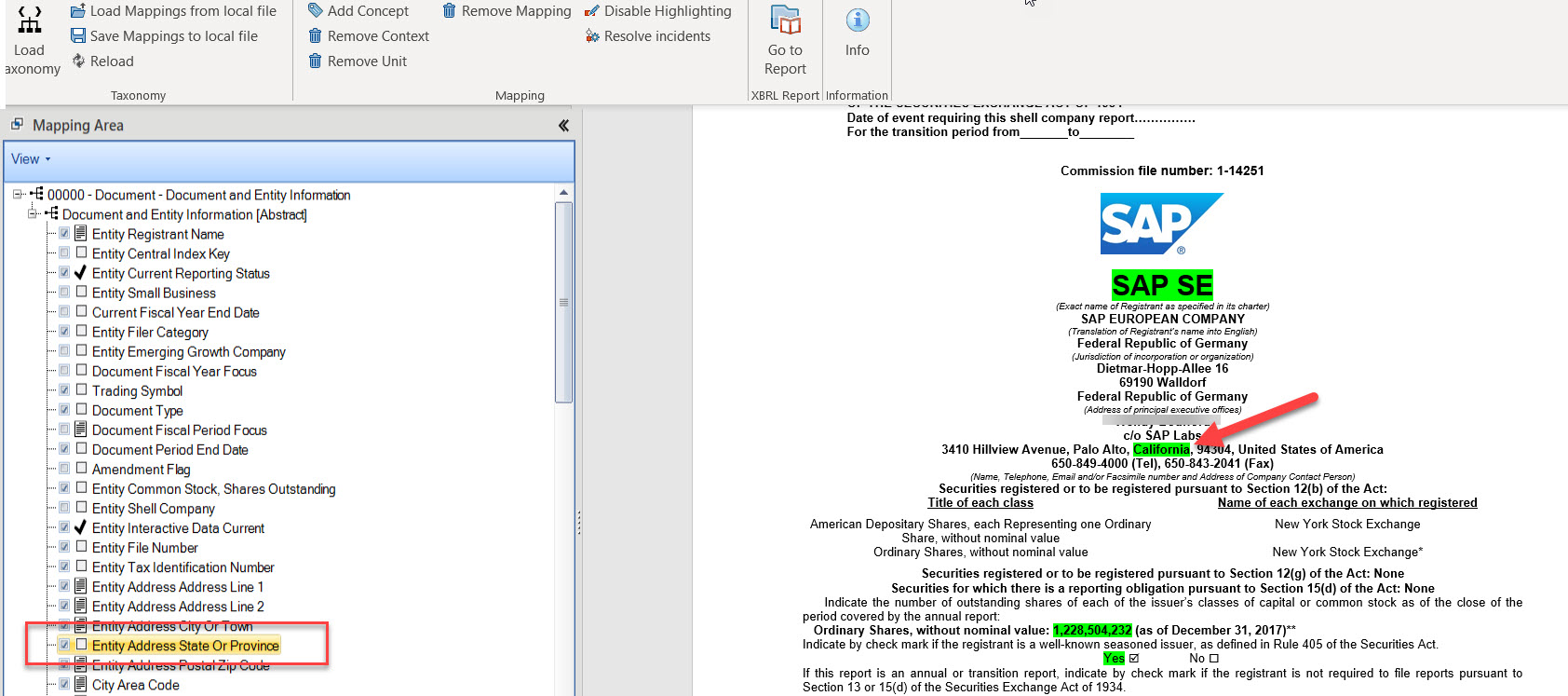

On the cover page, we have mapped the state (California) to the "dei:EntityIncorporationStateCountryCode

 The instance is generated without any errors

However, the fact in the instance file is the following

<ix:nonNumeric name="dei:EntityIncorporationStateCountryCode" contextRef="ResignationDate" format="ixt-sec:stateprovnameen">California</ix:nonNumeric>

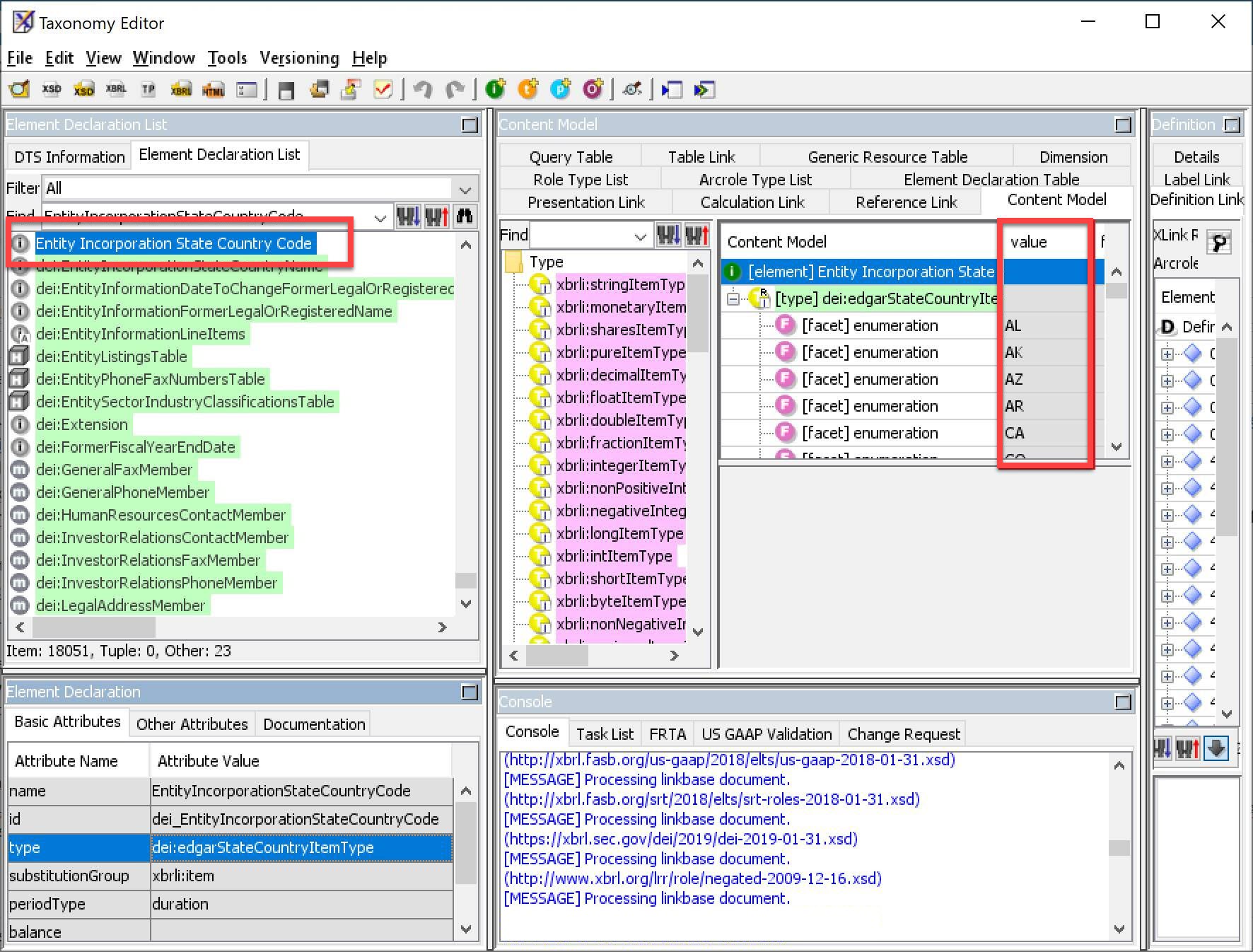

This is not correct, as the taxonomy in this case requires a transformation because the EntityIncorporationStateCountryCode concept of the DEI taxonomy is of type dei:edgarStateCountryItemType which accepts only 2 characters value (in this case “CA”).

This leads to this validation error

Error "An error has occurred while populating data model: Invalid string value: ""California"" does not match any of the enumerated values in { 'AL', 'AK', 'AZ', 'AR', 'CA', 'CO', 'CT', 'DE', 'DC', 'FL', 'GA', 'HI', 'ID', 'IL', 'IN', 'IA', 'KS', 'KY', 'LA', 'ME', 'MD', 'MA', 'MI', 'MN', 'MS', 'MO', 'MT', 'NE', 'NV', 'NH', 'NJ', 'NM', 'NY', 'NC', 'ND', 'OH', 'OK', 'OR', 'PA', 'RI', 'SC', 'SD', 'TN', 'TX', 'UT', 'VT', 'VA', 'WA', 'WV', 'WI', 'WY', 'A0', 'A1', 'A2', 'A3', 'A4', 'A5', 'A6', 'A7', 'A8', 'A9', 'B0', 'B2', 'Y6', 'B3', 'B4', 'B5', 'B6', 'B7', '1A', 'B8', 'B9', 'C1', '1B', '1C', 'C3', 'C4', '1D', 'C5', 'C6', 'C7', 'C8', '1F', 'C9', 'D1', 'G6', 'D0', 'D2', 'D3', '1E', 'B1', 'D4', 'D5', 'D6', 'D9', 'E0', 'X2', 'E2', 'E3', 'E4', 'Z4', 'E8', 'E9', 'F0', 'F2', 'F3', 'F4', 'F6', 'F7', 'F8', 'F9', 'G0', 'Y3', 'G1', 'G2', 'L7', '1M', 'G3', 'G4', '2N', 'G7', '1G', 'G9', 'G8', 'H1', 'H2', 'H3', 'H4', '1J', '1H', 'H5', 'H7', 'H6', 'H8', 'H9', 'I0', 'I3', 'I4', '2C', 'I5', 'I6', '2Q', '2M', 'J0', 'J1', 'J3', 'J4', 'J5', 'J6', 'GU', 'J8', 'Y7', 'J9', 'S0', 'K0', 'K1', 'K4', 'X4', 'K2', 'K3', 'K5', 'K6', 'K7', 'K8', 'K9', 'L0', 'L2', 'Y8', 'L3', 'L6', 'L8', 'M0', 'Y9', 'M2', '1P', 'M3', 'J2', 'M4', 'M5', 'M6', '1N', 'M7', '1R', 'M8', 'M9', 'N0', 'N1', 'N2', '1Q', 'N4', 'N5', '1U', 'N6', 'N7', 'N8', 'N9', 'O0', 'O1', '1T', 'O2', 'O3', 'O4', '2P', 'O5', '1K', '1S', 'O9', 'P0', 'Z5', 'P1', 'P2', 'P3', 'E1', 'T6', 'P5', 'P6', 'P7', 'P8', '1W', 'Q2', 'Q3', 'Q4', 'Q5', 'Q6', 'Q7', '1V', 'Q8', 'P4', 'R0', '1Y', '1X', 'R1', 'R2', 'R4', 'R5', 'R6', 'R8', 'R9', 'S1', 'PR', 'S3', 'S4', 'S5', '1Z', 'S6', 'Z0', 'U8', 'U7', 'U9', 'Z1', 'V0', 'V1', 'Y0', 'S8', 'S9', 'T0', 'T1', 'Z2', 'T2', 'T8', 'U0', '2B', '2A', 'D7', 'U1', 'T3', '1L', 'U3', 'F1', 'V2', 'V3', 'L9', 'V6', 'V7', 'V8', 'V9', 'F5', '2D', 'W0', 'W1', 'Z3', 'W2', 'W3', 'W4', 'W5', 'W6', 'W8', '2E', 'W7', '2G', 'W9', '2H', 'C0', 'X0', 'X1', '2J', 'X3', '2K', '2L', 'X5', 'Q1', 'D8', 'VI', 'X8', 'U5', 'T7', 'Y4', 'Y5', 'XX' }. (C:\Users\Administrator\Desktop\SAP_html.xbrl)"

Disclosure Management

iXBRL instance transformation validation error , KBA , dm , EPM-DSM-GEN , DM core functionalities , Bug Filed
