2988777 - How to always display an Image or Text Object on the right side of a cross-tab in Crystal Reports?

Symptom

  • Picture displays in the middle of the cross-tab.
  • Image or Text Object added on the right side of a cross-tab, does not display at the expected location on the report.
  • Cross-tab in Crystal Reports dynamically grows to the right, and therefore Text or Image added to the right of it, show up in the middle of the cross-tab. How to always show the Text Object or Image to the right of the cross-tab?

Environment

  • SAP Crystal Reports 2013
  • SAP Crystal Reports 2016
  • SAP Crystal Reports 2020

Reproducing the Issue

  1. In Crystal Reports, create a report based on any data source.
  2. Insert a cross-tab on the report.
  3. In the design view of the report, add a Text Object, Field, or an Image to the top right corner of the cross-tab.
  4. When viewing the report, the cross-tab dynamically grow horizontally, and does not show the object added to the top right of the cross-tab.
    How to always show the Text or Image to the right of a cross-tab?

Resolution

  • To maintain the position of the objects added on the right of a cross-tab, check the section option: "Relative Positions"

    1. In Crystal Reports, open the report containing the cross-tab.

    2. Under the menu "Report", select "Section Expert"

    3. Select the section in which the cross-tab is located.

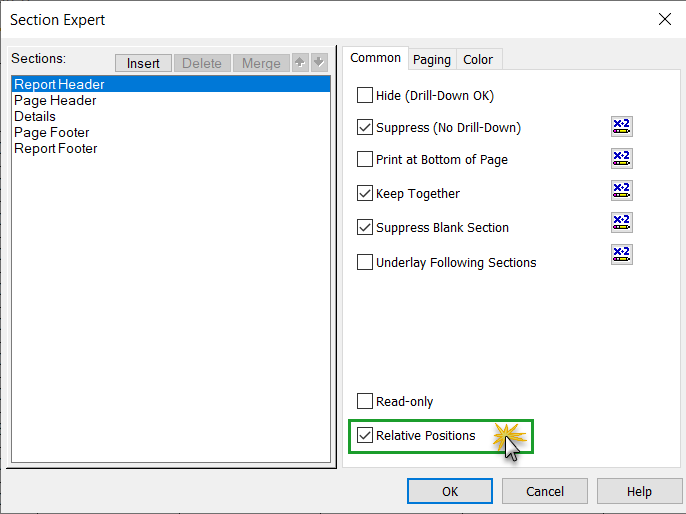

    4. On the right side, under the tab "Common", check the option "Relative Positions"


    5. Click "OK" to accept the change.


      Now, when viewing the report, the objects, like a Text Object, Fields, or Image will dynamically move with the cross-tab.
