3000236 - Payment List with watermark "TEST COPY"

Symptom

The watermark "Test Copy" appears on form of Payment List in app Manage Automatic Payments.

Image/data in this document is from SAP internal systems, sample data, or demo systems. Any resemblance to real data is purely coincidental.

Environment

S/4HANACLOUD

Reproducing the Issue

To view a payment list in the Manage Automatic Payments app, proceed as follows:

  1. Switch to the Payments Processed tab.
  2. Search for the payment that you want to view.
  3. Open the payment from the search result.
  4. Switch to the PAYMENTS tab.
  5. Choose the Export to PDF icon above the Payments table.

Cause

New payment list form FIN_FO_PAYM_LIST_V2 contains watermark "TEST COPY"

Resolution

To remove "TEST COPY" from payment list:

  1. Download the standard master form SOMU_FORM_MASTER_A4 for predelivered form template FIN_FO_PAYM_LIST_V2 via APP ‘Maintain Form Templates’ (App ID F1434)

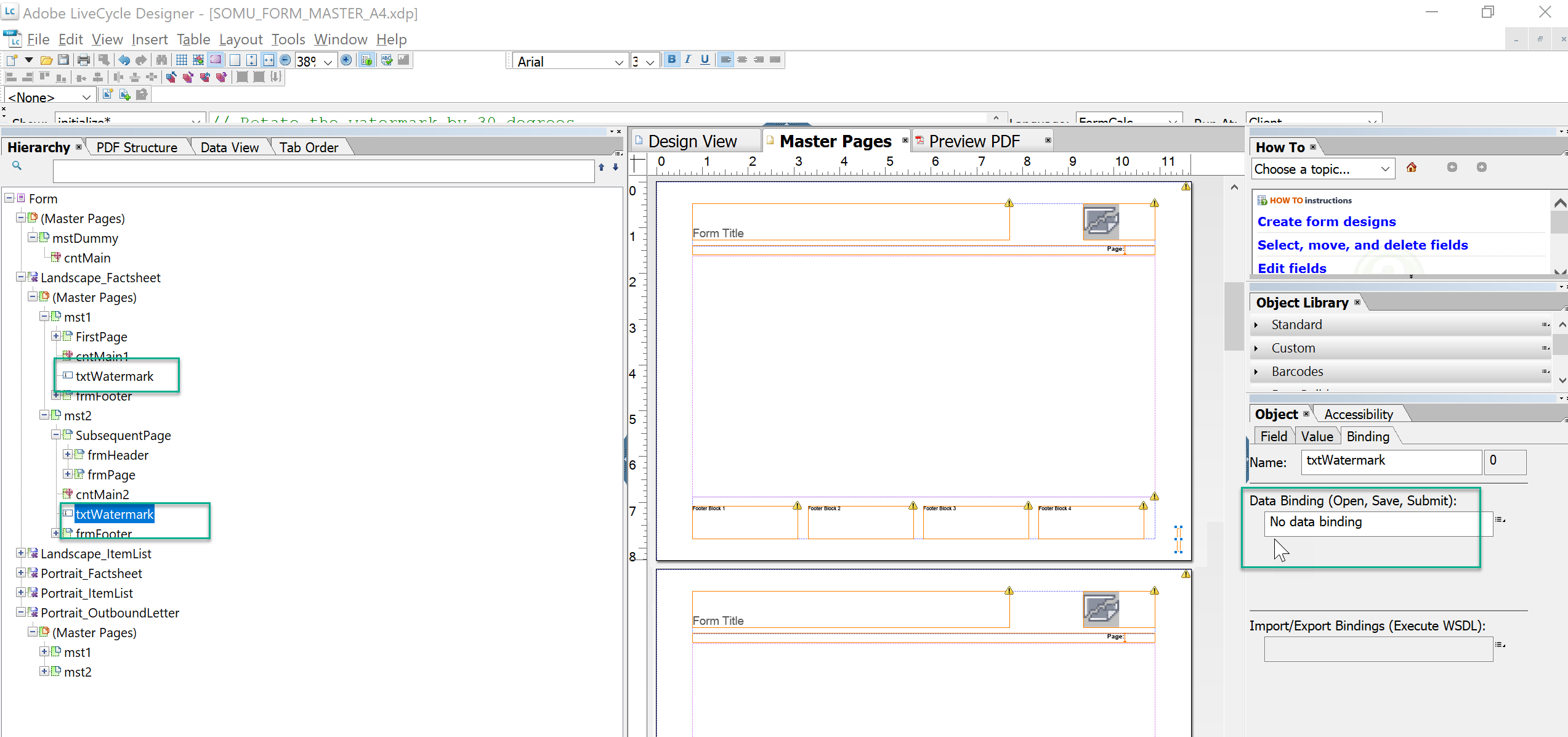

  2. Open SOMU_FORM_MASTER_A4.xdp via ‘Adobe LiveCycle Designer’.
  3. Remove $.FormMaster.WatermarkText from the Data Binding of txtWatermark on both FirstPage and SubsequentPage. Refer to the attached XDP file ‘SOMU_FORM_MASTER_A4 _Changed’.


  4. Save form example YY1_SOMU_FORM_MASTER_CHANGED.xdp
  5. In app Maintain Form Templates.
  6. Click on New
  7. Enter values for Form Template Name, Language,
  8. Select Form Template File Name: example SOMU_FORM_MASTER_CHANGED.xdp
  9. Data Source: FDP_OM_FORM_MASTER_SRV
  10. Form Type :Master

  11. In Manage Your Solution -> Configure Your Solution, Create the following new content via SSCUI Define Rules for Determination of Master Form Template  ID 101184.  Based on this customizing,  the new upload master form is linked to payment list form FIN_FO_PAYM_LIST_V2

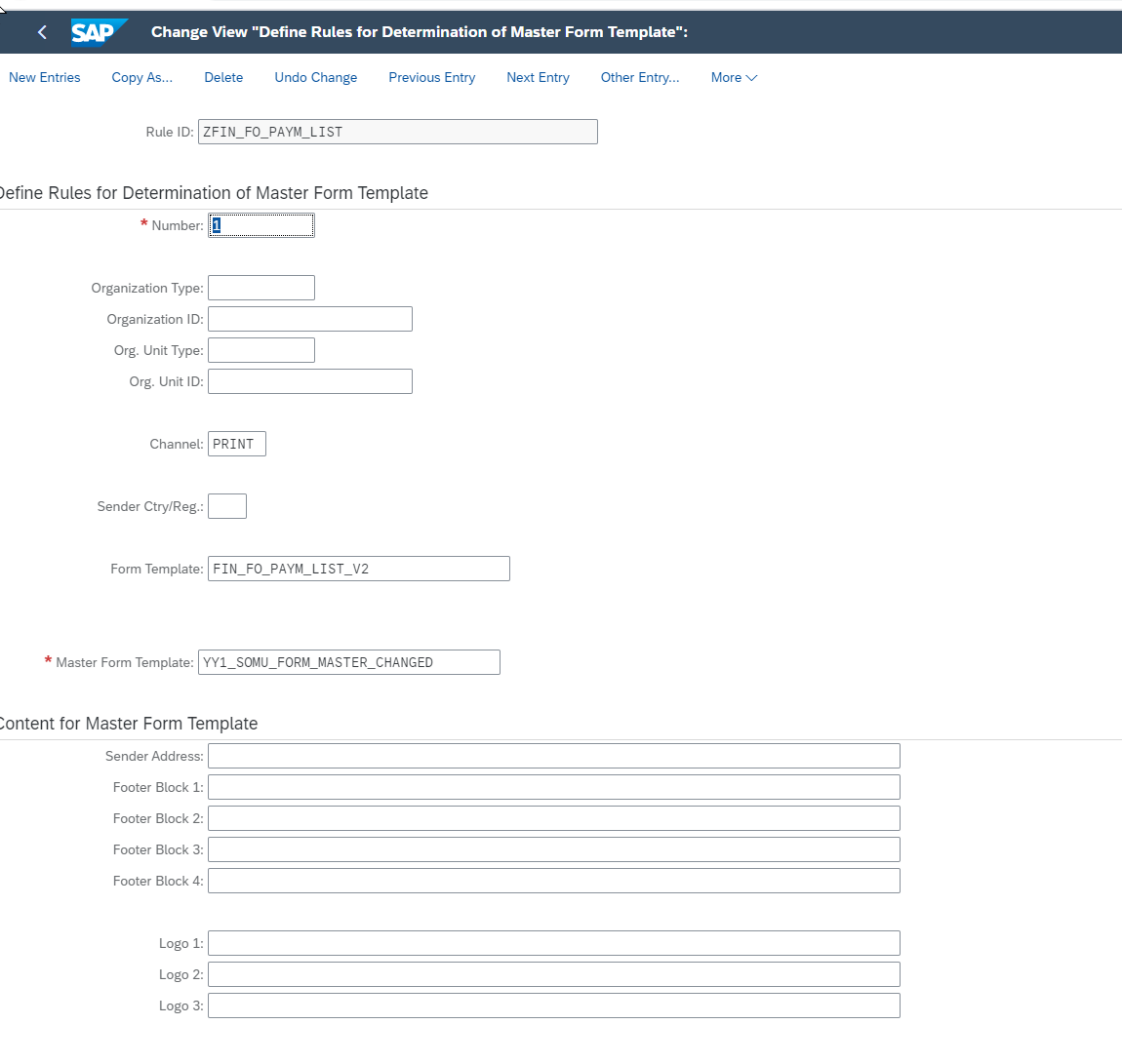

    In Define Rules for Determination of Master Form Template Sender Ctry/Reg.: should be empty. See screenshot

    (For FIN_FO_PAYM_LIST_V2, it is predelivered templates with default configuration, there is no need to associate it to form template master SOMU_FORM_MASTER_A4 again in SSCUI 101184. The rule needs to be maintained in SSCUI if a new Form Template Master is created.)


  12. Based on those changes, retest the payment list cases in APP ‘Manage Automatic Payment’.   There is no watermark in new PDF generation.
  13. See blog Output Management – Customize Content Form for Outgoing Check regarding Q to P transport steps.



See Also

Configuring the Output of Payment Proposal Lists and Payment Lists

Output Management – Customize Content Form for Outgoing Check

Keywords

FIN_FO_PAYM_LIST_V2, F1434, payment list, proposal, F0770, Manage Automatic Payments , KBA , FI-BL-PT-FO , payment forms , FI-FIO-AP , Fiori UI for Accounts Payable , FI-BL-PT-FO-2CL , payment forms (Public Cloud) , Problem

Product

SAP S/4HANA Cloud all versions

Attachments

SOMU_FORM_MASTER_A4 _Changed.xdp
