SAP Knowledge Base Article - Public

3101455 - Order Reason field missing in Web dynpro app Journal entry Analyzer

Symptom

You have to create a data source extension "YY1_***" and wants to extend the Order reason field but it does not get reflected in Web Dynpro App Journal Entry Analyzer.

"Image/data in this KBA is from SAP internal systems, sample data, or demo systems. Any resemblance to real data is purely coincidental."



Environment

SAP S/4HANA Cloud

Reproducing the Issue

  1. Open App Customer fields and Logic.
  2. Go to Data source extension tab.
  3. Create a extension for data source I_GLACCOUNTLINEITEMCUBE.
  4. Drill down on Sales document.
  5. Select Order reason checkbox to extend the order reason field.
  6. Press the Save button.
  7. Press the Publish button.
  8. Go to App Journal Entry Analyzer.
  9. Search for the field Order Reason.



Resolution

Order Reason field is available as the attribute of the field "Sales Order". Include the attribute field.

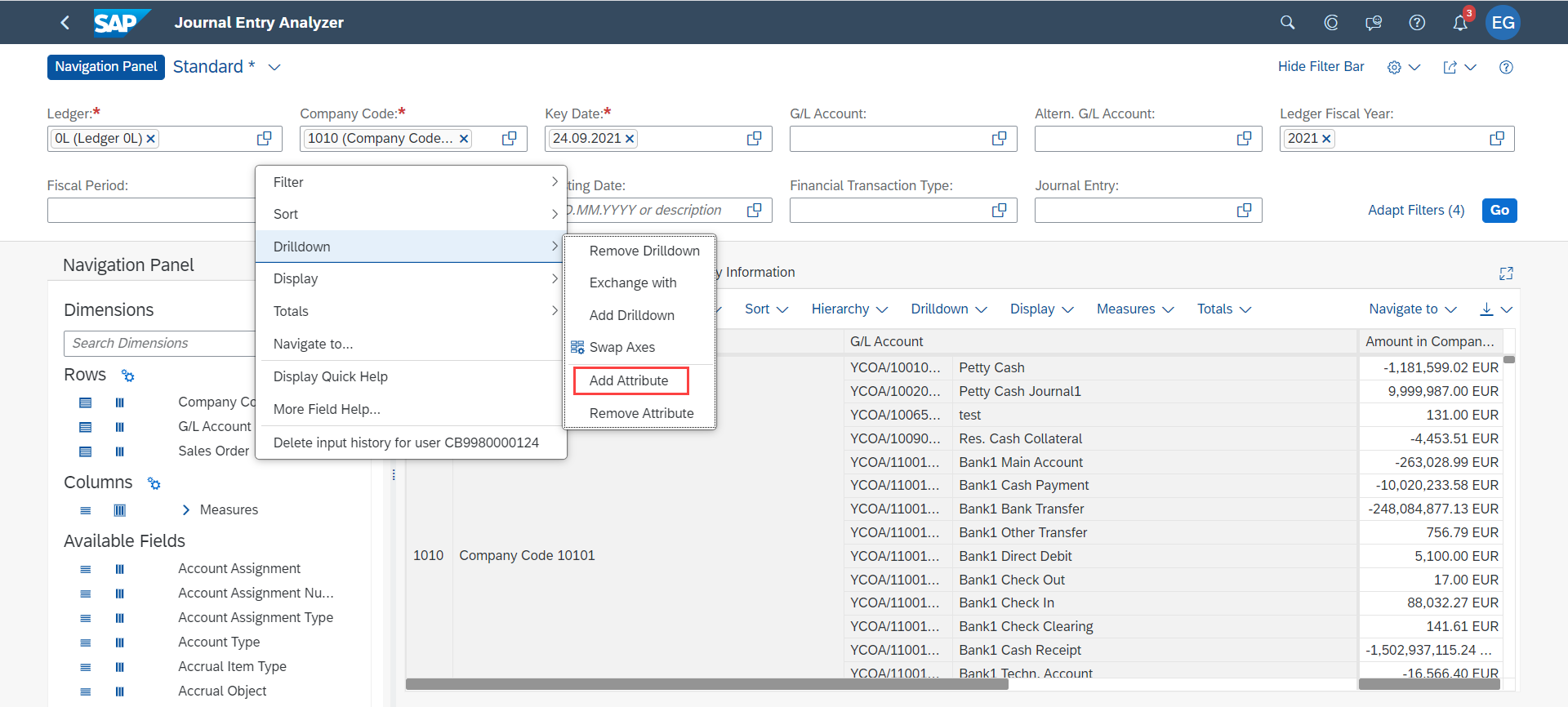

  1. Go to Navigation Panel on the App Journal Entry Analyzer.
  2. Include the association field "Sales order" to rows.
  3. Right click in the sales order field.
  4. Go to Drilldown > Add Attribute.

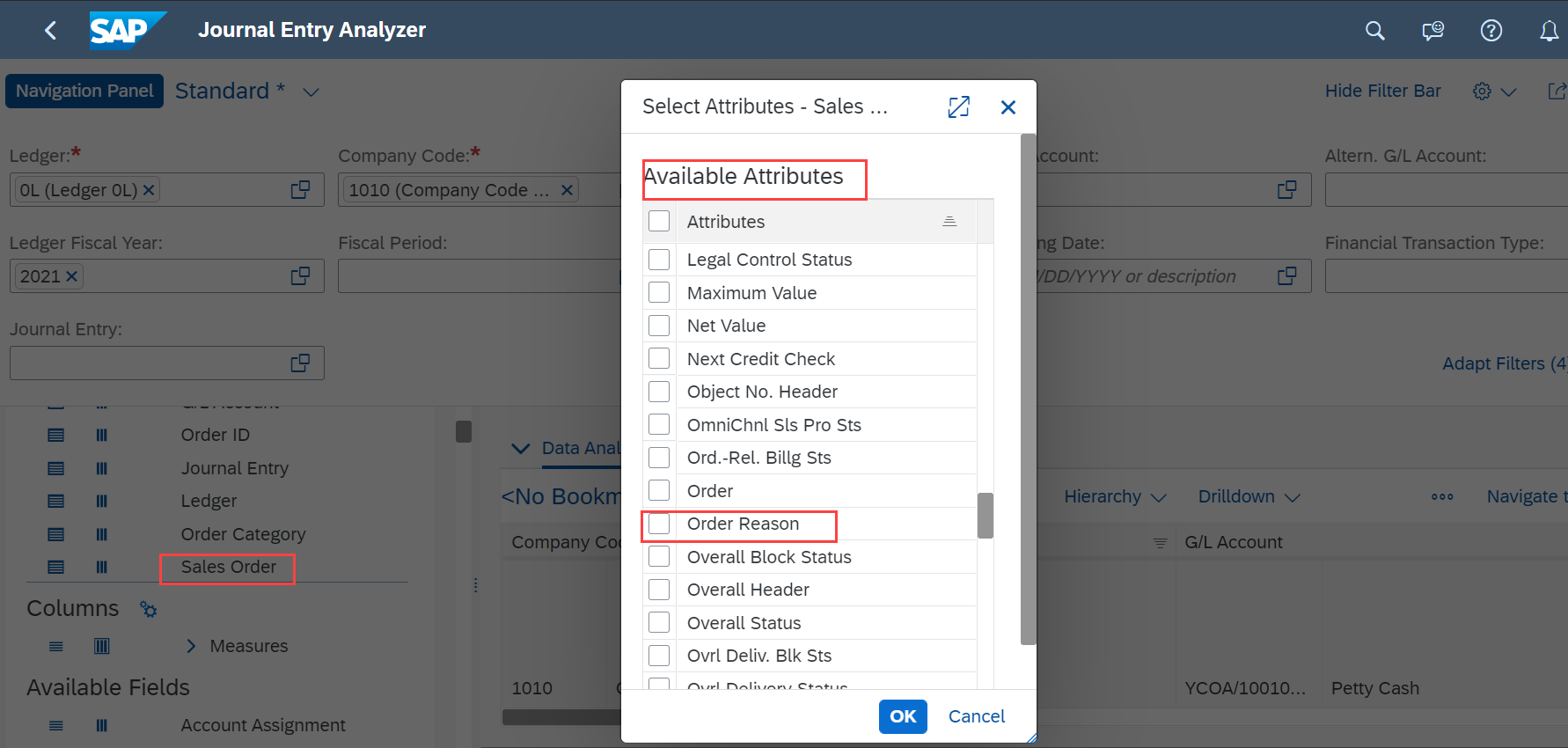

  5. Select Order Reason checkbox from the available attributes list.
  6. Press OK button.

Keywords

F0956 , journal, entry, analyzer, order, reason, extend, field, sales order, I_GLACCOUNTLINEITEMCUBE, UI, adaptation, web, dynprpo, apps, GUI , KBA , FI-FIO-GL , Fiori UI for General Ledger Accounting , Problem

Product

SAP S/4HANA Cloud Public Edition all versions
