SAP Knowledge Base Article - Public

3106779 - How to change Images in Analytics Application dynamically

Symptom

You need to use the Image Widget and you would like to change the images dynamically.

Resolution

Note: The images are added through URL, so they must be in the web with Public visualization, otherwise the Images will be blocked by CORS policy.

Step 1:

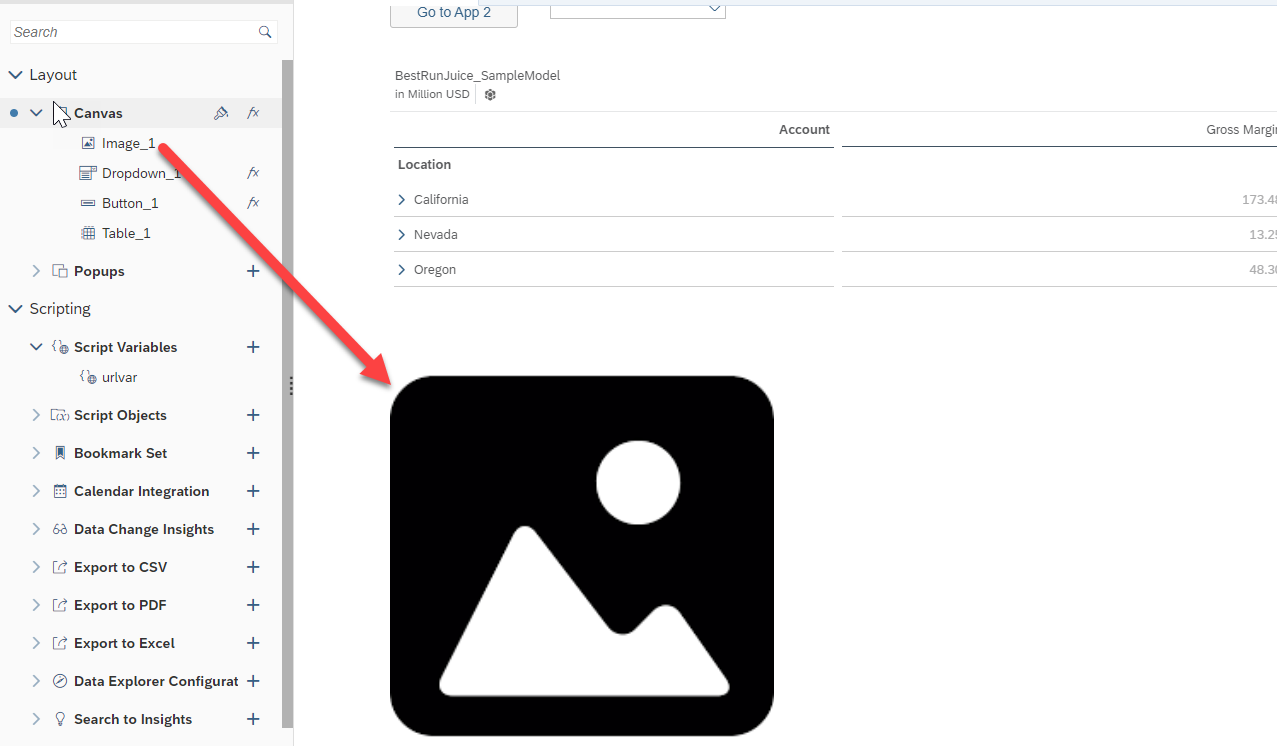

 - First you must add the Image Widget to your canvas:

 - You will need to upload a dummy image in order to add the widget

 - You hide the dummy image using the following script on OnInitialization function: Image_1.setvisible(false)




Step 2:

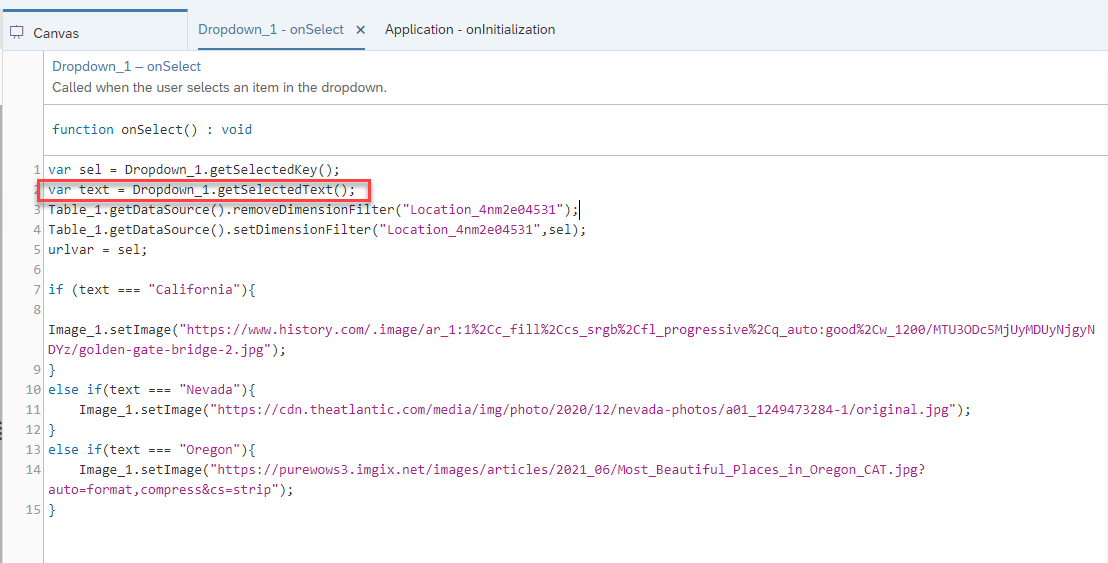

- On this example we are using the selection of a dropdown and combining it with an IF statement for applying images according to the selection:

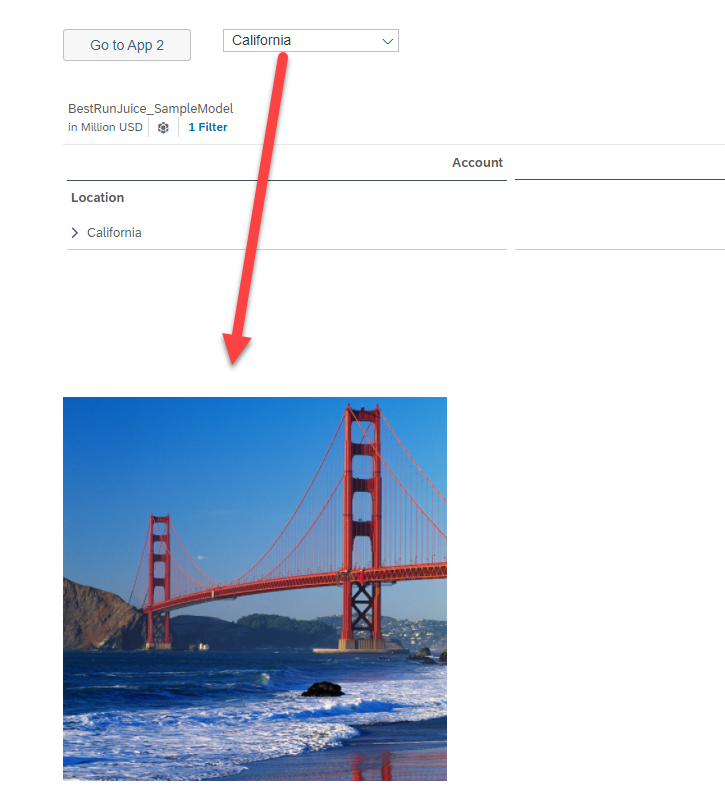

- The result will as following:





Keywords

Dynamic, Images, Image, Widget, script, analytic application, sac , KBA , LOD-ANA-AD , Analytics Designer , How To

Product

SAP Analytics Cloud 1.0
