3154298 - Node <Amt> in the tag <AdjstmntAmtAndRsn> is missing in the payment media xml file after 2202 upgrade.

Symptom

After 2202 upgrade, Node <Amt> (<Amt Ccy='xxx'>yyyyyy</Amt>) in the tag <AdjstmntAmtAndRsn>  is missing in the payment media xml file. Due to this, bank is rejecting the payment file.

"Image/data in this KBA is from SAP internal systems, sample data, or demo systems. Any resemblance to real data is purely coincidental."

Environment

SAP S/4 HANA Cloud

Cause

In the latest changes to CGI Format Mappings, the whole tag <AdjstmntAmtAndRsn> has been removed, if there is no Withholding tax.

Resolution

Kindly follow the below steps as per your requirement:

If you would like to display the tag only when WHT amount is not 0:

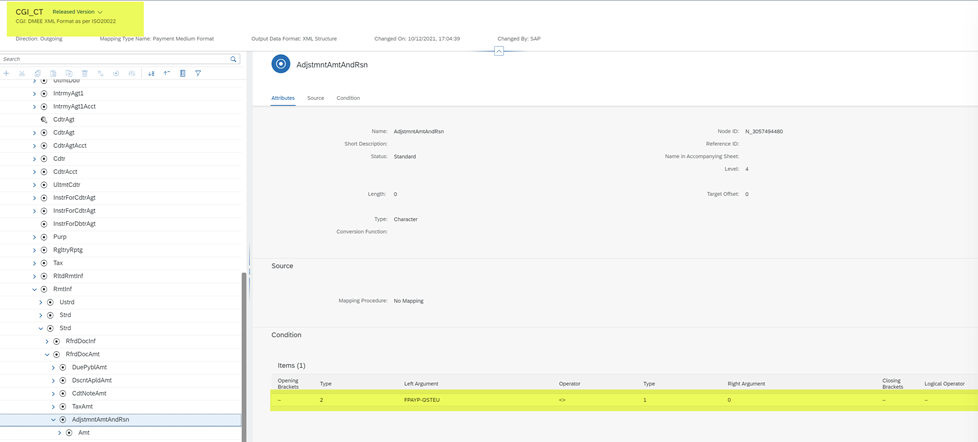

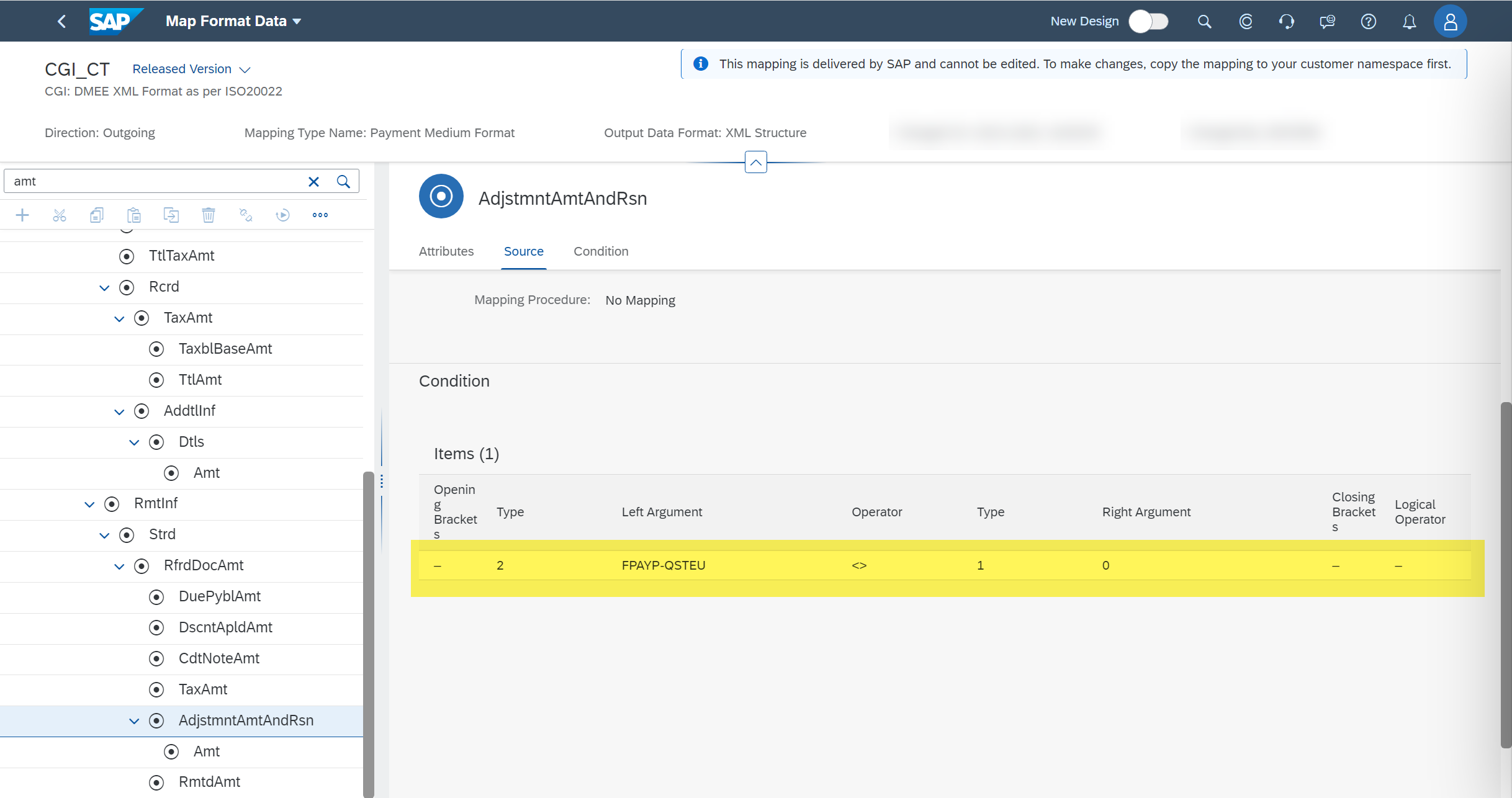

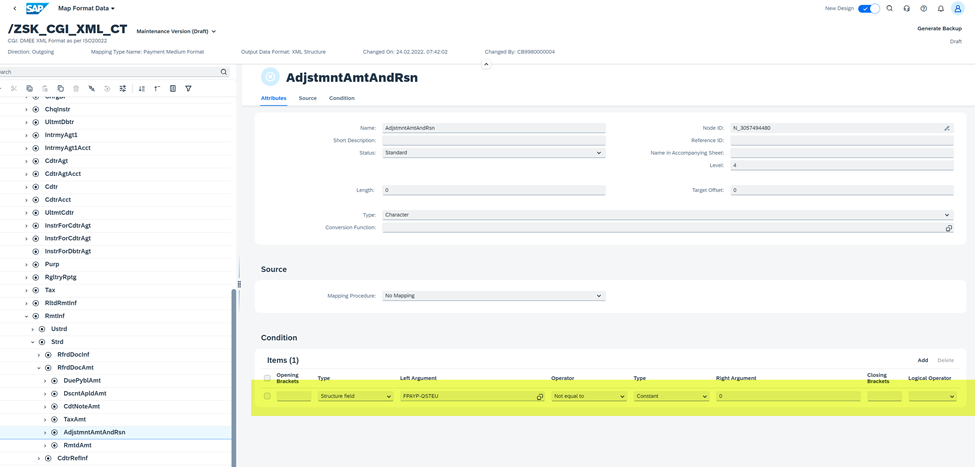

  • Please add the below condition from the standard CGI_CT to your custom payment format in the SSCUI Map Format Data For Payments - 100558. You can compare the tag <AdjstmntAmtAndRsn> in your custom format with our standard format mapping in the SSCUI Map Format Data For Payments - 100558.
    The condition to be added is: "FPAYP-QSTEU <> 0". This means that the tag will be displayed only when the WHT amount is not 0.



 If you would like to display the tag even if WHT is 0:

  • Go to the SSCUI 100558- Map Format Data for Payments and do the following changes:

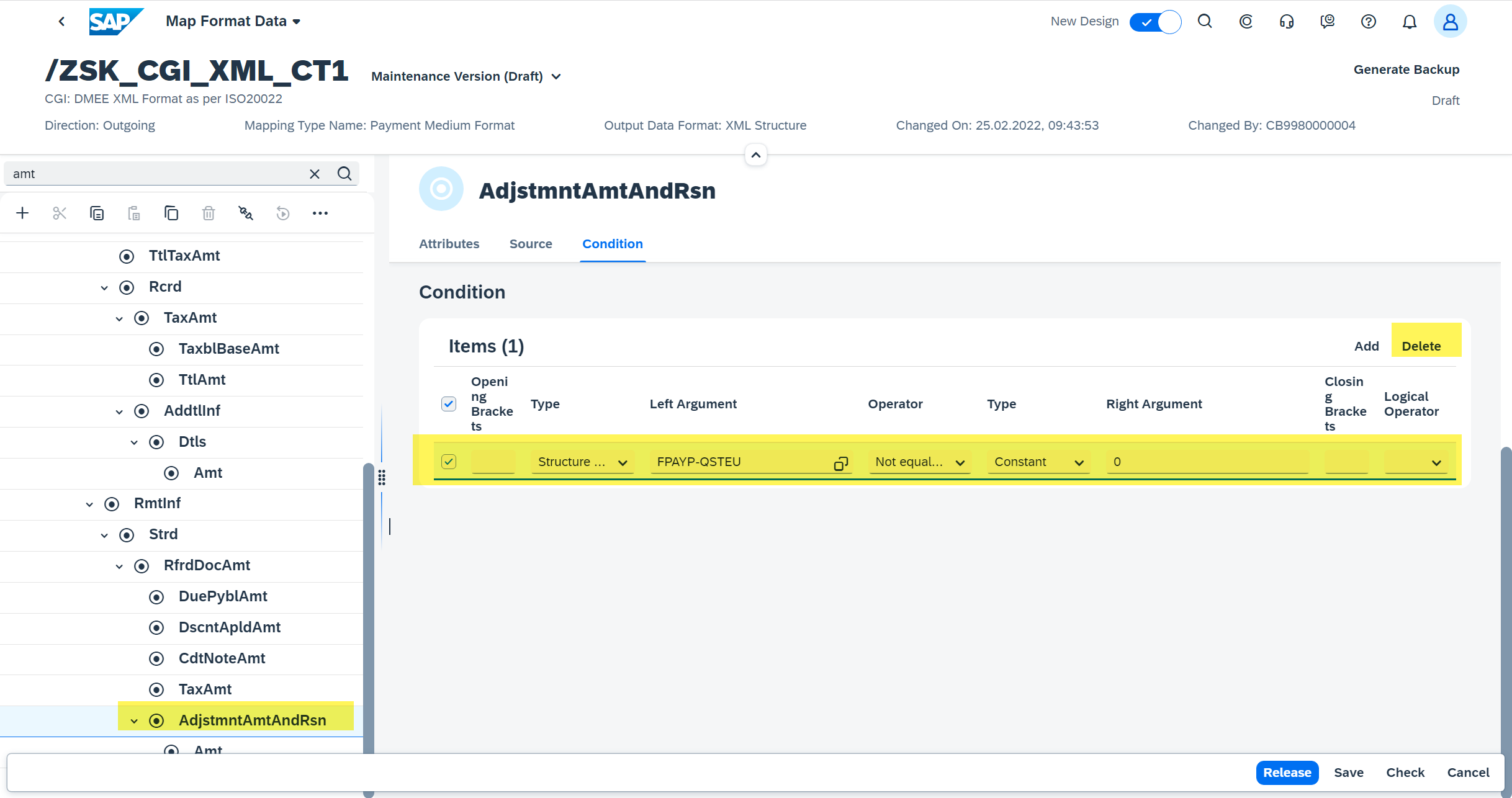

  • Remove the condition on the node <AdjstmntAmtAndRsn>, if there is any.

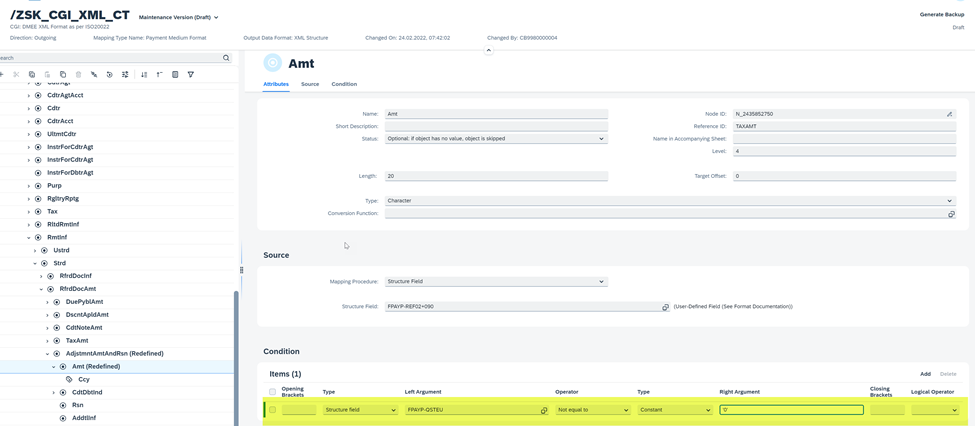

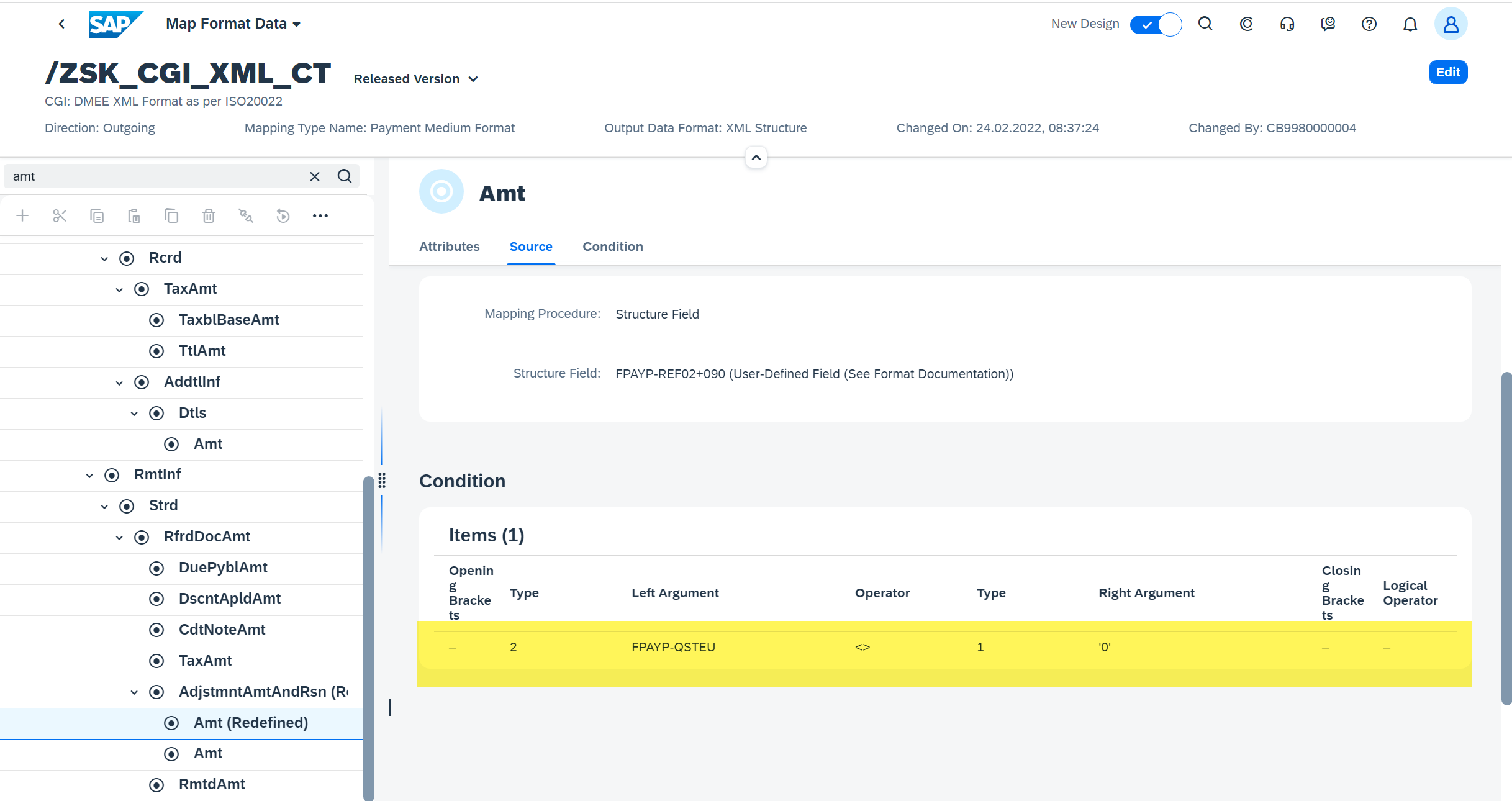

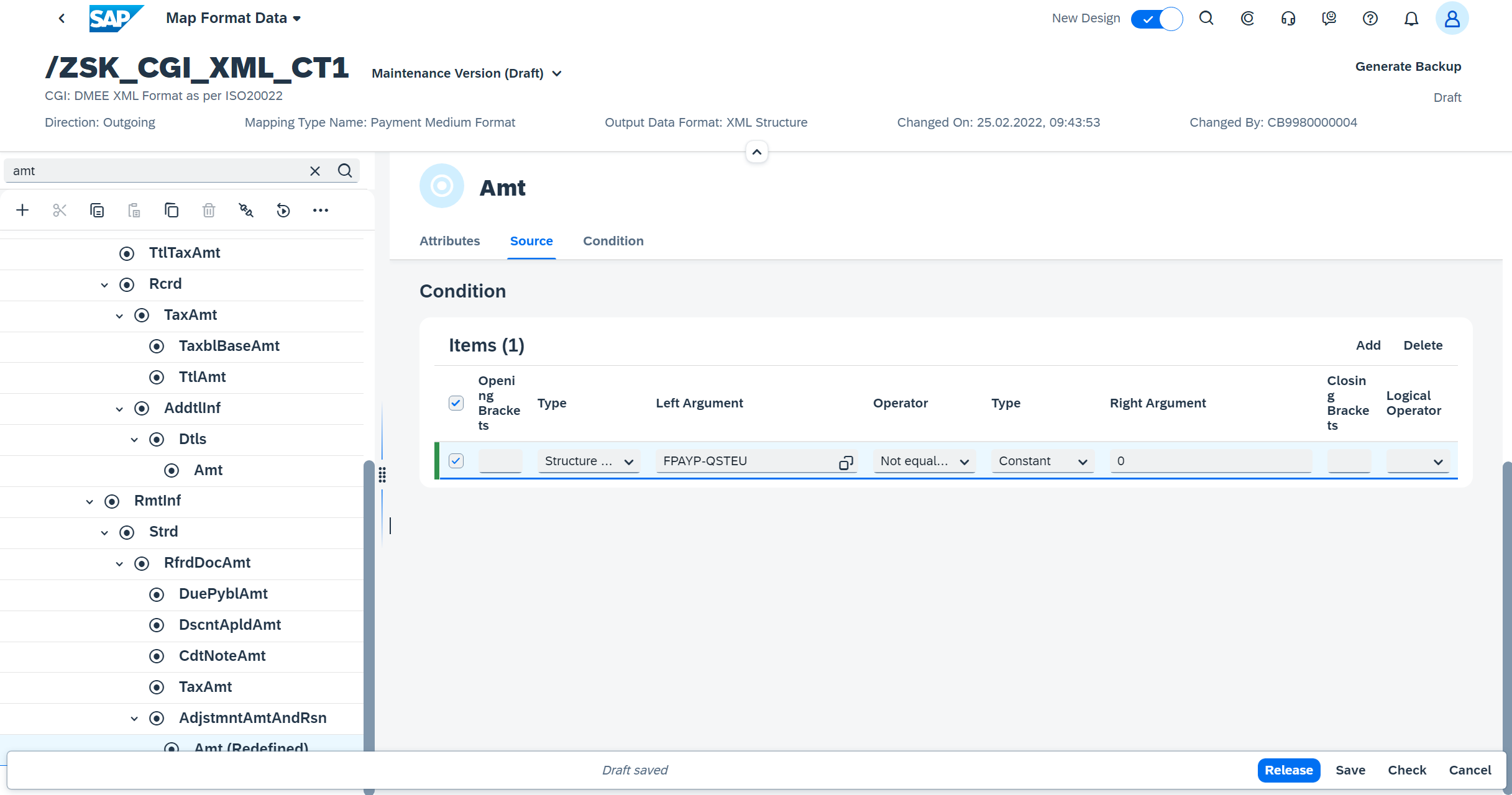

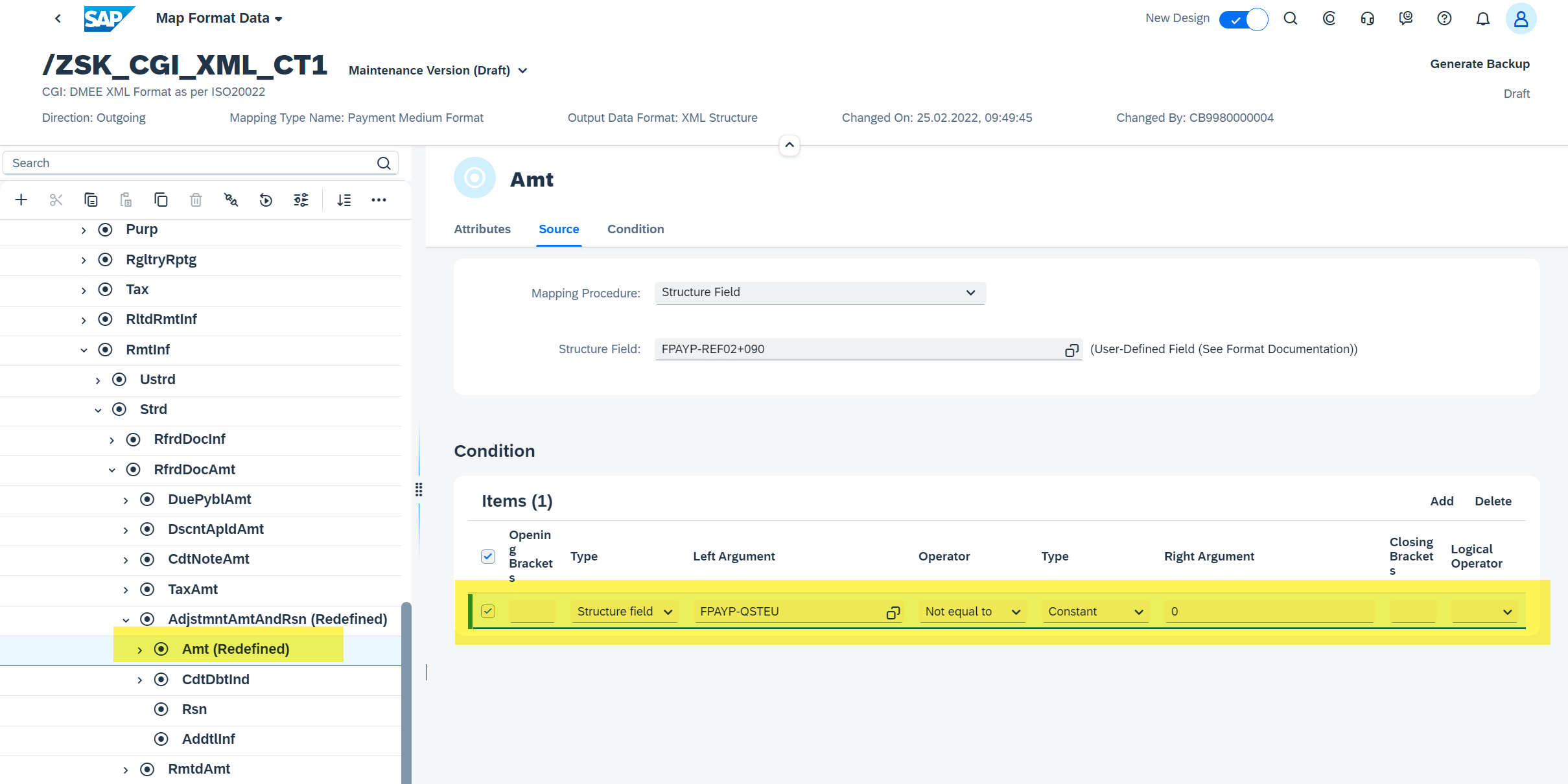

  • Create the condition "FPAYP-QSTEU <> 0"  in the node <Amt>.

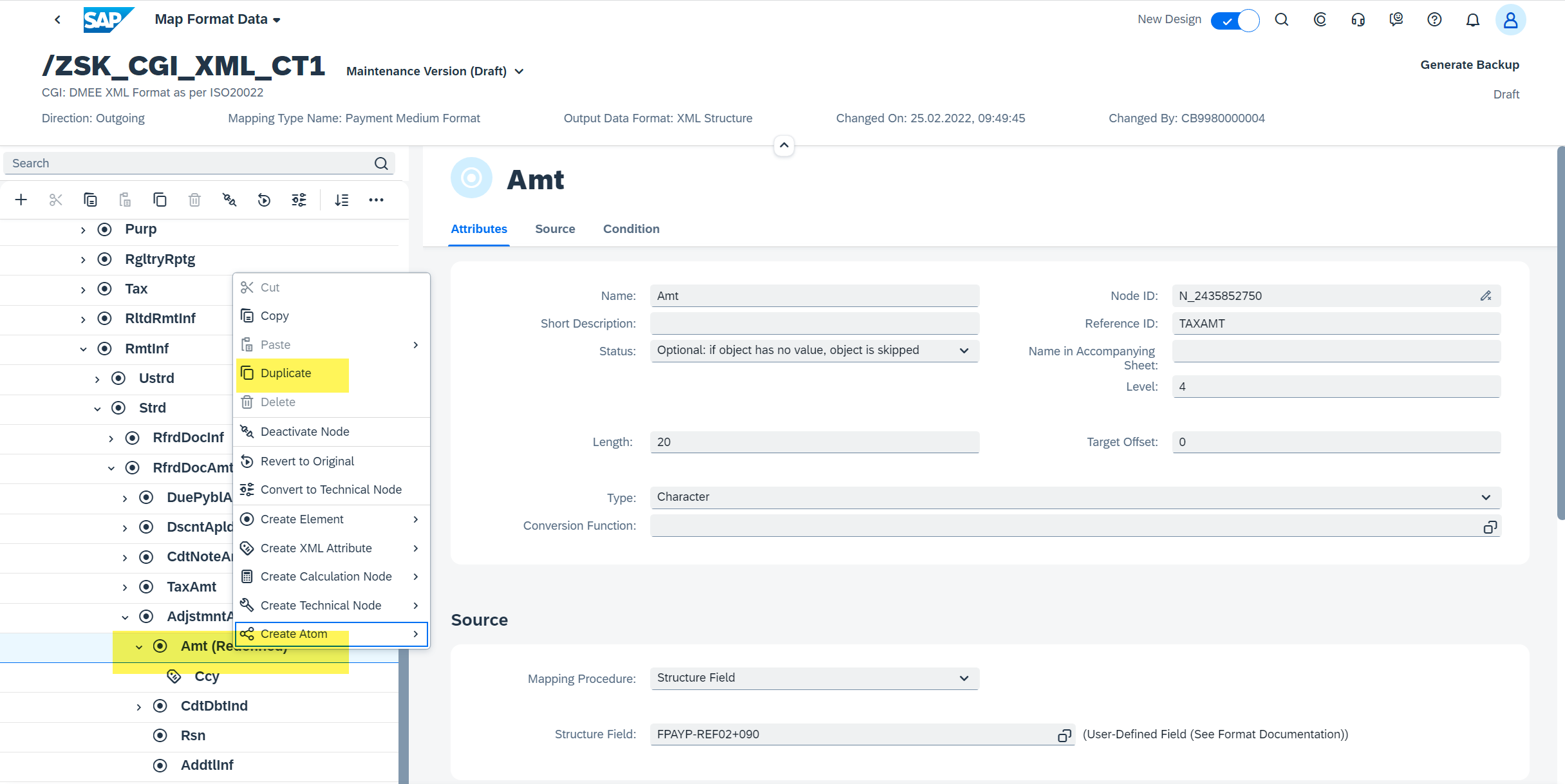

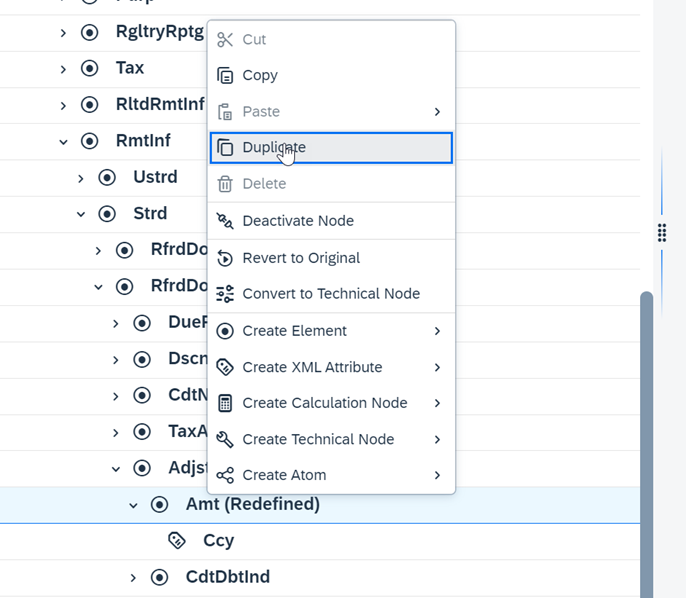

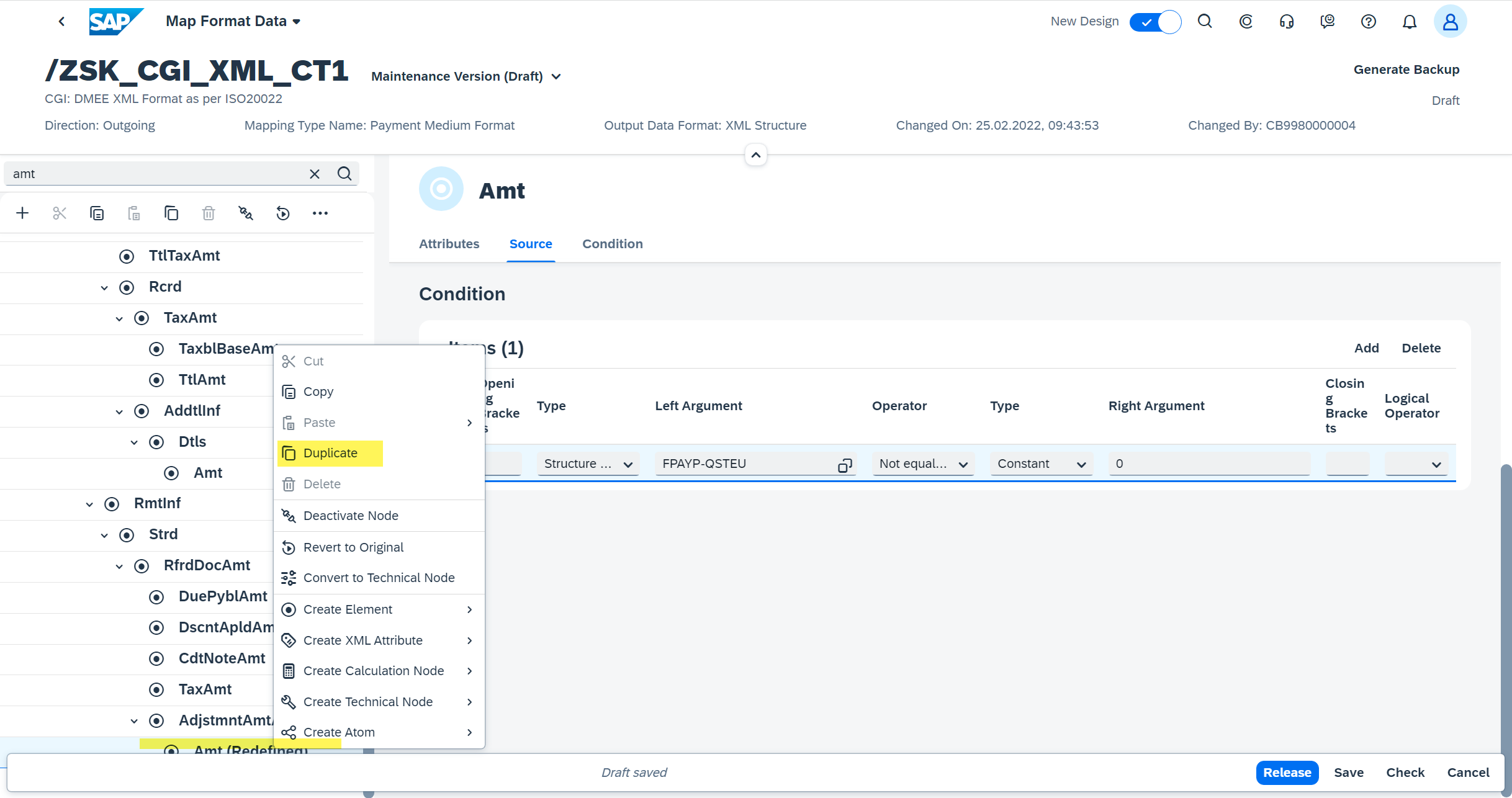

  • Duplicate the node <Amt>.

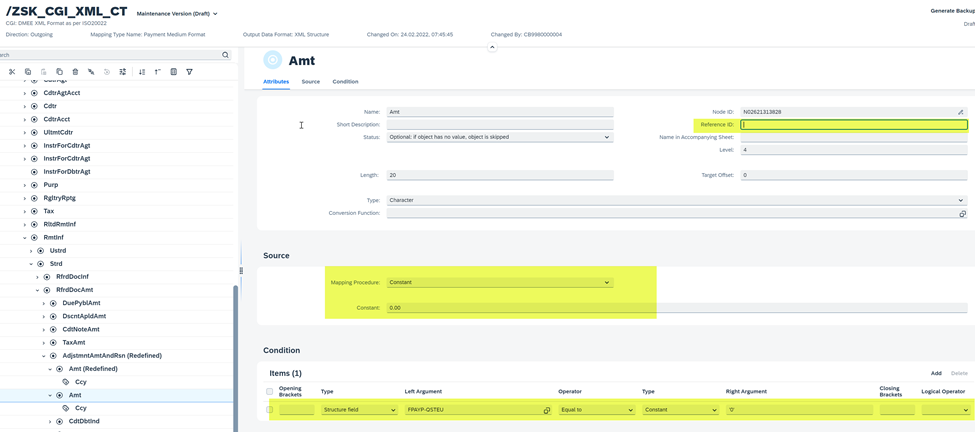

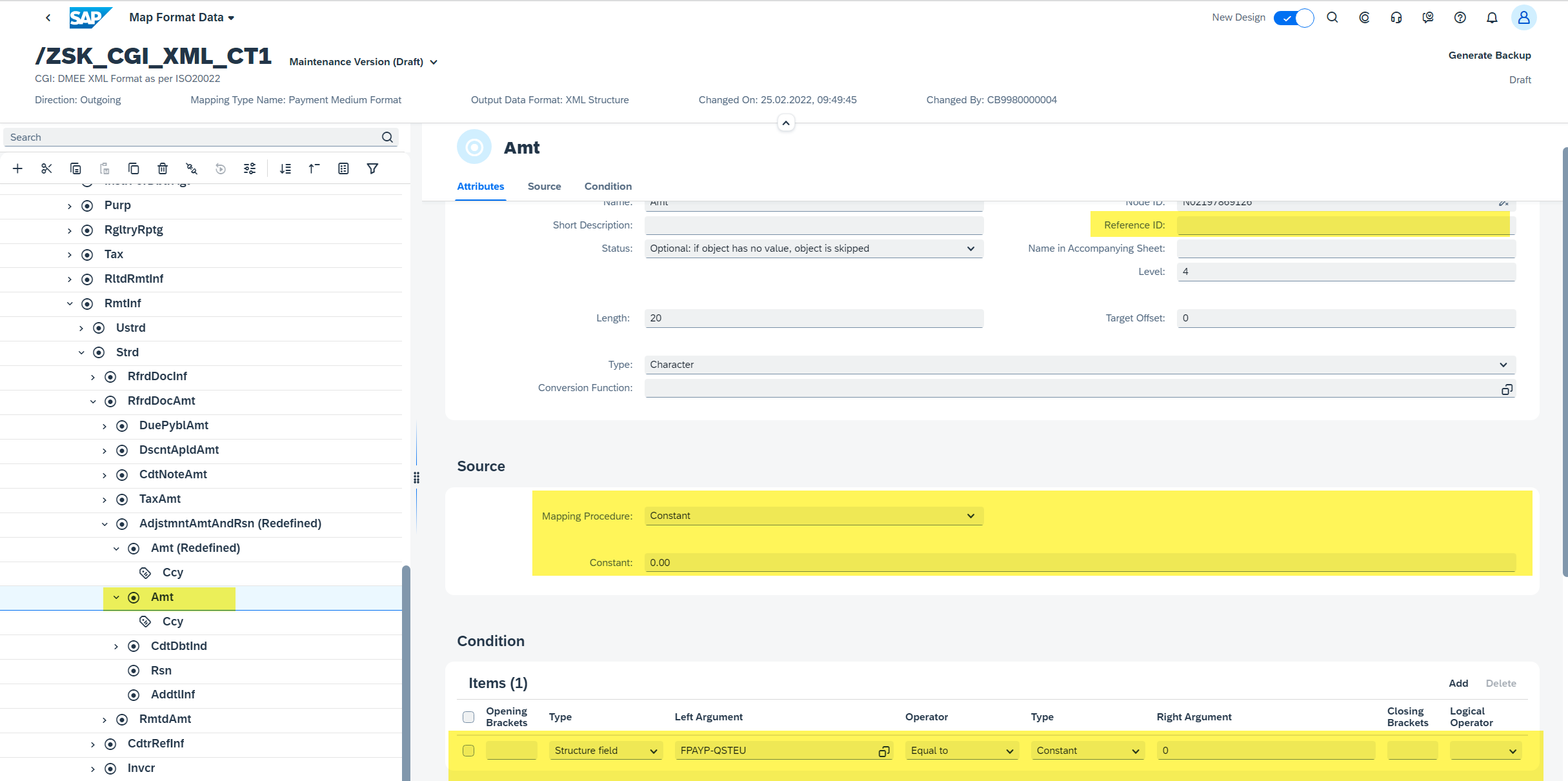

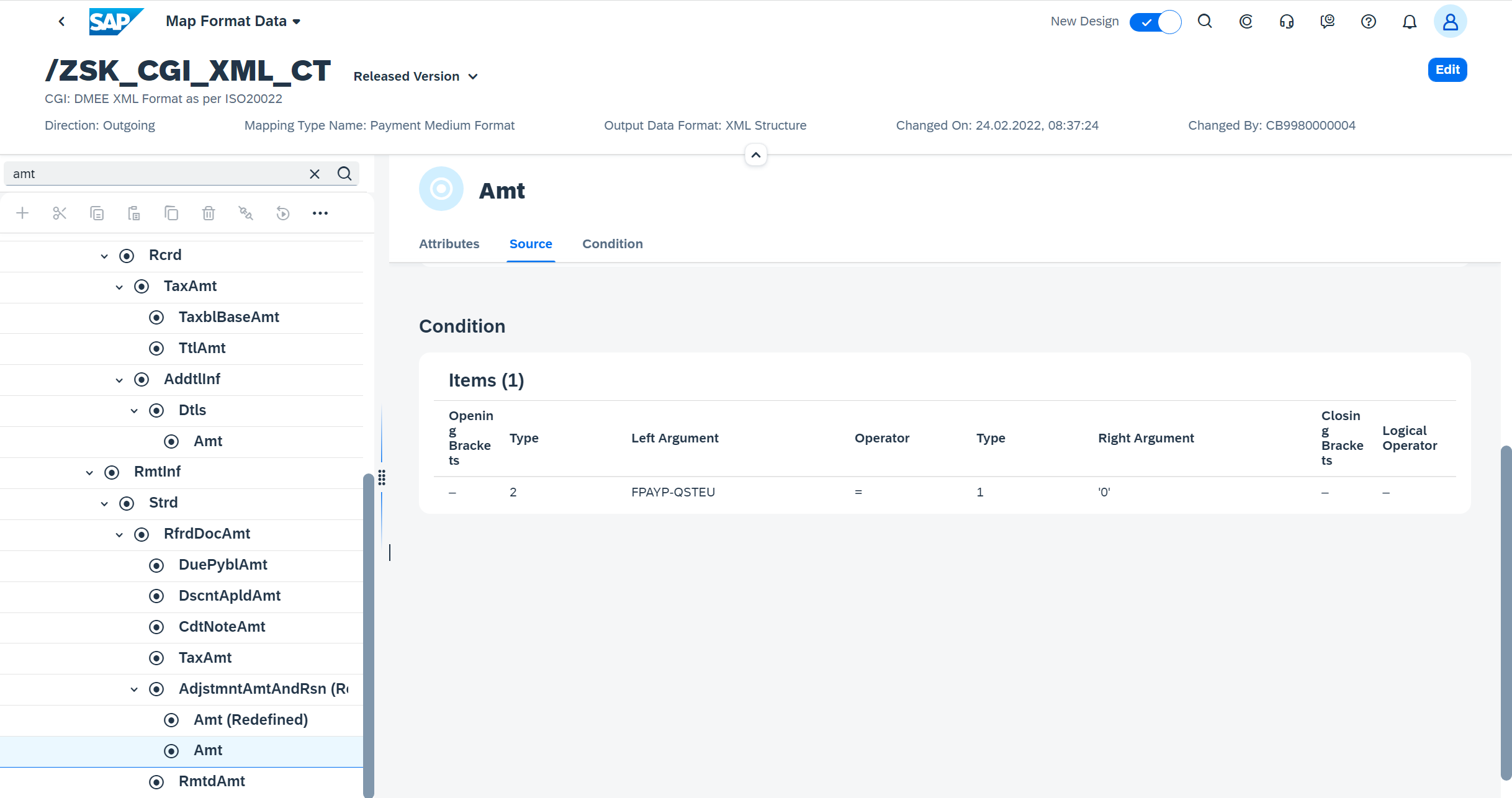

  • Create an opposite condition in the second occurrence of <Amt>, remove the Reference ID and change the mapping to constant and maintain the constant as 0.00 (zero in the local currency).

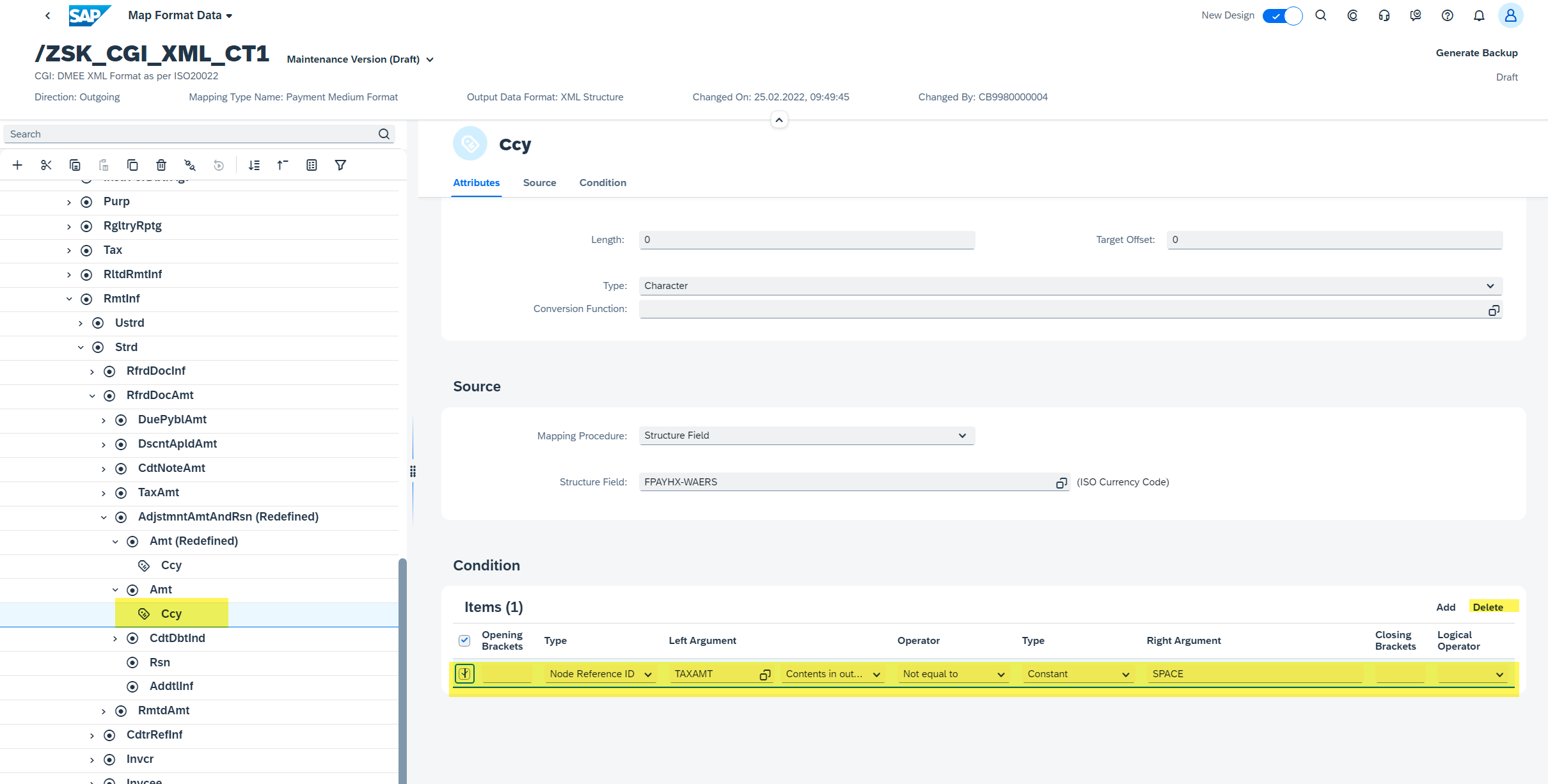

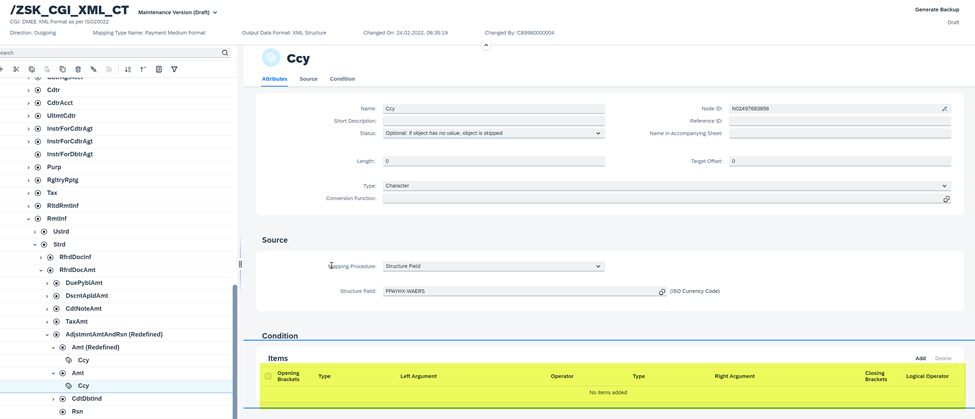

  • Remove the condition from the new Ccy attribute.

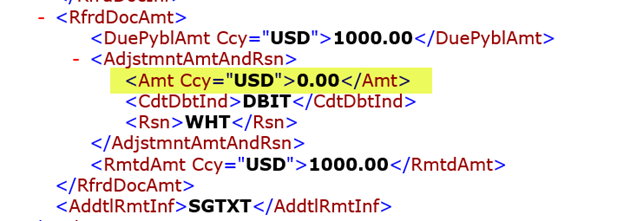

Result:
