SAP Knowledge Base Article - Public

3227773 - Hierarchy of the dimension is displayed in the table on SAC when use BW live connection even it is inactive in the query definition

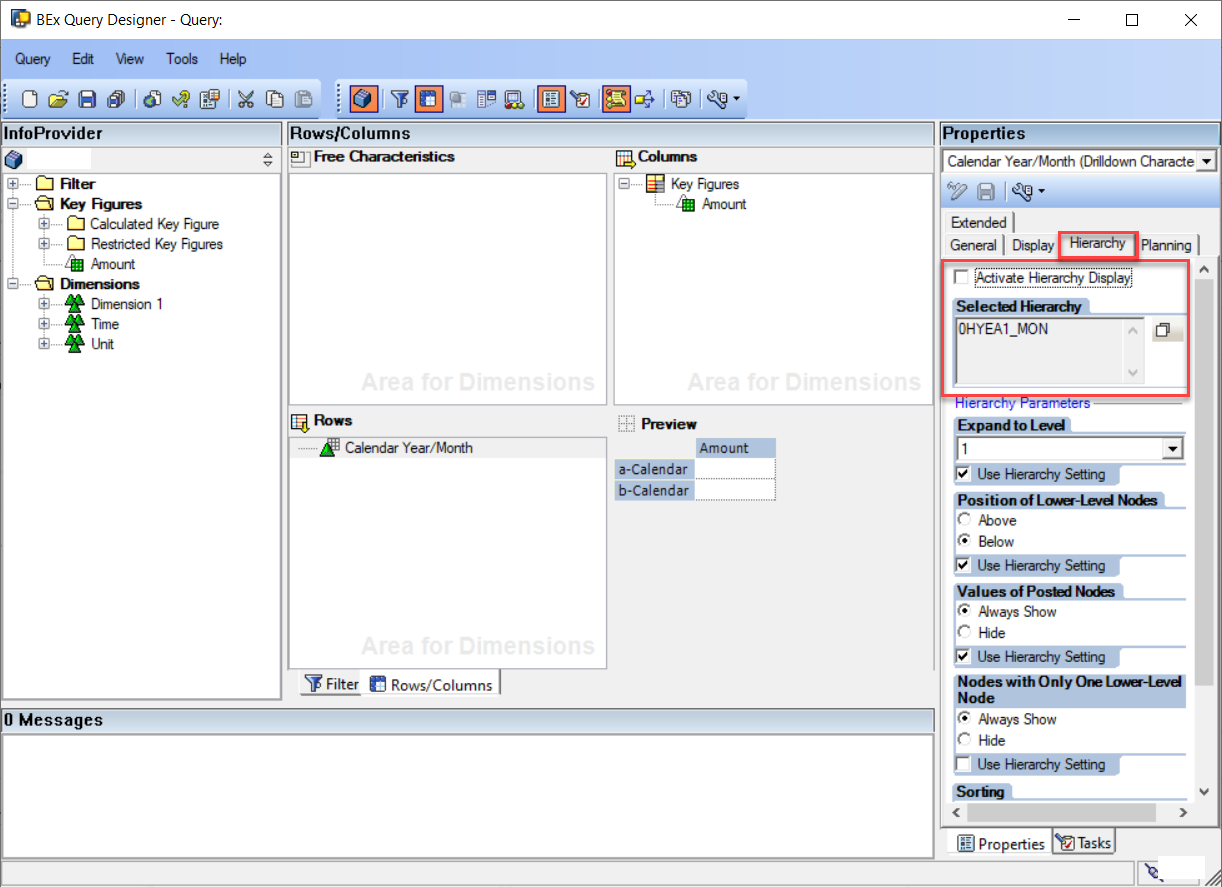

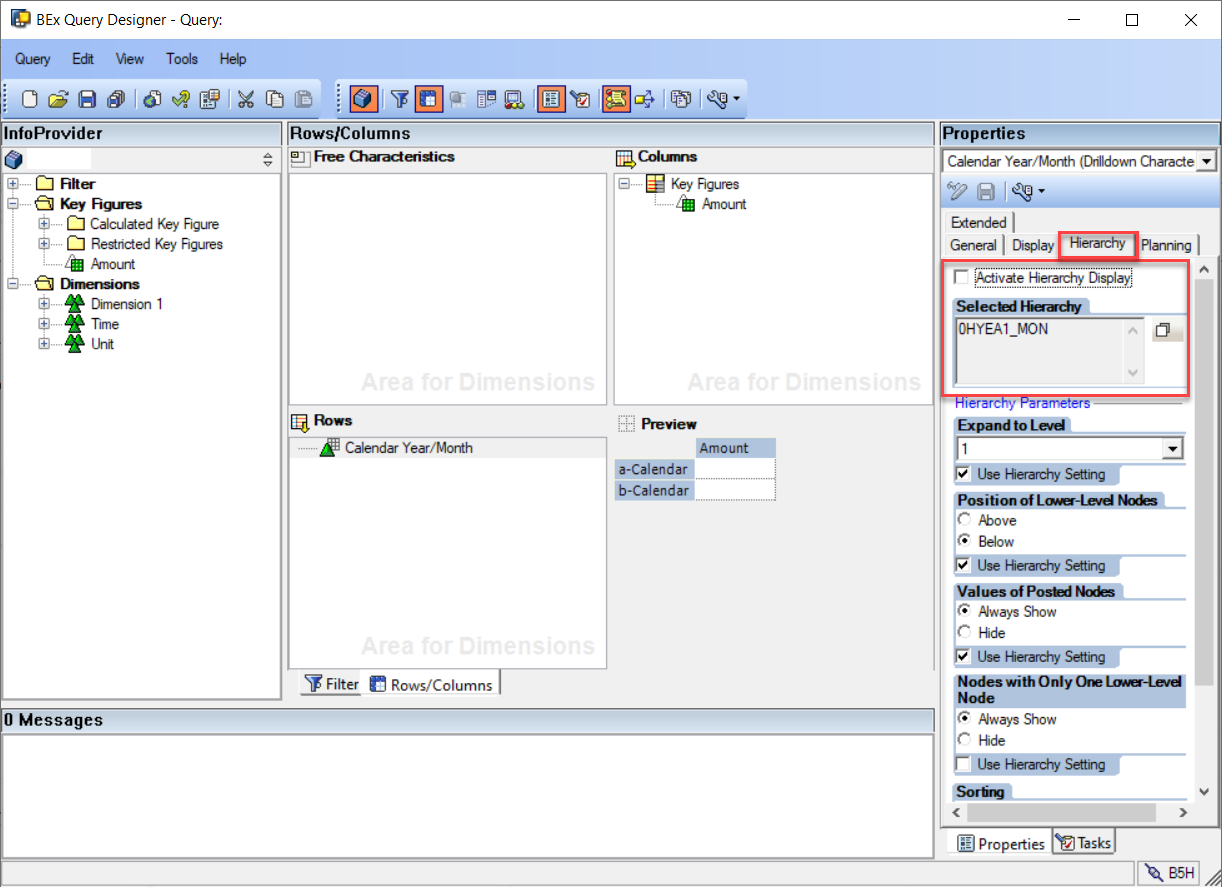

You selected a hierarchy for a dimension in  the query definition, but did not select the checkbox "Activate Hierarchy Display".

Then, create a model on this query and a story with table uses the model as the data source. The dimension is displayed as the selected hierarchy.

If you run the query in Analysis for Office, the dimension is displayed as flat presentation. The hierarchy will be used only in the filter dialog in this case.

Image/data in this KBA is from SAP internal systems, sample data, or demo systems. Any resemblance to real data is purely coincidental.


SAP Ananlytics Cloud 1.0

Reproducing the Issue

Run the story on SAC.


It is by deign.

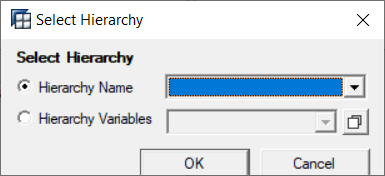

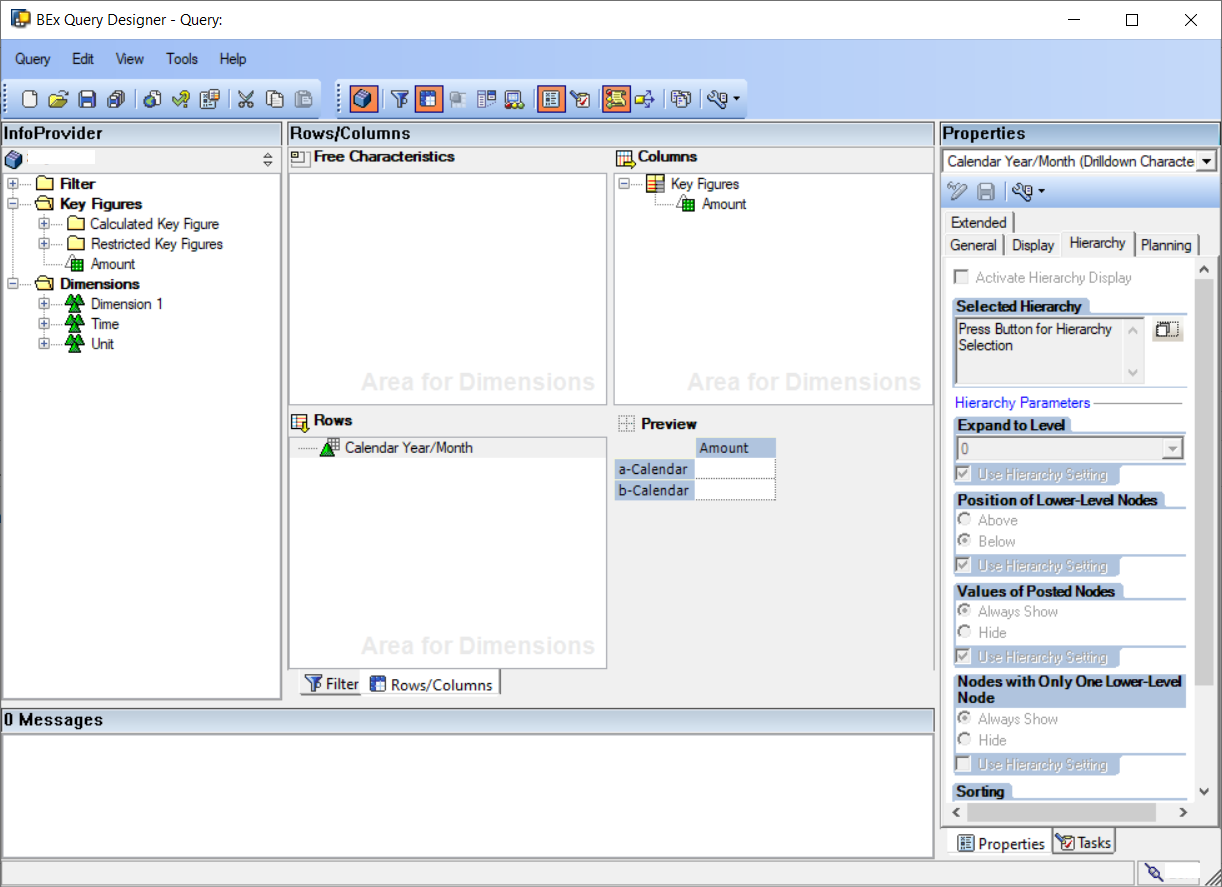

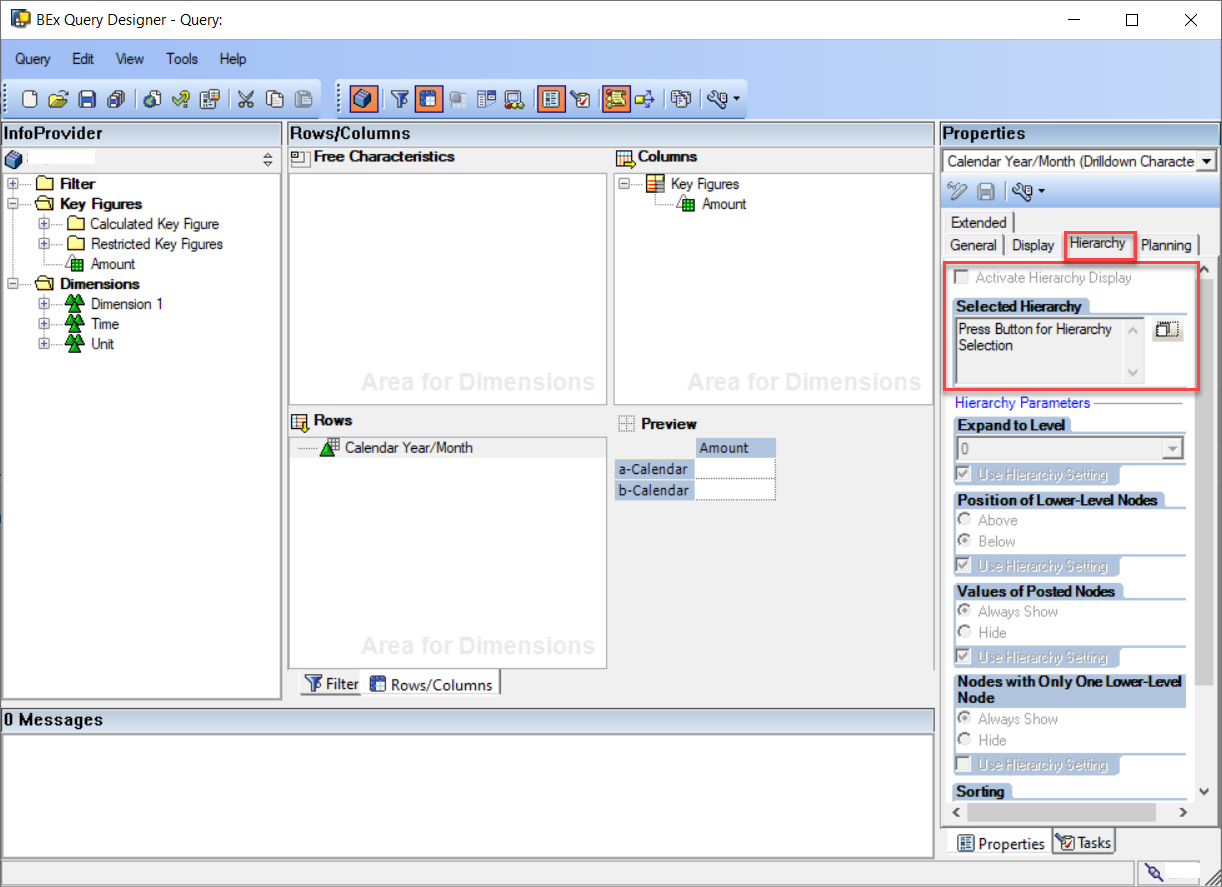

If you do not want to use the hierarchy, please delete the hierarchy in the query definition by clicking the value help button and select a blank value for "Hierarchy Name".


default hierarchy, default value of hierarchy, Query Designer, hierarchy definition , KBA , LOD-ANA-LDC-BW , SAC Live Data Connection BW , BW-BEX-OT-BICS-INA , BW INA provider , Problem


SAP Analytics Cloud 1.0
