SAP Knowledge Base Article - Public

3241349 - Cannot add more than 1 Input or Output in the Editor

Symptom


When I try to add more than one Input/Output to a BPMN-Diagram, I can't see option to add it (i.e. 3 dots on the right-hand side).



Resolution

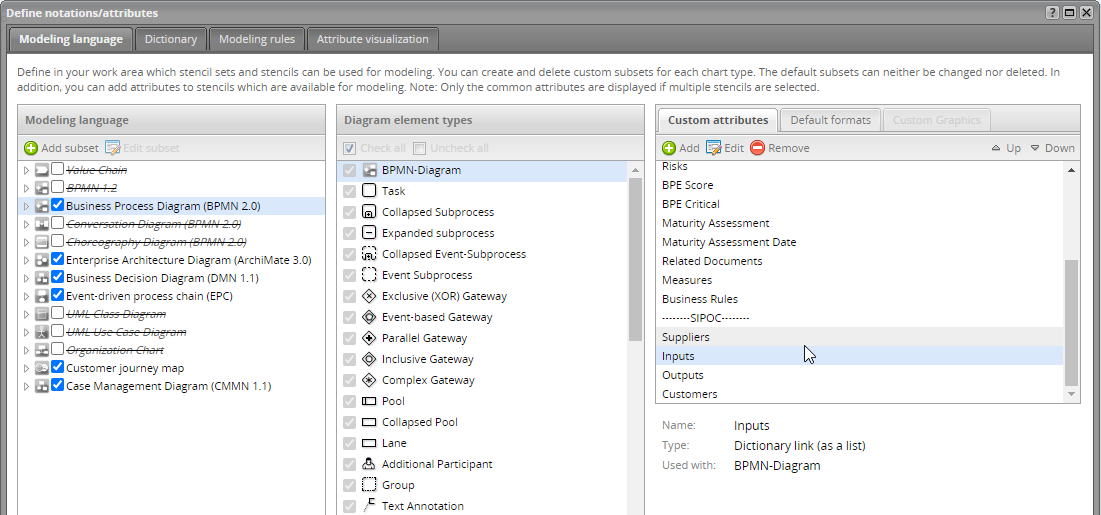

The 'Input' and 'Output' attributes may not be defined as a Dictionary link (as a list).
Please check that the Custom attributes have been configured correctly.

The source of the 'Input' and 'Output' Dictionary items is usually from the original Trial Workspace creation, where the folder 'Process Example' has been provided.
Included with these examples are Dictionary items, such as the 'Input' and 'Output' attributes.



Keywords

KBA , BPI-SIG-PM-DIC , Dictionary for SAP Signavio Process Manager , How To

Product

SAP Signavio Process Manager all versions ; Signavio Process Manager all versions
