SAP Knowledge Base Article - Public

3242298 - Setting the Default Font Size for Process Models

Symptom

I am an admin for my workspace and I want to change the default font size used across all process models from 12 to 24. How can I do that?



Image/data in this KBA is from SAP internal systems, sample data, or demo systems. Any resemblance to real data is purely coincidental.

Resolution

To set a default font size for all models going forward, please follow these steps:

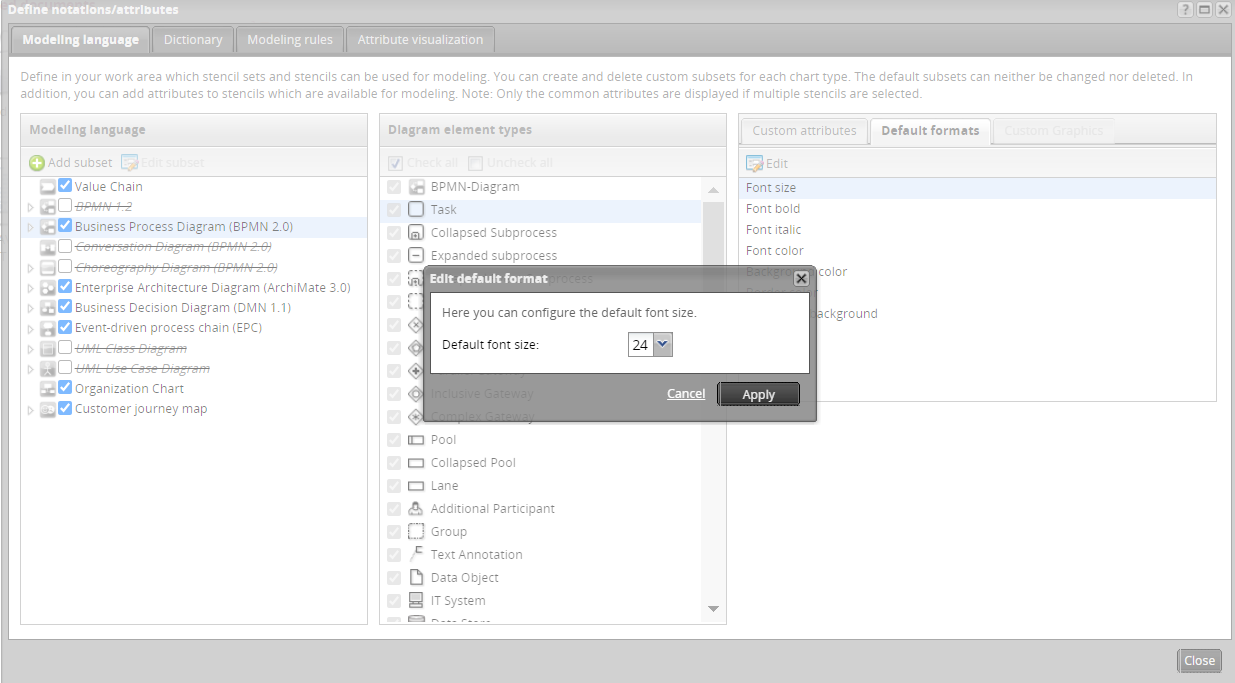

  1. Within the explorer, go to Setup -> Define notations/attributes
  2. Under the Modeling language tab, select Business Process Diagram (BPMN 2.0)
  3. Select the element type (so the "Task" element for example) -> Default formats -> Font size -> 24 (or other size that you want)

    Please repeat this process to adjust default font sizes for other elements in your process models, such as Gateways or Collapsed Sub-processes.


Keywords

KBA , BPI-SIG-PM-SET , Workspace Settings for SAP Signavio Process Manager , How To

Product

SAP Signavio Process Manager all versions ; Signavio Process Manager all versions
