3243448 - In the Process Characteristics Report in SAP Signavio Process Manager, can you tell me what the Included elements & Included attributes export options do?

In the 'Process Characteristics' Report in SPM, can you tell me what the 'Included elements' &' Included attributes' export options do?

Image/data in this KBA is from SAP internal systems, sample data, or demo systems. Any resemblance to real data is purely coincidental.

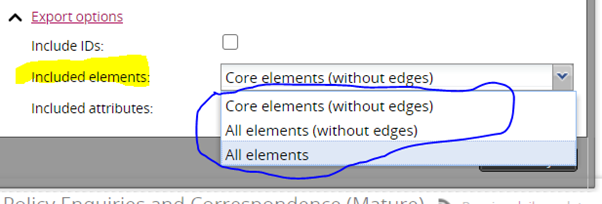

Included elements.

Reference: BPMN Core Elements: https://www.signavio.com/bpmn-introductory-guide/

• Core elements (without edges) - Includes BPMN Core Elements, except it will not report on the sequence/message flows (edges).
• All elements (without edges) - Includes all BPMN Elements, except it will not report on the sequence/message flows (edges).
• All elements - Includes all BPMN Elements and sequence/message flows (edges).

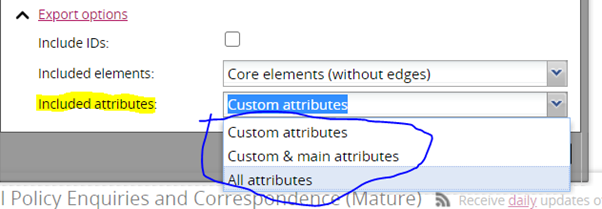

Included Attributes.

Reference: Custom Attributes Add and manage custom attributes

• Custom Attributes - Are attributes that you have created.
• Custom & Main Attributes - Are attributes you have created plus the main attributes.
• All Attributes - Are custom attributes and main attributes plus anything that doesn't full under those headings.

User manual for Process Characteristics Report: Process characteristics with element details report

process manager, Process Characteristics Report , KBA , BPI-SIG-CA-INT-PDF , PDF Import / Export for SAP Signavio , How To

SAP Signavio Process Manager all versions ; Signavio Process Manager all versions
