SAP Knowledge Base Article - Public

3277779 - How to Find Dependent Person Id or Related Person Id External

Symptom

How to find Dependent Person Id or Related Personid External

Image/data in this KBA is from SAP internal systems, sample data, or demo systems. Any resemblance to real data is purely coincidental.

Environment

  • SAP SuccessFactors HXM Suite
  • Report Canvas
  • Employee Central - Dependents Management

Resolution

Via Data Inspector

Example For user: 27000007

Step 1: Retrieve Person ID under: Table_PER_PERSON

  • Go to data inspector
  • Select: Table_PER_PERSON
  • Under Define Filter Criteria
  • select: Person ID External Equals userid
  • ( example:  Person ID External Equals 27000007)
  • click on Show Data
  • Result:  Person ID = 527

Step 2: Retrieve Related Person ID  under: Table_PER_PERSON_RELATION_T

  • Go to data inspector
  • Select: Table_PER_PERSON
  • Under Define Filter Criteria
  • Select: Person ID  Equals  Person ID
  • ( example:  Person ID External Equals 527)
  • click on Show Data
  • Result:  Related Person ID  = 4961

Step 3: Retrieve Person ID External or Dependent Person Id Under: Table_PER_PERSON

  • Go to data inspector
  • Select: Table_PER_PERSON
  • Under Define Filter Criteria
  • Select: Person ID  Equals  Related Person ID
  • ( example:  Person ID  Equals 4961)
  • click on Show Data
  • Result:  Person ID External or Dependent Person Id  = 527_d4961

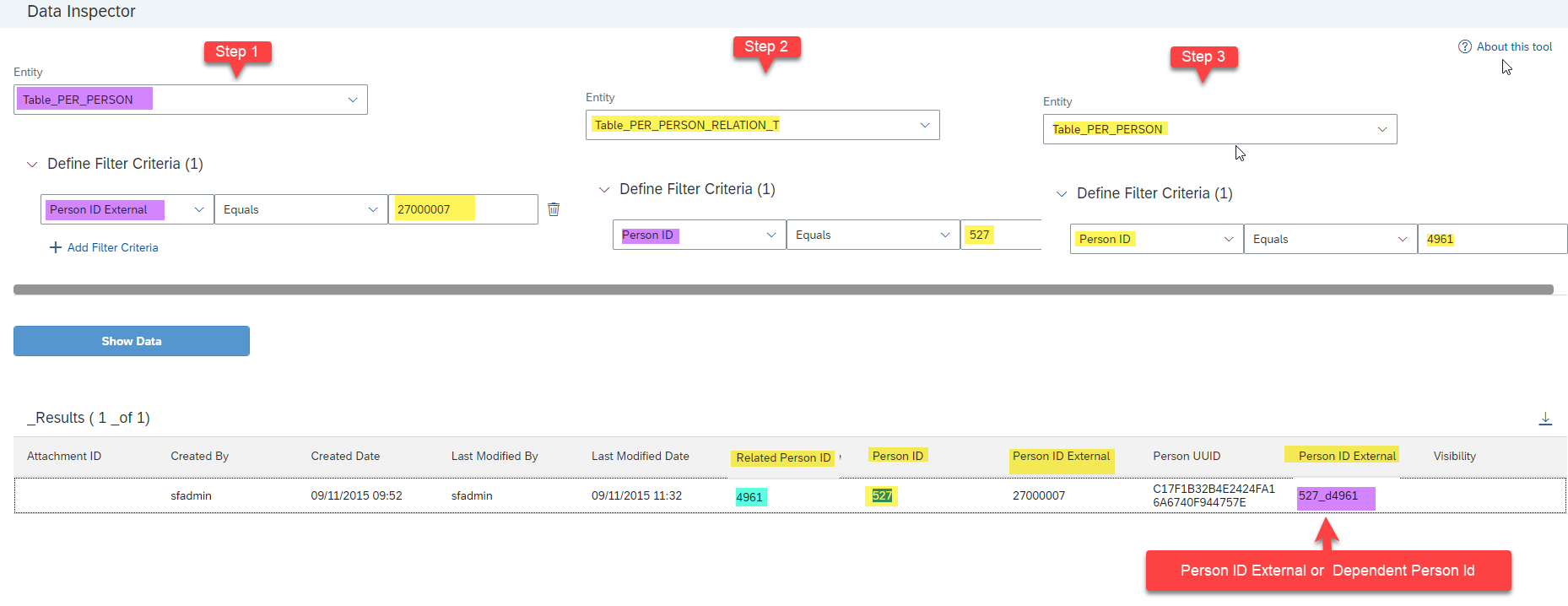

 View Data Inspector Summary result

Via Canvas Report

Create a New report

  1. Go to Report Center
  2. Click on Report Canvas -Then Select
  3. Give your report a name
  4. Mouse over table
  5. Click table and Drag down
  1. Click on: Edit Query
  2. Select Advance Reporting
  3. New
  4. OK

Step 1: Select Parent or Root table

  1. Person
  2. Select Person Child Table Personal Information
  3. Select: Person ID

 Step 2: Select Child Table Dependents

  1. Select: Effective Start date
  2. Select: Relationship (Picklist Label)

Step 3: Select Dependents Child Table Dependent Personal Info

  1. Select: Dependent Person ID

Step 4: Save Report

  1. Save Report
  2. Click Objects and View Report overview

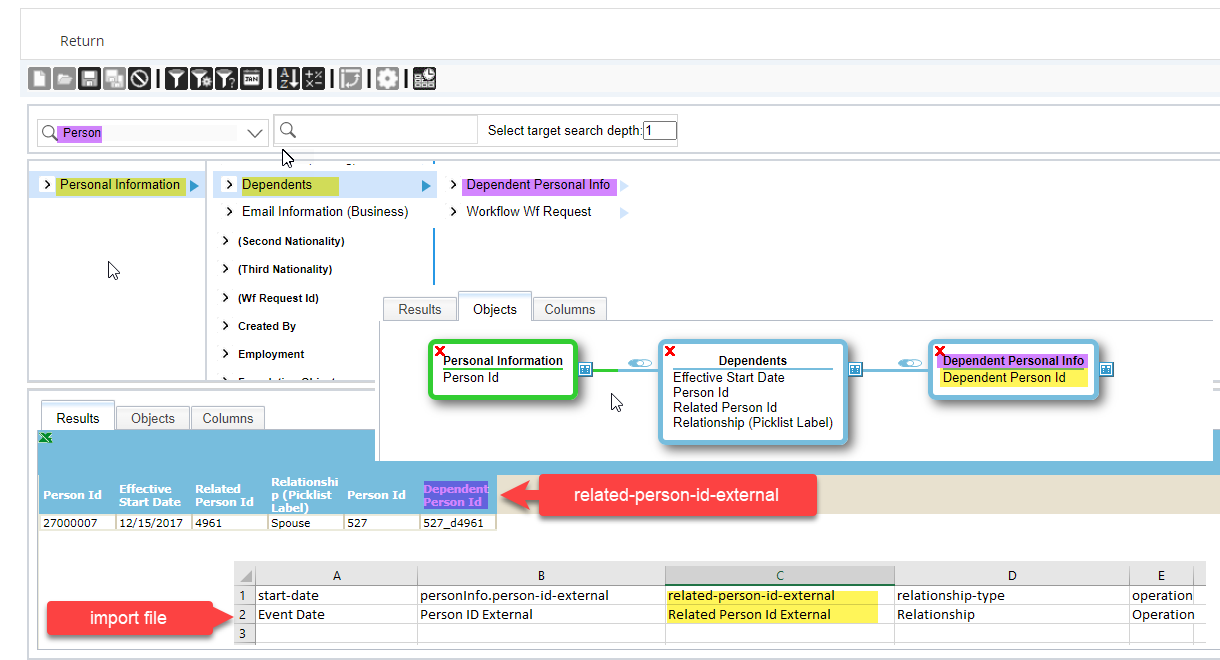

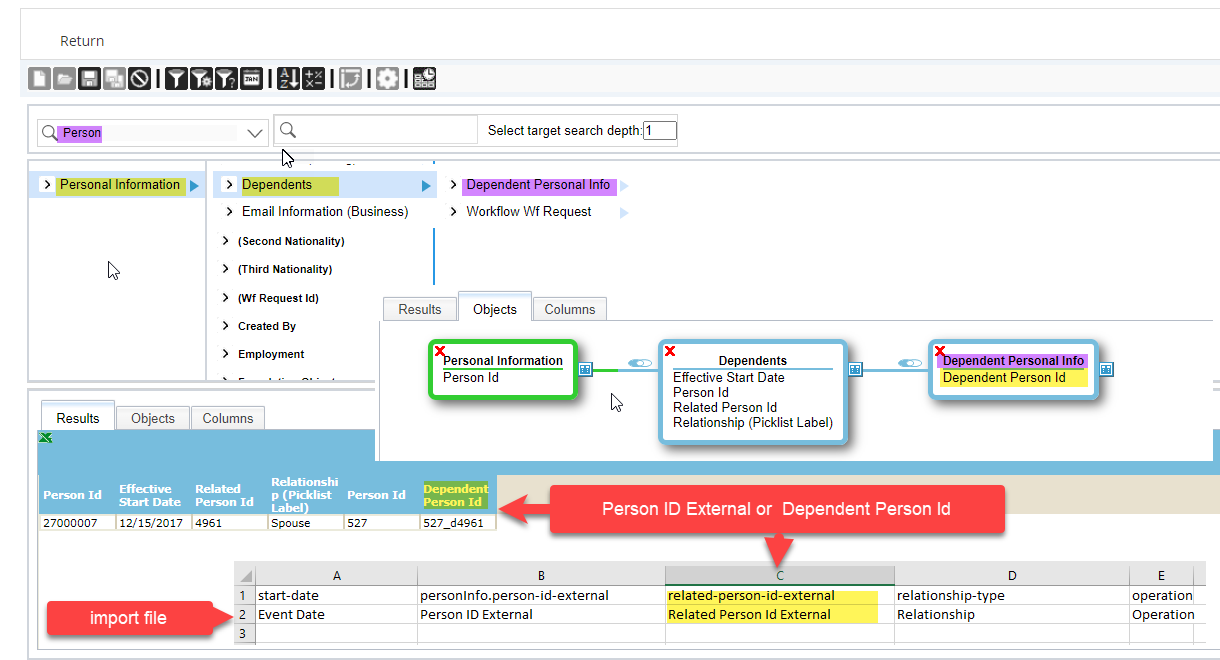

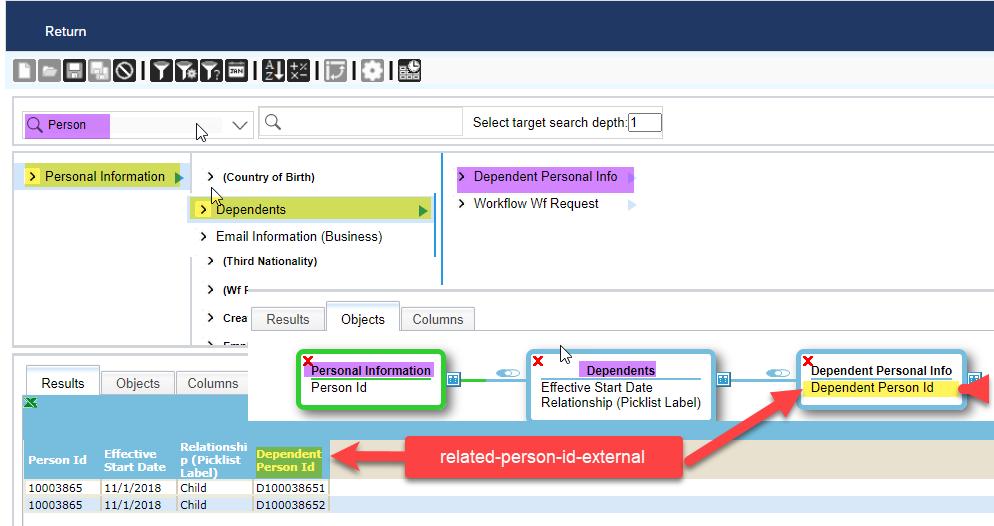

 View Canvas Report Summary result

Important: Save your canvas report: 2543169 - How to Save the Query in Report Center for future use
