3279695 - Housekeeping of HANA Backup failed because cannot allocate enough memory:OOM

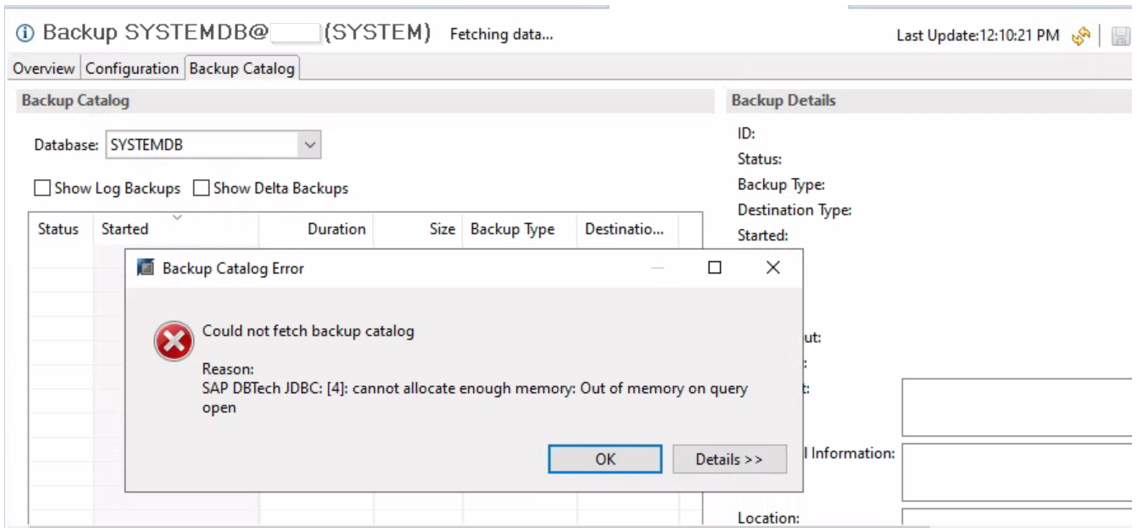

The Backup Catalog (log_backup_0.0.0.0) is to big in size and a housekeeping is not possible, because it runs always in the below OOM, if try to find out the Backup ID:

GLOBAL_ALLOCATION_LIMIT * = 659.27gb (707886465024b), SHARED_MEMORY = 7.23gb (7765000192b), CODE_SIZE = 2.24gb (2408046592b), OOM_RESERVATION_ALLOCATOR_SIZE = 96.14mb (100810752b)

PID=5243 (hdbnameserver), PAL=659.39gb (708020682752b), AB=2.29gb (2464198656b), UA=0, U=1.94gb (2089406950b), FSL=0b, FMC=0b
PID=5482 (hdbcompileserver), PAL=659.39gb (708020682752b), AB=203.51mb (213405696b), UA=0, U=137.22mb (143894829b), FSL=0b, FMC=0b, Blocked=810.47mb (849842176b)
PID=5485 (hdbpreprocessor), PAL=659.39gb (708020682752b), AB=205.72mb (215719936b), UA=0, U=121.23mb (127124362b), FSL=0b, FMC=0b
PID=5540 (hdbdpserver), PAL=659.39gb (708020682752b), AB=829.67mb (869978112b), UA=0, U=683.38mb (716583298b), FSL=0b, FMC=0b
PID=5546 (hdbindexserver), PAL=659.39gb (708020682752b), AB=3.16gb (3399426048b), UA=0, U=2.66gb (2864021543b), FSL=0b, FMC=0b
PID=5552 (hdbxsengine), PAL=659.39gb (708020682752b), AB=835.73mb (876335104b), UA=0, U=687.36mb (720755558b), FSL=0b, FMC=0b
PID=5549 (hdbindexserver), PAL=659.39gb (708020682752b), AB=4.78gb (5137350656b), UA=0, U=3.72gb (4000650306b), FSL=0b, FMC=0b
PID=5555 (hdbxsengine), PAL=659.39gb (708020682752b), AB=844.05mb (885059584b), UA=0, U=692.73mb (726384747b), FSL=0b, FMC=0b
PID=5543 (hdbindexserver), PAL=659.39gb (708020682752b), AB=633.33gb (680034480128b), UA=0, U=600.57gb (644860945539b), FSL=0b, FMC=0b
PID=5537 (hdbdocstore), PAL=659.39gb (708020682752b), AB=1.94gb (2088087552b), UA=0, U=1.71gb (1841258062b), FSL=0b, FMC=0b
PID=10673 (hdbwebdispatcher), PAL=659.39gb (708020682752b), AB=438.28mb (459579392b), UA=0, U=369.60mb (387554639b), FSL=0b, FMC=0b
PID=10667 (hdbdiserver), PAL=659.39gb (708020682752b), AB=217.30mb (227856384b), UA=0, U=143.03mb (149984393b), FSL=0b, FMC=0b
PID=10670 (hdbdiserver), PAL=659.39gb (708020682752b), AB=195.98mb (205504512b), UA=0, U=129.92mb (136241401b), FSL=0b, FMC=0b

Total allocated memory= 658.67gb (707250028544b)
Total used memory      = 622.99gb (668937852411b)
Sum AB                      = 697076981760
Sum Used                   = 658764805627
Heap memory fragmentation: 5

Top "M_HEAP_MEMORY" allocators (component, name, size). Ordered descending by exclusive_size_in_use.
 1: Monitoring & Statistical Data:              Pool/RowEngine/MonitorView/StatisticsMonitors/M_DEV_BACKUP_CATALOG_LOG_FILES 205.99gb (221189556992b) (512mb (536870912b) precharged, 2.42kb (2480b) in preparation)
 2: Monitoring & Statistical Data:              Pool/RowEngine/MonitorView/StatisticsMonitors/M_DEV_BACKUP_CATALOG_LOG       161.85gb (173789905408b) (256mb (268435456b) precharged, 1.48kb (1520b) in preparation)
 3: Monitoring & Statistical Data:              Pool/Statistics                                                              125.78gb (135063402240b)
 4: System:                                            Pool/BackupRecoveryAllocator                                                 93.60gb (100507560336b)



SAP HANA DB Version 2.0


KBA , HAN-DB-BAC , SAP HANA Backup & Recovery , Problem
