SAP Knowledge Base Article - Public

3294821 - Excel macro settings for using SAP Analysis for Microsoft Office

Symptom

The following Excel Macro settings are suggested to use with SAP Analysis for Microsoft Office.

Environment

SAP Analysis for Microsoft Office

Resolution

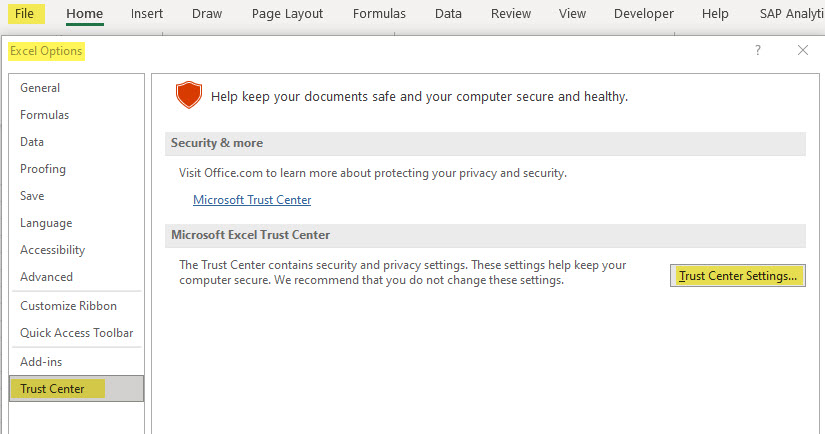

The Excel Macro settings can be accessed through the following steps:

  • File > Options > Trust Center > Trust Center Settings > Macro Settings

trust center.jpg

The suggested Excel macro setting for using SAP Analysis for Microsoft Office is as below:

macro setting.jpg

The security option concerning Excel 4.0 macros can either be set in the Trust Center dialog of Excel ("Enable Excel 4.0 macros when VBA macros are enabled") or using the registry key (e.g. as part of a group policy).

With this new security feature Microsoft Excel has introduced an inconsistent behaviour:

  • If the old Excel 4.0 macros was desabled via the Trust Center dialog the AO macros are not blocked and everything is running fine.

  • But if the old Excel 4.0 macros was disabled via the registry key (e.g. as part of a group policy), Excel also blocks the AO macros - although AO does not use this old Excel 4.0 macro technology.
    This is known regression issue of Microsoft Excel which has been fixed in version > 2308.
    Therefore please have a look at the overview of different Office channels: https://learn.microsoft.com/en-us/officeupdates/update-history-microsoft365-apps-by-date and get a newer version > 2308.

Keywords

macro, VBA, disable, Excel 4.0, security, XLM macros, Excel 4.0 macros, xl4macrooff, Cannot run the macro, CallbackAttributePlanningCellDropDownIconClicked, CallbackHeaderCellDropDownIconClicked, CallbackFddIconClicked, The macro may not be available, all macros may be disabled. , KBA , BI-RA-AO-XLA , Excel Addin , How To

Product

SAP Analysis for Microsoft Office all versions
