3295116 - How to get a record in a 'one to many' relationship via Integration Center

How to get a record in a one-to-many relationship via Integration Center.

Image/data in this KBA is from SAP internal systems, sample data, or demo systems. Any resemblance to real data is purely coincidental.

Will use Pay Component Amount as example to explain how to get a record in a one-to-many relationship via Integration Center.

Precondition:

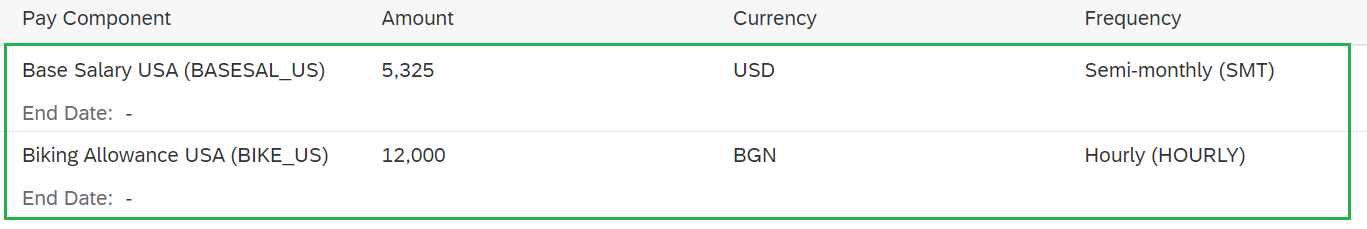

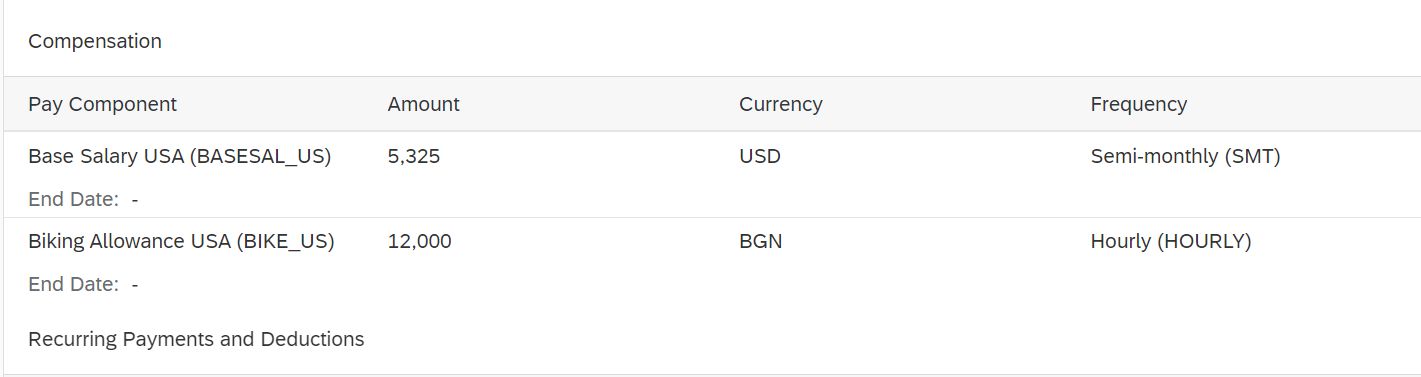

User has two Pay Component records:

Steps of how to:

1. Create a "Calculated Field" in the Configure Field section on Integration Center.

2. Set the start entity of Integration Center job as EmpEmployment,

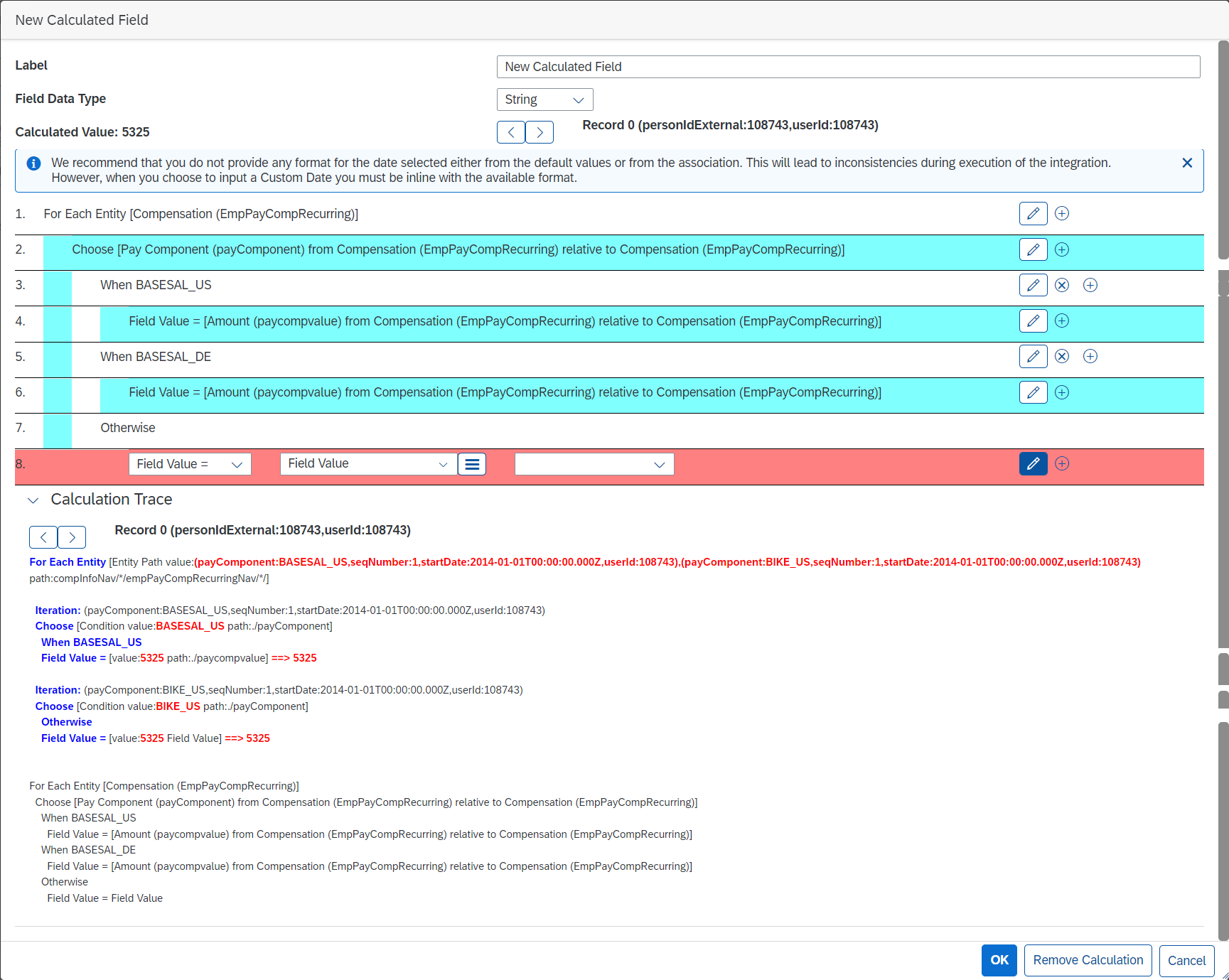

3. Use the following calculation logic to get the Amount value for BASESAL_US under compInfoNav/empPayCompRecurringNav.

For Each Entity [Compensation (EmpPayCompRecurring)]
  Choose [Pay Component (payComponent) from Compensation (EmpPayCompRecurring) relative to Compensation (EmpPayCompRecurring)]
    When BASESAL_US
      Field Value = [Amount (paycompvalue) from Compensation (EmpPayCompRecurring) relative to Compensation (EmpPayCompRecurring)]
    When BASESAL_DE
      Field Value = [Amount (paycompvalue) from Compensation (EmpPayCompRecurring) relative to Compensation (EmpPayCompRecurring)]
    Otherwise
      Field Value = Field Value

Please Note:

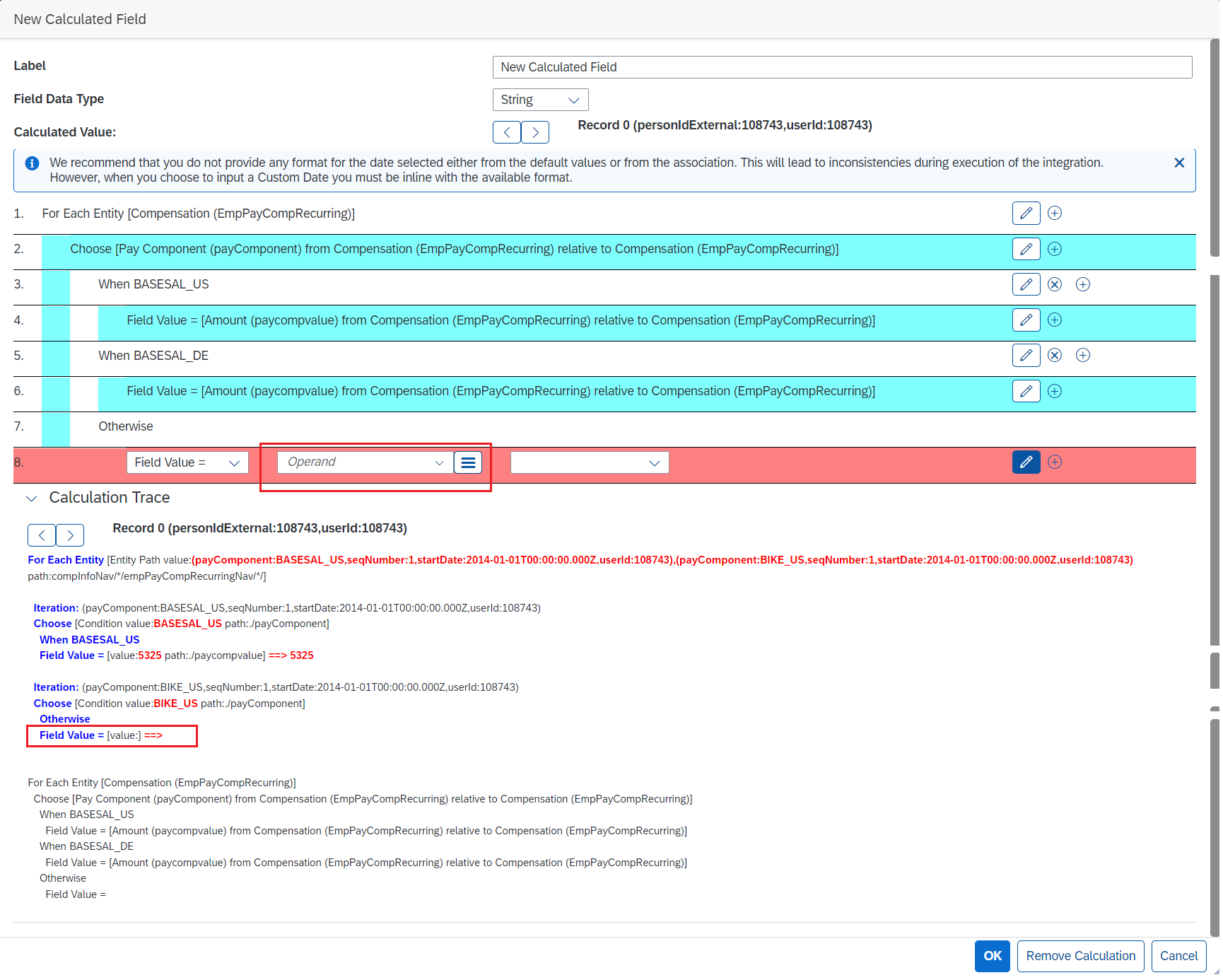

1. 'Field Value = Field Value' is required under Otherwise section, the reason for this is unordered one-to-many records, if data you don't want to go to the second iteration, the null value will be returned. e.g.

2. In the case of one-to-one relational entities, it is more appropriate to start the calculation with the "Choose" option (e.g. EmpJob -> eventReasonNav)
