Symptom
After printing a test page by clicking the "Test Print" button in CPM for PI, the print request reaches the OS print queue but nothing is printed on printer level.
*Image/data in this KBA is from SAP internal systems, sample data, or demo systems. Any resemblance to real data is purely coincidental.*
Environment
- S/4HANA Public Cloud
- Cloud Print Manager for PI (CPM for PI)
Reproducing the Issue

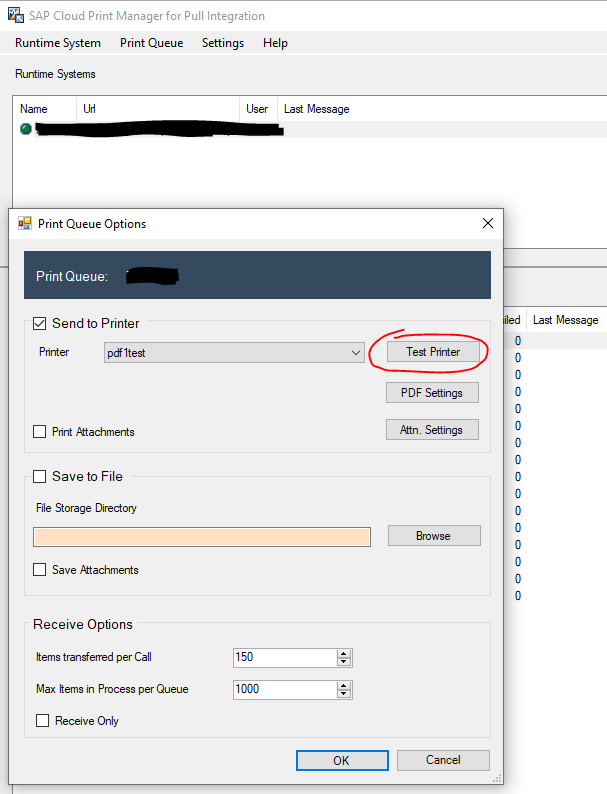

- Select a Print Queue in CPM for PI.
- Double click it to open its Print Queue Options.
- Select a printer and click on "Test Printer" button:
Cause
The "Test Printer" button in CPM for PI will send raw PDF data to printer.
Some printers do not support such raw PDF data.
If this is the case, nothing will be printed by the printer.
Resolution
This is the design of CPM for PI.

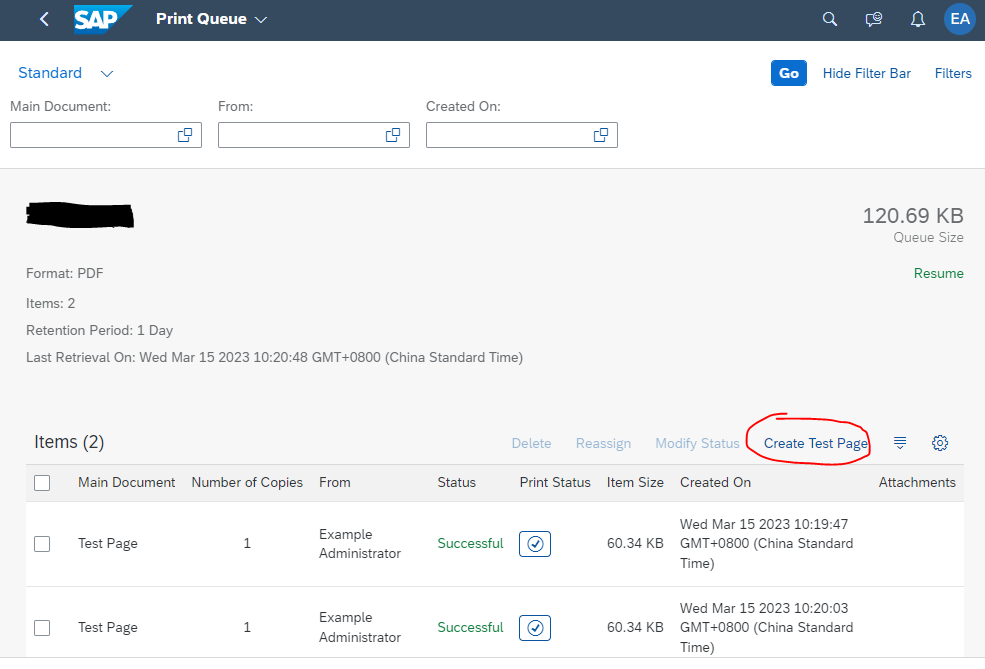

Create a test page in Print Queue in the S/4HANA Cloud instead:
- Open the Fiori App "Maintain Print Queues"
- Select a Print Queue and click on it.
- Click on "Create Test Page":
Keywords
CPM for PI, cloud print manager for PI, test printer, create test page, test print, test printing, cloud print queue , KBA , BC-CCM-PRN , Print and Output Management , How To
