3313884 - "CTS Communication System" and "CTS Upload System" details hang in HALM with "An internal error occurred" or "Unknown Error"

Symptom

When you navigate to the SETTINGS tab in HANA Application Lifecycle Management (HALM):

  • http://<FQDN>:80<NR>/sap/hana/xs/lm/?page=SettingTab
    OR
  • https://<FQDN>:43<NR>/sap/hana/xs/lm/?page=SettingTab

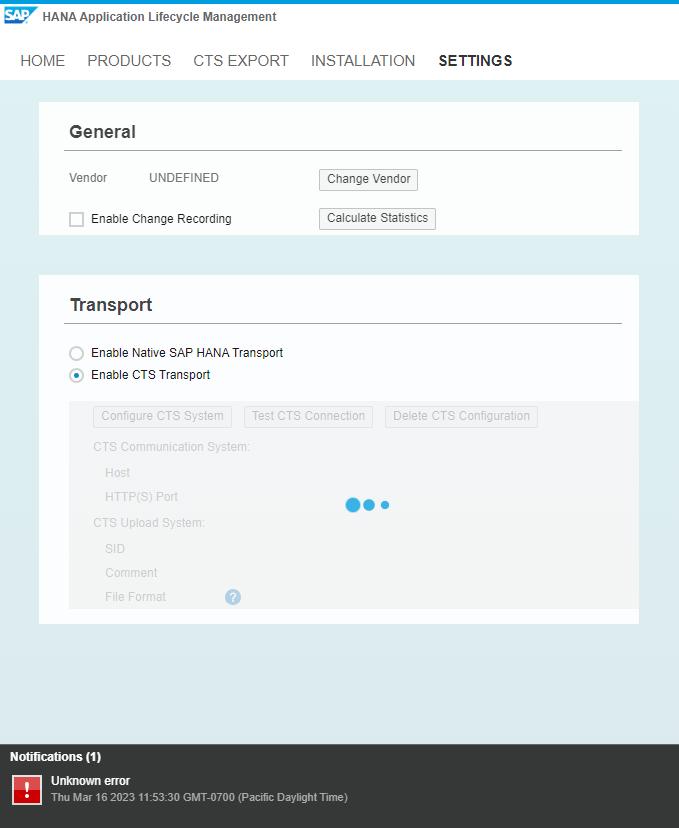

the CTS Communication System and CTS Upload System details never finish loading:

You may see either:

  • "An internal error occurred"
    OR
  • "Unknown Error"

Note: Due to the nature of the issue, it may take a considerable amount of time for either exception to appear after navigating to the SETTINGS tab in HALM. At a technical level, connection attempts to reach the CTS system will have to timeout before an exception becomes visible in HALM.

---

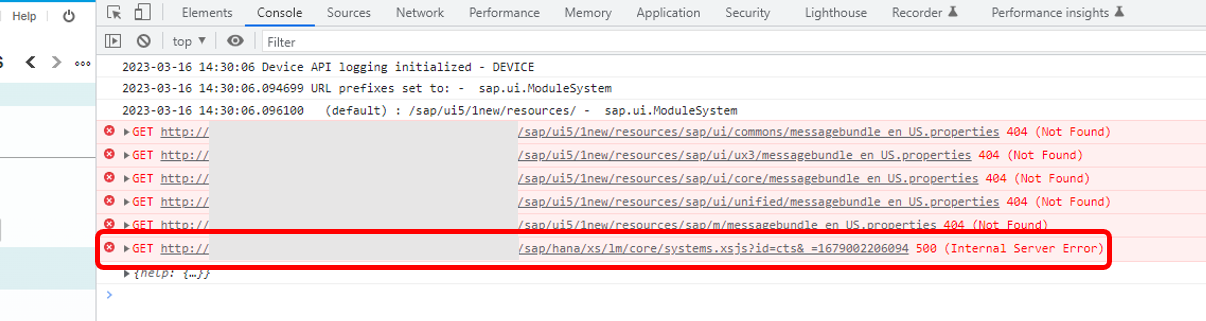

In the browser developer tools, you will see a GET request to service endpoint:

  • http://<FQDN>:80<NR>/sap/hana/xs/lm/core/systems.xsjs?id=cts&_=<number>
    OR
  • https://<FQDN>:43<NR>/sap/hana/xs/lm/core/systems.xsjs?id=cts&_=<number>

Image/data in this KBA is from SAP internal systems, sample data, or demo systems. Any resemblance to real data is purely coincidental


Read more...

Environment

SAP HANA, platform edition

Product

SAP HANA, platform edition all versions

Keywords

sap, hana, xs, lm, db, SYSTEM, SYSTEM_STATE, SYSTEM_ID, SAP_XS_LM, CTS , KBA , HAN-LM-APP , SAP HANA Application Lifecycle Management , Problem
