3317168 - Even you have set EXPOSURE_SYSTEM_ALIASES_MODE to CLEAR, you still can see the system alias in BTP Launchpad

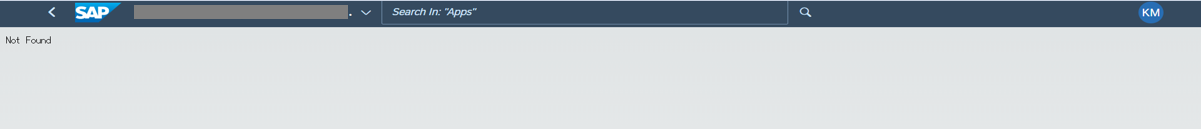

You are using Embedded deployment mode - the SAP Fiori front-end server is deployed into the AS ABAP of a back-end system. Parameter EXPOSURE_SYSTEM_ALIASES_MODE to is set to CLEAR already. As per Manage Content Providers (On Premise), you need not to do Alias Mapping. But if you don't do it, you will see "Not Found" error in BTP Launchpad when clicking the tile of WebGUI or WebDynpro application which are integrated from On Premise ABAP system.

You can see the system alias in BTP Launchpad, and after you do Alias Mapping, the application can be accessed successfully.

You want to know the reason why you still can see the system alias even you have set EXPOSURE_SYSTEM_ALIASES_MODE to is set to CLEAR.

• SAP Build Work Zone, standard edition

Embedded deployment, Hug deployment, EXPOSURE_SYSTEM_ALIASES_MODE, Alias Mapping, Not Found,  , KBA , EP-WZ-BCI , Business Content DesignTime Visualization , CA-FLP-ABA , SAP Fiori Launchpad ABAP Services , Problem
