Symptom

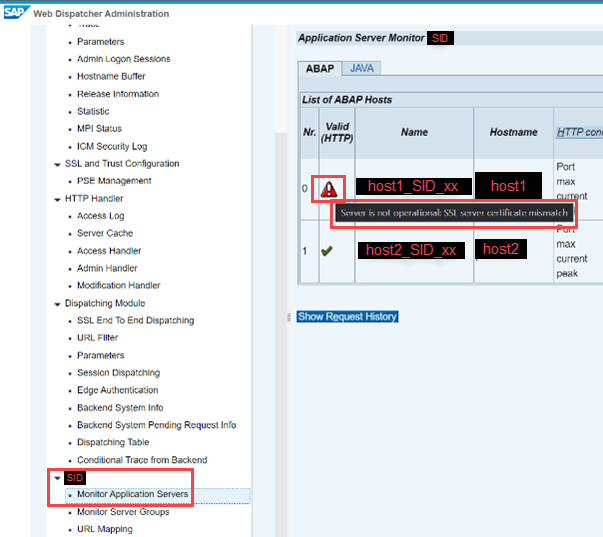

When accessing the SAP Web Dispatcher Web Admin UI and navigating to the "SID -> Monitor Application servers" menu tree on the left ("SID" stands for the System ID of the affected backend system), one or more instances show a red triangle. When hovering the mouse of the triangle, the following message appears: "Server is not operational: SSL server certificate mismatch".
The Web Dispatcher trace file (dev_webdisp) shows entries similar to the ones below:
[Thr ...] <<- ERROR: SapSSLSessionStartNB(sssl_hdl=7f1e90151710)==SSSLERR_SERVER_CERT_MISMATCH
[Thr ...] *** ERROR => SSL handshake with [hostname:port] failed: SSSLERR_SERVER_CERT_MISMATCH (-30)
[Thr ...] Server certificate does not match supplied TargetHostname (rfc2818 section 3.1)
Read more...
Environment
- SAP Web Dispatcher
Product
Keywords
KBA , BC-CST-WDP , Web Dispatcher , BC-CST , Client/Server Technology , BC-SEC-SSL , Secure Sockets Layer Protocol , BC-SEC-SSF , Secure Store and Forward , Problem
