SAP Knowledge Base Article - Public

3345979 - How to check which authentication is used in the Boomi Connector - SuccessFactors – Partner connection?

Symptom

  • In the Boomi Connector - SuccessFactors – Partner connection, how to check which authentication is used?
  • Understand whether HTTP Basic authentication or OAuth 2.0 authentication is being utilized.


Image/data in this KBA is from SAP internal systems, sample data, or demo systems. Any resemblance to real data is purely coincidental.

Environment

  • DELL Boomi Platform
  • SuccessFactors ODATA API
  • SuccessFactors SFAPI

Reproducing the Issue

  1. Access the Boomi Connector for SAP SuccessFactors Partner connection.
  2. Check the authentication settings to determine if HTTP Basic authentication or OAuth 2.0 authentication is being used.

Cause

Authentication settings in the Boomi Connector determine whether HTTP Basic authentication or OAuth 2.0 authentication is used.

Resolution

With the 2H 2020 Release of the SAP SuccessFactors application, we have announced the sunset of HTTP Basic Authentication for API calls (both SFAPI & OData).

With 1H 2021 SuccessFactors release, new enhancement has been done for SuccessFactors Connector in Boomi to support OAUTH authentication for OData API call.

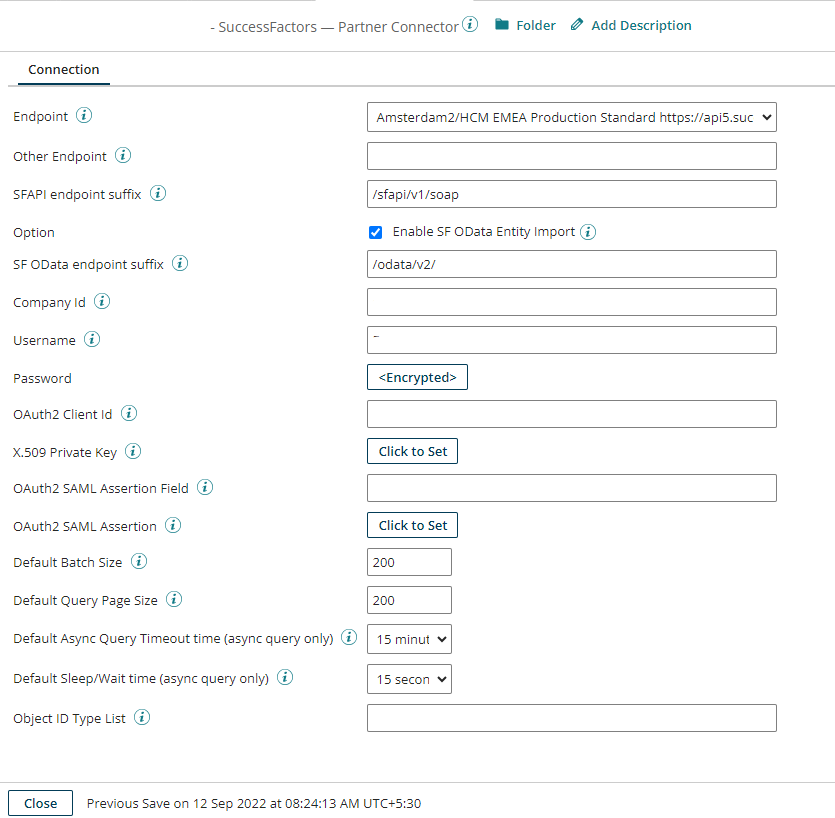

Image of the SuccessFactors-Partner Connector (Boomi)

How to Identify the Authentication Type in SuccessFactors-Partner Connector (Boomi)

  1. Basic Authentication:
    1. In the connector, a Valid Username will be mentioned.
    2. Password will be in encrypted format
  2. Oauth 2.0
    1. If you check in the SuccessFactors-Partner Connector (Boomi) the below details will be mentioned.
      • OAuth2 Client Id
      • X.509 Private Key
      • OAuth2 SAML Assertion Field
      • OAuth2 SAML Assertion

**Note: SF OAuth connection in Boomi is only supported when using SuccessFactors connector, for HTTP connector it's not supported.

See Also

• 2978172 - OAUTH authentication mode in Boomi for SuccessFactors Connector (SuccessFactors-Partner Connector)

• 2951815 - New version of SAP SuccessFactors connector release in DELL Boomi with new feature as OAUTH authentication mode SFAPI/ODATA API

• Using SAP SuccessFactors Boomi Connectors

Keywords

Boomi, OAUTH, authentication, V2, odata, connection, sf, Successfactors, SuccessFactors-Partner Connector, SAP SuccessFactors, Boomi connector, OData API, SFAPI, OAuth2, HTTP Basic authentication, SuccessFactors connection, SuccessFactors integration, authentication settings, SAP API, connector configuration, authentication modes

, KBA , LOD-SF-INT-BPI , Dell & Boomi Infrastructure , How To
